Project Prefab House Light Gauge Steel Framing System Modular Home Kits

Jebel ali villas

4 bedrooms 6 bathrooms 2 living room 1kichen 509.56m²

Our luxurious two-story residential design is the perfect choice for contemporary Australians. You can have our two-story Residence: a comfortable and spacious residence without sacrificing any valuable outdoor space. In the dark blue smart house, our multi-storey building design scheme provides you with a flexible family life, harmonious, well lit areas and charming pedestrian flow, making daily life easy.

Collect inspiration from our beautiful 2-story residence and find the perfect architectural design for the 2-story residence and the residence suitable for your lifestyle. Today, chase your dream, choose the perfect location, and choose from our luxurious 2-story residence. The dark blue double-layer residential design brings your dream home closer.

Quick Detail:

Model: 4-bedroom Villa-G2
Ground Floor:142.55㎡
First Floor Area:157.27㎡
Garage-Covered:46.80㎡
Balcony/Terrace/Porch-GF:10.13㎡
Balcony/Terrace-First Floor:26.14㎡
Balcony/Terrace-Second Floor:37.28㎡
Total Built-up Area:481.46㎡
Garage with Pergola:28.10㎡
Total Area:509.56㎡

Description:

Main structure: Light Steel

Wall material: ALC panel/fiber cement cladding+MGO board/gypsum board

Insulation material: Insulation material

Structure: Steel Frame

Ceiling material: MGO board/gypsum board

Floor/foundation material: laminate flooring/wooden/PVC carpet

Door: steel security door/WPC or plywood door

Window: aluminum alloy/PVC

Roofing: EPS sandwich panel/steel roofing/asphalt shingle

Other fittings: toilet, washbasin, shower, kitchen, etc.

Lifetime: 100 years of structure

Applications: House, Villa, etc



Product Description

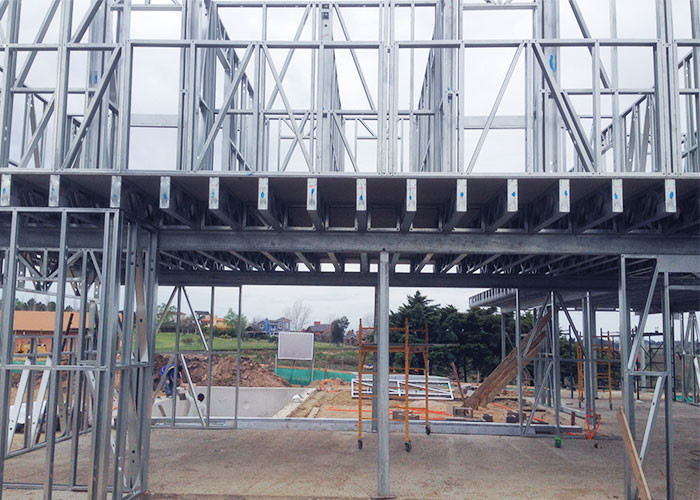

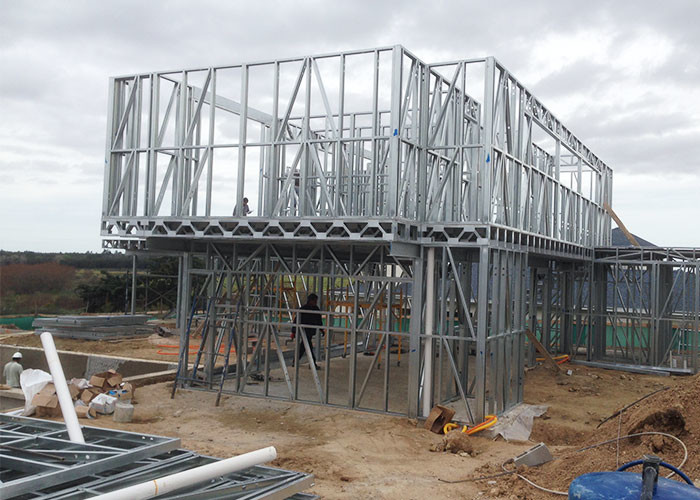

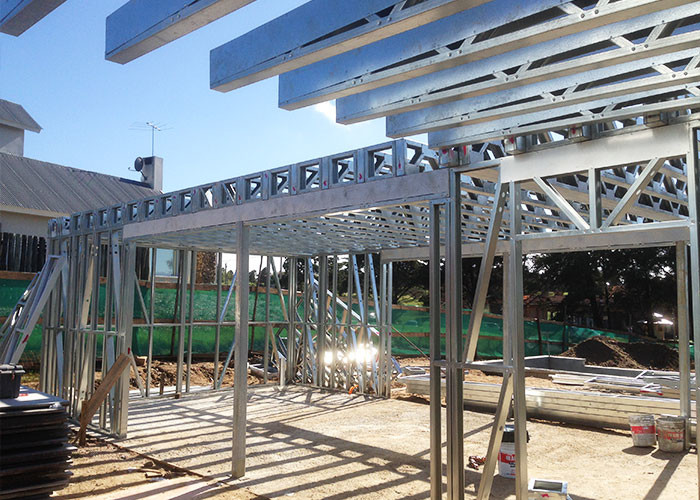

DeepBlue steel structural prefab villa is based on a light steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4 workers. The materials are the following:

1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard. the structure can be design to resist 50m/s wind and 9degree earthquake.

2. Roof structure: 89mm light gauge steel truss system.

3. Chassis: 89mm light gauge steel flooring chassis 4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, PVC carpet, etc. 5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration 6. interior lining: 9m fiber cement board,water-proof,termite-proof, security and healthy

7. ceiling: 8mm PVC ceiling panel

8. insulation: 89mm glass wool insulation with good soundproof performance.

9.windows: PVC sliding windows.

Company Introduction:

Founded in 2009, Deepblue Smarthouse is a high-tech enterprise integrating design, manufacturing, sales, logistics, and installation into a seamless one-stop service. Committed to providing safe, comfortable, and affordable homes, we have successfully delivered large-scale overseas real estate and resort projects, with products exported to 60+ countries and NGOs. Backed by 81 patents and numerous design awards, we have built over 10,000 homes worldwide. Powered by advanced equipment, a professional team, and a culture of continuous training, we remain steadfast in our core promise: putting customers first.

We specialize in the design and manufacture light steel frame house, include a light steel frame villa, modular house, apartment, resort, tiny house, etc.

We have a new large-scale processing center and modern production workshop to produce high-quality products in strict accordance with technical specifications and quality control, ensuring the accuracy of our products.
