Prefabricated Light Steel Prefab Bungalow Homes / Bungalow House For Living

Prefabricated Light Steel Prefab Bungalow Homes / Bungalow House For Living

    • Prefabricated Light Steel Prefab Bungalow Homes / Bungalow House For Living
    • Prefabricated Light Steel Prefab Bungalow Homes / Bungalow House For Living
    • Prefabricated Light Steel Prefab Bungalow Homes / Bungalow House For Living
    • Prefabricated Light Steel Prefab Bungalow Homes / Bungalow House For Living
    • Prefabricated Light Steel Prefab Bungalow Homes / Bungalow House For Living
    • Prefabricated Light Steel Prefab Bungalow Homes / Bungalow House For Living
  • Prefabricated Light Steel Prefab Bungalow Homes / Bungalow House For Living

    Product Details:

    Place of Origin: NINGBO,CHINA
    Brand Name: DEEPBLUE
    Certification: AS/NZS,UL,AISI,
    Model Number: Allendale24

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: 200-500 USD/SQM
    Packaging Details: Bare bundle / 40HQ
    Delivery Time: 30-45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 12000 houses/year
    Contact Now
    Detailed Product Description
    Main Structure: Light Gauge Steel Wall Material: ALC Panel/fibre Cement Cladding+MGO Board/gypsum Board
    Insulation Material: Glass Wool/EPS/XPS/PU Sandwich Panel Ceiling Material: MGO Board/gypsum Board
    Floor/foundation Material: Laminate Flooring/wooden/PVC Carpet Roofing: EPS Sandwich Panel/steel Roofing/asphalt Shingle
    High Light:

    prefab home kits

    ,

    bungalow modular homes

    Cheap and fine prefabricated light steel bungalow house for sale



    detailed information:

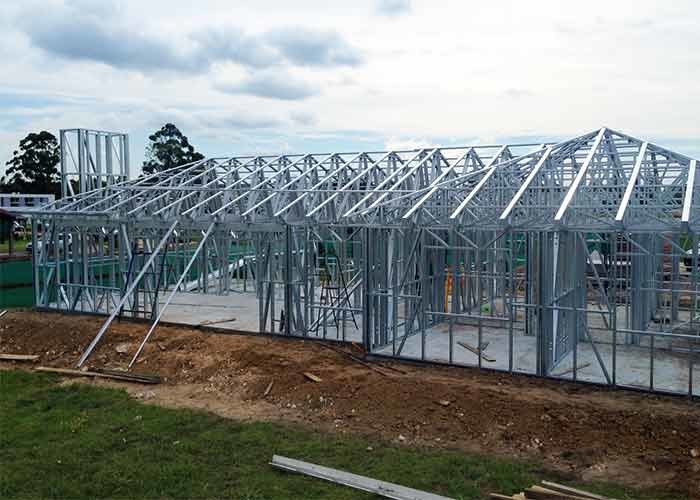

    Main structure: Light Gauge Steel
    Wall material: ALC panel/fiber cement cladding+MGO board/gypsum board
    Insulation material: glass wool/EPS/XPS/PU sandwich panel
    Ceiling material: MGO board/gypsum board
    Floor/foundation material: laminate flooring/wooden/PVC carpet
    Door: steel security door/WPC or plywood door
    Window: aluminum alloy/PVC
    Roofing: EPS sandwich panel/steel roofing/asphalt shingle
    Other fittings: toilet, washbasin, shower, kitchen, etc
    Lifetime: 100 years for structure.



    Name Bungalow homes Application Bungalow homes for a living
    Color depend on customer’s request Feature 1.earthquake, cyclone proof
    2.100 years life
    3.green, Energy save
    Material light steel and other parts material Certificate CE,ISO,SAA,ETC



    The floor plan:


    Prefabricated Light Steel Prefab Bungalow Homes / Bungalow House For Living 0Prefabricated Light Steel Prefab Bungalow Homes / Bungalow House For Living 1Prefabricated Light Steel Prefab Bungalow Homes / Bungalow House For Living 2

    MEASUREMENTS
    Ground Floor 18.9sq 175.3㎡
    Garage 3.7sq 34.8㎡
    Outdoor Living 1.2sq 10.7㎡
    Porch 0.3sq 3.2㎡
    Total Area 24.1sq 224.0㎡

    Minimum Lot Width 14.0m
    Home Length 23.3m
    Home Width 12.2m



    Why Choose Light Gauge Steel Structure?


    1) Lifetime for structure: 100 years.
    2) Earthquake resistance: mix more than 8 grades.
    3) Wind resistance: max 60m/s.
    4) Fire resistance: all the materials used can be fire-resistant.
    5) Snow resistance: max 2.9KN/m²as required
    6) Heat insulation: 100 mm in thickness can match 1 m thickness of the brick wall.
    7) High acoustic insulation: 60db of exterior wall 40db of interior wall
    8) Insect prevention: Free from the damages by insects, such as white ants
    9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
    10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
    11) Installation: the average is one worker one day install one SQM.
    12) Installation guide: dispatch engineer to guide on site.


    Design Code:


    1) AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
    2) AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
    3) BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold formed thin gauge sections published by BSI in the UK.
    4) ENV1993-1-3 means Euro code 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.



    Our Services:


    If You Need: prefabricated kit home; prefab kit home. steel structure homes.steel frame house

    Only Need You To Provide Us: house area, how many floor and bedrooms, luxury or normally, or low-cost configuration.

    We Can Provide You: villa; bungalow; low-cost house; granny flat; apartment etc. many style house.
