Cheap Home Prefabricated Light Steel System House Single Family Home With Garage
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Light Gauge Steel | Wall Material | Alc Panel/fiber Cement Cladding+MGO Board/gypsum Board |
|---|---|---|---|
| Insulation Material | EPS/XPS/PU Sandwich Panel Or Glass Wool | Floor/foundation Material | Laminate Flooring/wooden/PVC Carpet |
| Life Time | 100 Years For Structure | Other Fittings | Toilet,washbasin,shower,kitchen Etc. |
| Highlight | prefab home kits,bungalow modular homes |
||
Product Description

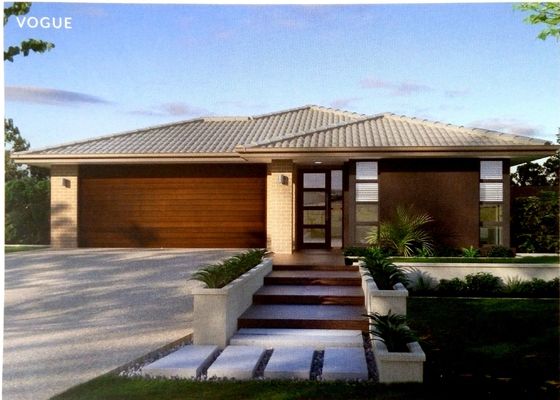

Cheap Home Prefabricated Light Steel System House Single Family Home With Garage
Basic information:
| MEASUREMENTS | ||
| Ground Floor | 16.1sq | 149.5㎡ |
| Garage | 3.7sq | 34.8㎡ |
| Outdoor Living | 1.1sq | 10.4㎡ |
| Porch | 0.3sq | 3.0㎡ |
| Total Area | 21.2sq | 197.4㎡ |
| Minimum Lot Width | 12.5m | |
| Home Length | 22.4m | |
| Home Width | 11.0m | |
The floor plan:
Applications:
House, Office, Shop, hotel, etc.
Detail:
| Name | Bungalow homes | Application | Bungalow homes for a living |
| Color | depend on customer’s request | Feature | 1.earthquake, cyclone proof |
| Material | light steel and other parts material | Certificate | CE,ISO,SAA,ETC |
Door: steel security door/WPC or wooden door；
Window: aluminum alloy/PVC；
Ceiling material: MGO board/gypsum board.

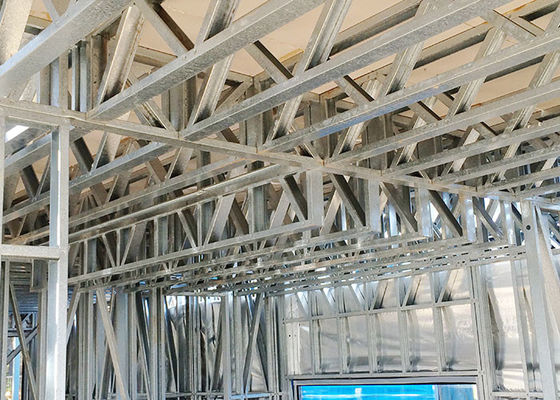

Why Choose Light Gauge Steel Structure?
1) Lifetime for structure: 100 years.
2) Earthquake resistance: mix more than 8 grades.
3) Wind resistance: max 60m/s.
4) Fire resistance: all the materials used can be fire resistance.
5) Snow resistance: max 2.9KN/m²as required
6) Heat insulation: 100 mm in thickness can match 1 m thickness of the brick wall.
7) High acoustic insulation: 60db of exterior wall 40db of interior wall
8) Insect prevention: Free from the damages by insects, such as white ants
9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11) Installation: the average is one worker one day install one SQM.
12) Installation guide: dispatch engineer to guide on site.
Design Code:
1) AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
2) AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
3) BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
4) ENV1993-1-3 means Euro code 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
Our Services:
If You Need: prefabricated kit home; prefab kit home. steel structure homes.steel frame house
Only Need You To Provide Us: house area, how many floors and bedrooms, luxury or normally, or low-cost configuration.
We Can Provide You: villa; bungalow; low-cost house; granny flat; apartment etc.many style house.
FAQ:
1. Q: What is the advantage of this steel structure system house(compare with the traditional brick house)?
A: Long lifetime; Good earthquake-proof, Green and energy saving; Fast and easy to install etc……
2. Q: What is the lifetime for your house?
A: The durable for the structure is more than 70 years.
3. Q: What is the intensity and thickness of your steel structure material?
A: All our steel structure intensity is S550. We can provide 0.75mm,0.95mm,1.15mm steel material.
4. Q: How about your production equipment and structure design software?
A: Our production equipment is the most advanced import from New Zealand. Our structure design software also imports from abroad-PRO DESIGN.
5. Q: What are the main technical data of your houses?
A: We can send you the specification and technology details.
