|Place of Origin:||NINGBO,CHINA|
|Minimum Order Quantity:||1SET|
|Packaging Details:||Bare bundle / 40HQ|
|Payment Terms:||L/C, T/T, Western Union|
|Frame Mterial:||0.75mm/0.95mm/1.15mm Steel Frame With AZ150 Zinc Coating||External Wall:||100 Or 50mm ALC Panel/WPC Board/fibre Cement|
|Insulation:||Glass Wool/EPS/XPS/PU Sandwich Panel||Ceiling Material:||MGOboard/ Gypsum Board+others|
|Floor:||Laminate/wooden/tile||Door:||Metal Security Door/Pvc Sliding Door|
|Roofing:||EPS Sandwich Panel/steel Roofing/asphalt||Other Fitting:||Toilet, Washbasin,shower ,kitchen,etc|
prefab home kits,
bungalow modular homes

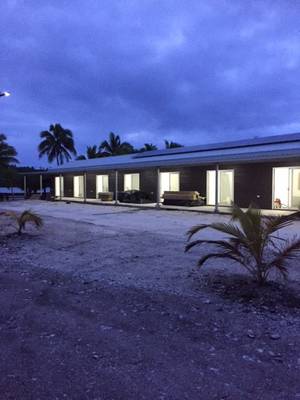

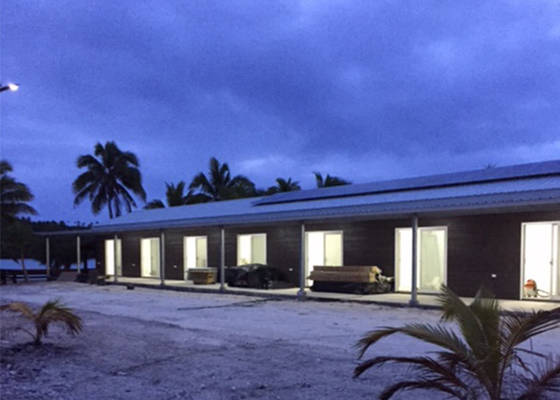

10 rooms motel built of Prefabricated light steel structure
|Name||Bungalow homes||Application||Bungalow homes for living|
|Color||Yellow,white,etc depend on customer’s request||Feature||
2.100 years life
|Material||light steel and other parts material||Certificate||
House, Office, Shop, hotel ,etc
1) Lifetime for structure: 100 years.
2) Earthquake resistance: mix more than 8 grades.
3) Wind resistance: max 60m/s.
4) Fire resistance: all the materials used can be fire resistance.
5) Snow resistance: max 2.9KN/m²as required
6) Heat insulation: 100 mm in thickness can match 1 m thickness of brick wall.
7) High acoustic insulation: 60db of exterior wall 40db of interior wall
8) Insect prevention: free from the damages by insects, such as white ants
9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorate materials.
11) Installation: the average is one worker one day install one SQM.
12) Installation guide: dispatch engineer to guide on site.
1) AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
2) AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
3) BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.
4) ENV1993-1-3 means Euro code 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
Deepblue Smarthouse was founded in 2009, a high-tech enterprise which integrated the ability of design, production, sales, transportation, installation and other services as a whole. We always committed to providing every family with a comfortable, safe and affordable home, and also can provide one-stop service for customers in this field. At present, we have completed many overseas real estate projects, large resort projects and so on. Our products have been exported to more than 60 countries and NGO. With 59 patents of invention and utility models, we have built more than 5,000 houses and won many awards in design and architecture
If You Need: prefabricated kit home; prefab kit home.steel structure homes.steel frame house
Only Need You To Provide Us:house area,how many floor and bedrooms,luxury or normally,or low cost configuation.
We Can Provide You:villa;bungalw;low cost house;granny flat;apartment etc.many style house.
1. Q: What is the advantage of this steel structure system house(compare with the traditional brick house)?
A:.Long lifetime;Good earthquake proof,Green and energy saving;Fast and easy to install etc……
2. Q:What is lifetime for your houses?
A:The durable for structure is more than 70 years.
3. Q:What is the intensity and thickness for your steel structure material?
A:All our steel structure intensity are S550. We can provide 0.75mm,0.95mm,1.15mm steel material.
4. Q:How about your production equipment and structure design software?
A:Our production equipment are the most advanced import from New-Zealand. Our structure design software also import from abroad-PRO DESIGN.
5. Q:What are the main technical data of your houses?
A:We can send you the specification and technology details.
Contact Person: David
