AS/NZS Standard Prefabricated Light Steel Frame Modular Home Kits From China

AS/NZS Standard Prefabricated Light Steel Frame Modular Home Kits From China

 5 bedrooms 6 Bathroom 3 Living 2 Garage 501.98m²

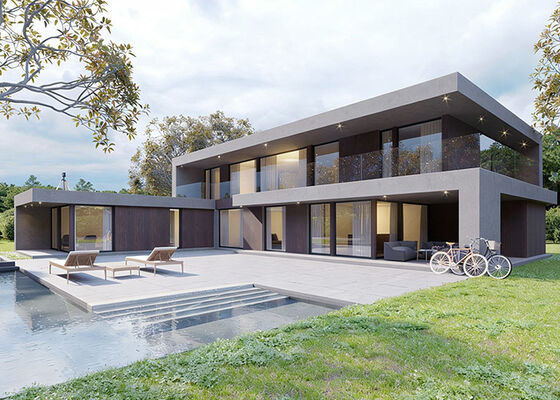

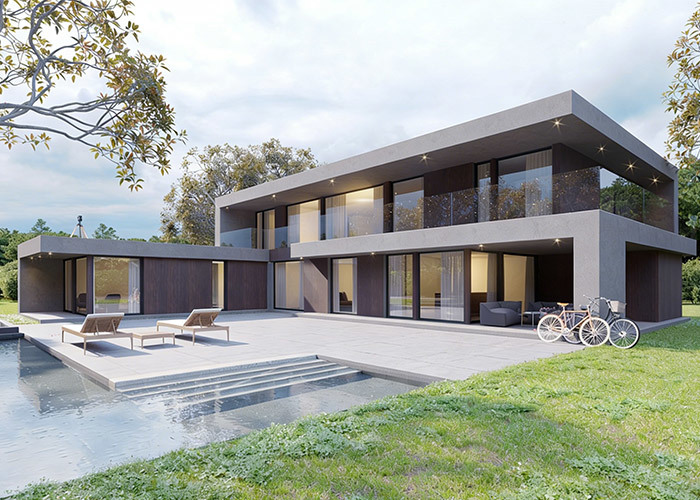

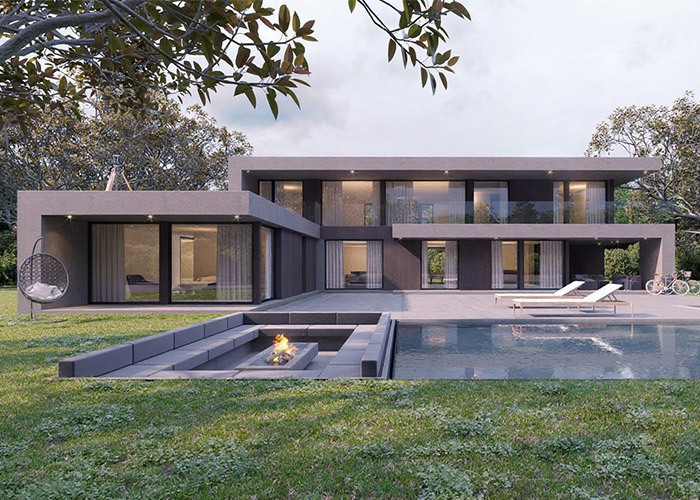

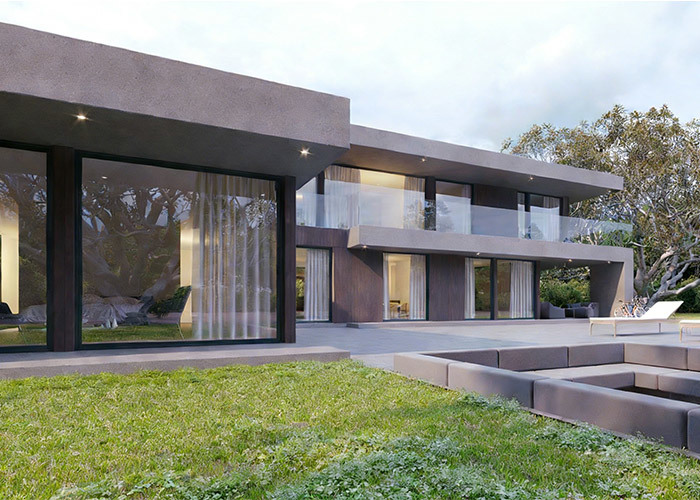

Nestled on a spacious footprint of 23.68 by 20 meters, the Oakland House redefines contemporary family living. Its distinctive L-shaped design is more than just an architectural statement—it is a deliberate layout that seamlessly blends indoor luxury with outdoor serenity.

Layout & Design:

The home wraps around a private, sheltered patio, creating a natural extension of the living space where you can enjoy morning coffee or evening gatherings under the open sky.

Upon entering, you are greeted by a voluminous, light-filled living room. The floor plan flows intuitively into an adjacent dining area and an open-concept kitchen, making it the perfect hub for daily life and entertaining. The ground floor is thoughtfully zoned for privacy, placing two well-appointed bathrooms and the staircase at the rear, while the left wing is dedicated to a luxurious master suite complete with a private bathroom.

Ascending to the second floor reveals a versatile retreat. Here, you will find two comfortable lounges and three additional bedrooms, each thoughtfully designed with direct access to their own individual washrooms—ensuring comfort and autonomy for every family member.

Floorplan:

• Product parameters:



  Name:	Oakland House
  Size:	23680×19910mm
  Ground floor area:	310.91sqm
  First Floor Area:	191.07sqm
  Total Area:	501.98sqm
  Model:	DPBL-26-11



Applications:

Hotel, House, Office, etc.

Product Description:

DeepBlue earthquake proof prefabricated bungalow is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers.
the materials are the following:

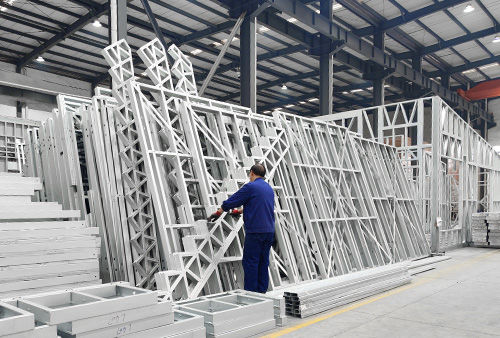

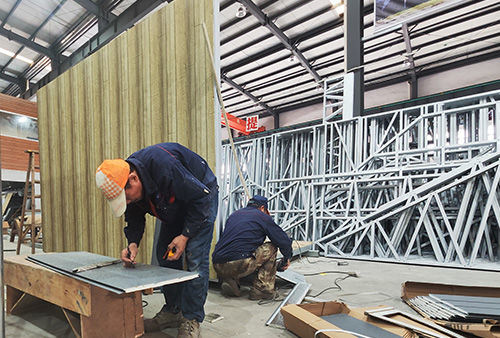

1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard.
the structure can be design to resist 50m/s wind and 9degree earthquake.
2. Roof structure: 89mm light gauge steel truss system.
3. Chassis: 89mm light gauge steel flooring chassis
4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, Pvc carpet, etc.
5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration
6. interior lining: 9m fiber cement board, water-proof, termite-proof, security and healthy
7. ceiling: 8mm Pvc ceiling panel
8. insulation: 89mm glass wool insulation with good soundproof performance.
9.windows: PVC sliding windows
10.exterior door: high-quality aluminum sliding windows
11.interior door: painted wood door
12.bathroom: shower, washbasin, toilet included
13. roofing: corrugated steel roofing with the gutter system
14. veranda deck: W.P.C veranda flooring.

The Riga House is more than a design; it is a testament to integrated craftsmanship brought to life by DeepBlue SmartHouse. We specialize in translating architectural visions into tangible reality by providing the complete material ecosystem and technical expertise required for such bespoke projects. From the high-performance window systems that define this home's character to the underlying structural integrity, every component is sourced and coordinated under our rigorous oversight.


Specifications:

ISO standard steel structure house .one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance. green, energy-saving. economically.

Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.

Design code:

(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Resistant to various weather conditions, due to its light gauge steel framing system, DeepBlue Mobile Homes can resist winds up to 50m/s, 50cm snow loads as well withstand earthquakes due to its special steel structure technology.

The DeepBlue Mobile Houses manufacturing technology is truly a mature product characterized by flexibility and innovative design and solution.

Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.
