AS/NZS/USA Standard Ligth Steel Frame Modern Prefabricated Home Modular Home Kits

AS/NZS/USA Standard Ligth Steel Frame Modern Prefabricated Home Modular Home Kits

Estrella House

1 Living 4 bedrooms 2 bathrooms 2 car spaces 217.25m²

The Estrella House, providing a comfortable and functional living space for modern families.

With a total area of 217.25m², this home is perfect for those seeking a well-organized layout that combines convenience and style.

Floorplan:

The Estrella House offers four spacious bedrooms, making it ideal for family living. The open-plan living room and kitchen create a welcoming and social environment, while the two well-appointed bathrooms ensure comfort for all residents. A two-car garage provides ample storage and convenience, making the Estrella House suitable for various lifestyles.

High-Quality Materials & Certifications:

DEEPBLUE SMARTHOUSE ensures that every component of the Estrella House meets international standards for durability and safety. All materials are certified under ICC-ES, ISO 9001, EN 1090, and CE, guaranteeing top-notch quality.

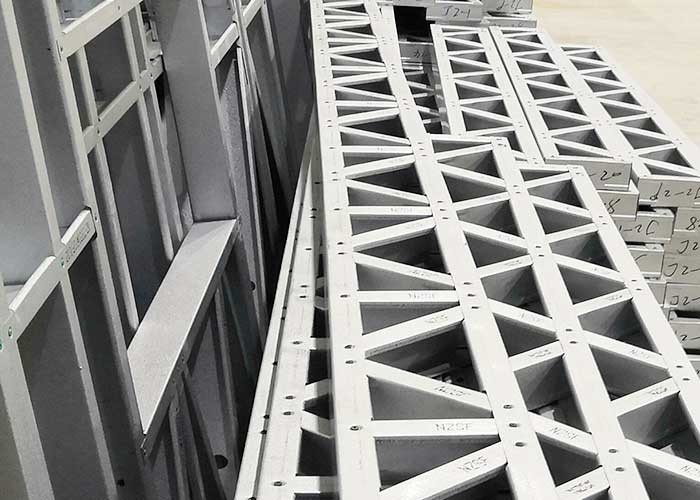

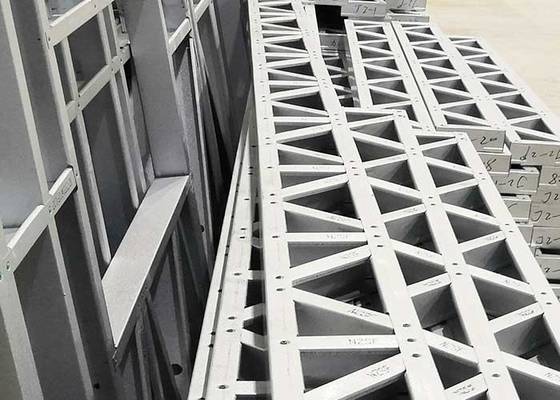

Light Steel Frame Construction: Ensures a strong, stable structure that is both lightweight and long-lasting.
Interior Walls: Finished with 12mm Gypsum Board or a double layer for enhanced insulation and durability.
Flooring: Wet areas feature 600mm x 600mm ceramic tiles, while dry areas include 9mm laminated flooring or 15mm engineered flooring for a refined touch. Outdoor areas are completed with WPC deck flooring.
Windows: Equipped with double-glass aluminum or PVC windows for excellent thermal and sound insulation, meeting Australian standards.
Customizable Features:
The Estrella House can be customized to suit individual preferences, with a wide range of material choices for interior and exterior finishes:

Skirting: Available in 100mm high PVC or wooden skirting.
Ferrace/Balcony/Deck Flooring: Choose between WPC wooden flooring or ceramic tiles.
Pillars and Railings: Made from galvanized steel or WPC-coated materials for durability and aesthetic appeal.
Roofing Options: Available in stone-coated steel tiles or Colorbond roofing sheets for a modern finish.
With its spacious design, high-quality materials, and customizable options, the Estrella House is the perfect blend of luxury and practicality, making it an ideal choice for families who value both comfort and style.

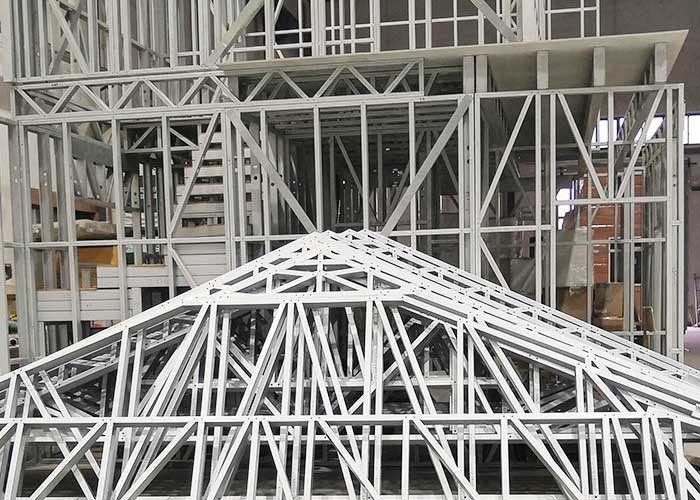

Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.[0.75~1.2mm , Z275galvanized steel profile, strength:550Mpa ]
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance:all the materials used can be fire resistance.
5)Snow resistance:max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation:a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorate materials.
11)Installation:the average is one worker one day install one SQM.
12)Installation guide:dispatch engineer to guide on site.

Design code:

(1)AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Company Information

Deepblue Smarthouse was founded in 2009, a high-tech enterprise which integrated the ability of design, production, sales, transportation, installation and other services as a whole. We always committed to providing every family with a comfortable, safe and affordable home, and also can provide one-stop service for customers in this field. At present, we have completed many overseas real estate projects, large resort projects and so on. Our products have been exported to more than 60 countries and NGO. With 59 patents of invention and utility models, we have built more than 5,000 houses and won many awards in design and architecture

The DeepBlue Smarthouse world is one with advanced production equipment, managed by outstanding professionals, within a sound training environment. Together with our excellent corporate atmosphere we provide you with first-for our customers, that's our commitment to you.

Packaging & Shipping

Well packed export quality package ,shipped by 40hq.
