Prefab Hotel Unit Light Steel Space A Frame Tiny Building Kitset Homes Nz

Prefab hotel unit Light Steel Space A Frame tiny building kitset homes nz

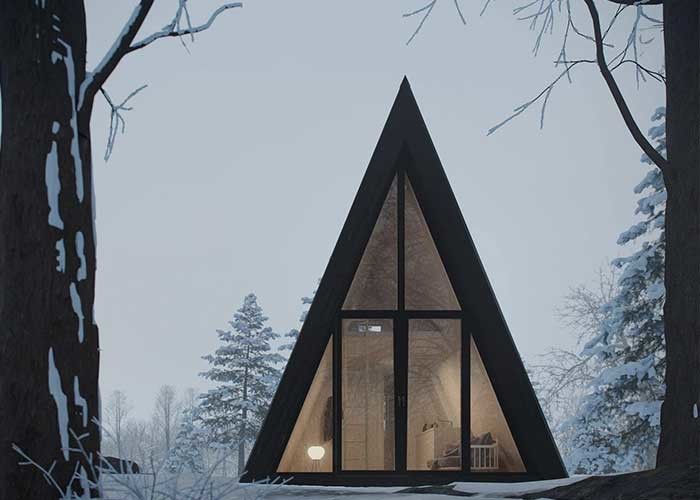

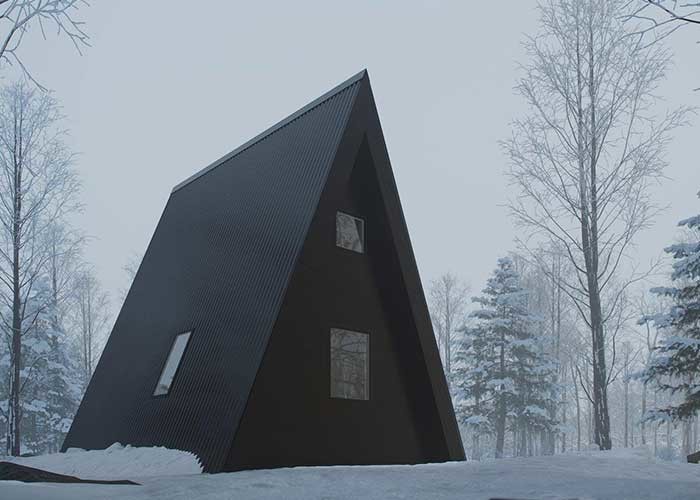

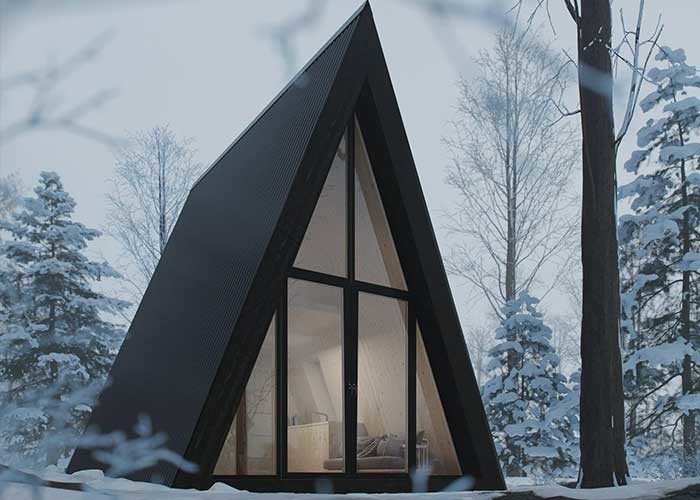

A-Frame snowland
1bedrooms1 living  ​1 Kitchen  1 bath  30.68m²

DEEPBLUE is a mobile living. it means having possibilities.

A Hotel Suite in the Woods

Our classic bunk cabin now with a bathroom! This bunk cabin plan is saturated by natural light bringing soaring 14-foot ceilings and an entire wall of glass to your own slice of Earth, wherever that may be. French doors open into the great outdoors while vented windows and a thoughtfully placed skylight invite the fresh air in. With a spacious lofted bed alcove and an optional kitchenette, this is the perfect cabin to be built in pairs or as a trio to host family and friends in their own space.

Floorplan

Name: A-Type snowland
Model:A Frame House 03
Size:W 4267mm*L 5486mm*H 6400mm
1 bedroom 1 living 1 Kitchen 1 bath
Ground floor area: 23.4㎡
Loft area: 7.28㎡
Total area: 30.68㎡

A frame house is a unique style of building, which can be used for vacations in nature, or business plans like Airbnb. It is a popular style nowadays, has attracted the interest of many investors and tourists.

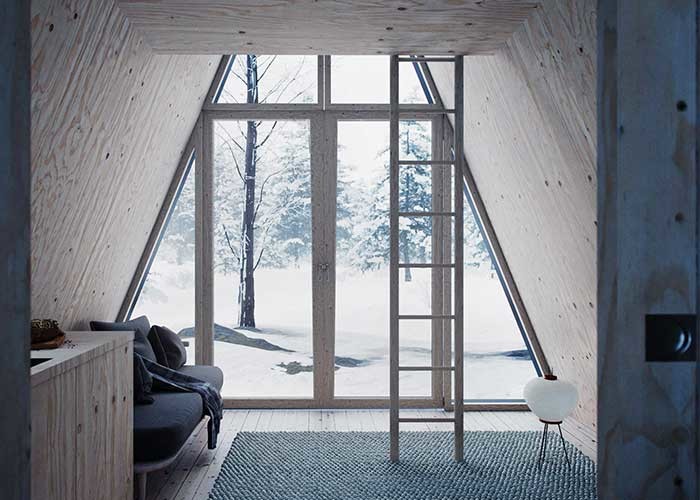

With the unique shape, the guests will feel the unique space in it. Through the side windows, the guests can get good daylight, observe the scenery around, and see the starry sky.
Combined with elegant material style and complete indoor area functions, the guests can devote themselves to the building and the surrounding environment during the vacation, interact with them, and get full relaxation.

Quick Detail:


Description:

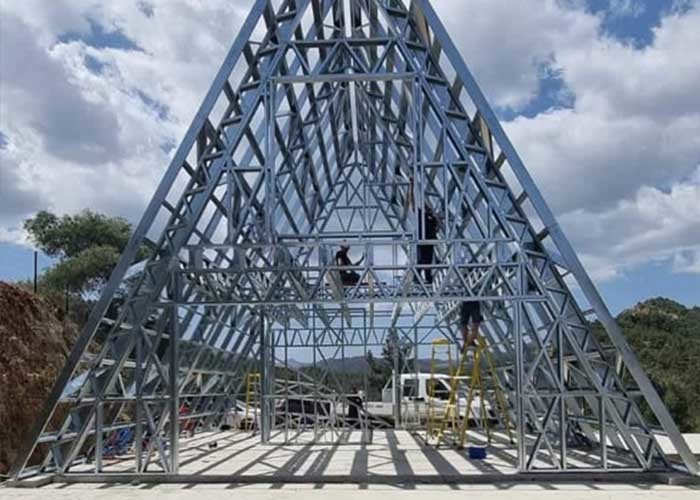

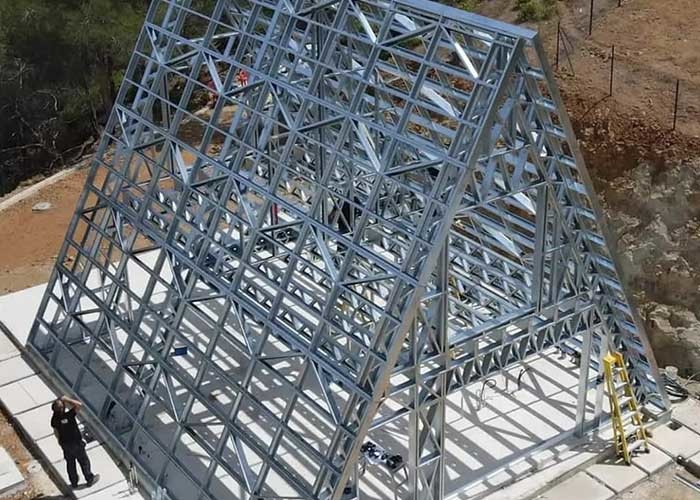

Roof structure: light gauge steel truss system
Main structure: light gauge steel framing system
Cladding: PU insulation steel sandwich panel
interior lining: fiber cement board
Insulation: high-performance glass wool
Flooring: wooden or bamboo flooring
Ceiling: PVC ceiling panel.
Lighting: C.E, AS/NZS, UL standard light or others
Exterior Door: Aluminium sliding doors
Keyword: keyword

Applications:

Hotel, House, Office, etc.

Product Description:

DeepBlue earthquake proof prefabricated bungalow is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers.
the materials are the following:
1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard.
the structure can be design to resist 50m/s wind and 9degree earthquake.
2. Roof structure: 89mm light gauge steel truss system.
3. Chassis: 89mm light gauge steel flooring chassis
4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, Pvc carpet, etc.
5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration
6. interior lining: 9m fiber cement board, water-proof, termite-proof, security and healthy
7. ceiling: 8mm Pvc ceiling panel
8. insulation: 89mm glass wool insulation with good soundproof performance.
9.windows: PVC sliding windows
10.exterior door: high-quality aluminum sliding windows
11.interior door: painted wood door
12.bathroom: shower, washbasin, toilet included
13. roofing: corrugated steel roofing with the gutter system
14. veranda deck: W.P.C veranda flooring.

Specifications:

ISO standard steel structure house .one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance. green, energy-saving. economically.

Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.

Design code:

(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Resistant to various weather conditions, due to its light gauge steel framing system, DeepBlue Mobile Homes can resist winds up to 50m/s, 50cm snow loads as well withstand earthquakes due to its special steel structure technology.

The DeepBlue Mobile Houses manufacturing technology is truly a mature product characterized by flexibility and innovative design and solution.

Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.

Your first choice, Deepblue Prefabricated house in China.
