Home ProductsPrefab Villa

Australian Light Steel Framing House Project Prefab Kitset Homes

Australian Light Steel Framing House Project Prefab Kitset Homes

  • Australian Light Steel Framing House Project Prefab Kitset Homes
  • Australian Light Steel Framing House Project Prefab Kitset Homes
  • Australian Light Steel Framing House Project Prefab Kitset Homes
  • Australian Light Steel Framing House Project Prefab Kitset Homes
  • Australian Light Steel Framing House Project Prefab Kitset Homes
Australian Light Steel Framing House Project Prefab Kitset Homes
Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: DEEPBLUE
Certification: AS/NZS,UL,AISI,
Model Number: SantaRosa.House
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: 200-800USD/SQM
Packaging Details: Bare bundle / 40HQ
Delivery Time: 30-45days
Payment Terms: T/T,L/C,D/P,OA
Supply Ability: 12000houses/year
Contact Now
Detailed Product Description
Structure: AS1397 G550 Z275 0.75/0.95mm Wall Structure Roofing Tile: Asphalt Roofing Shingle Tile
Insulation Inside Steel Frame (wall Frame, Ceiling): R3.5 Glass Wool*100mm Extra Insulation Layer‐‐exterior Wall): 50mm XPS, 50mm PU Panel, 50mm PU Panel Alu. Coil
Interior Wall Panel: 12mm Gypsum Board Skirting: 100mm High PVC Skirting
High Light:

140m2 prefab kitset homes

,

PVC Skirting prefab kitset homes

,

140m2 light steel framing house

Australian light steel framing house project prefab kitset homes nz



SantaRosa.House

Australian Light Steel Framing House Project Prefab Kitset Homes 0 5 bedrooms Australian Light Steel Framing House Project Prefab Kitset Homes 1 3 bathrooms Australian Light Steel Framing House Project Prefab Kitset Homes 2 1 living room Australian Light Steel Framing House Project Prefab Kitset Homes 3 385.6 m²

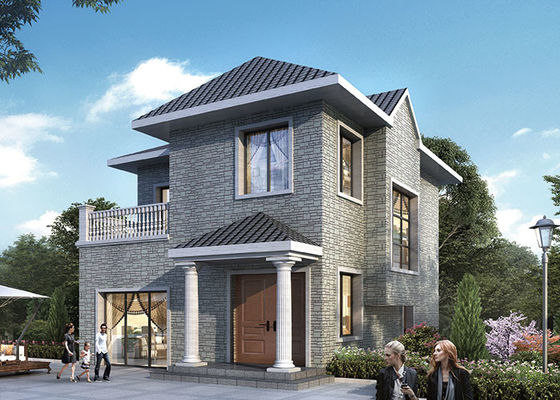

The total area of Santa Rosa is about 140 square meters. The living room, kitchen, and dining room are all on the first floor, and there is a bedroom with a separate bathroom. On the second floor there is a lounge, two bedrooms and a toilet. The balcony on the second floor forms an open space, adding a sense of hierarchy to the overall building.



Australian Light Steel Framing House Project Prefab Kitset Homes 4



Quick Detail:



Name Luxury villa Application Villa for living
Color Optional(For you to choose ) Feature

1. Flexible space design makes you comfortable.
2. Quick set-up and early check-in.
3. Green environmental protection materials, fire, and wind anti-earthquake.

4.Construction speed is fast and simple



Material light steel and other parts material Certificate CE,ISO,SAA,ETC,ISO









Product parameters:

930Project in ZheJiang China



Name: SantaRosa.House
NO: DEPBL-930#
Lenth: 8854mm
Width:8754mm
Ground floor area: 77.5 ㎡
Fisrt floor area: 77.5 ㎡
Total area: 155㎡



Australian Light Steel Framing House Project Prefab Kitset Homes 5



Project date: 2020/8
Supplier:DeepBlue


Australian Light Steel Framing House Project Prefab Kitset Homes 6

Description:



Main structure: Light Steel

Wall material: ALC panel/fiber cement cladding+MGO board/gypsum board

Insulation material: Insulation material

Structure: Steel Frame

Ceiling material: MGO board/gypsum board

Floor/foundation material: laminate flooring/wooden/PVC carpet

Door: steel security door/WPC or plywood door

Window: aluminum alloy/PVC

Roofing: EPS sandwich panel/steel roofing/asphalt shingle

Other fittings: toilet, washbasin, shower, kitchen, etc.

Lifetime: 100 years of structure





Product Description



DeepBlue steel structural prefab villa is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers. the materials are the following: 1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard. the structure can be design to resist 50m/s wind and 9degree earthquake.

2. Roof structure: 89mm light gauge steel truss system.

3. Chassis: 89mm light gauge steel flooring chassis 4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, PVC carpet, etc. 5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration 6. interior lining: 9m fiber cement board,water-proof,termite-proof, security and healthy

7. ceiling: 8mm PVC ceiling panel

8. insulation: 89mm glass wool insulation with good soundproof performance.

9.windows: PVC sliding windows

10.exterior door: high-quality aluminum sliding windows 11.interior door: painted wood door 12.bathroom: shower, washbasin, toilet included



Australian Light Steel Framing House Project Prefab Kitset Homes 7

Australian Light Steel Framing House Project Prefab Kitset Homes 8

Australian Light Steel Framing House Project Prefab Kitset Homes 9



Company Introduction:



Since establishing the company in 2009, we have been proud of providing cost-effective custom and modular houses, apartments, and commercial buildings to people all over the world. So far, we have built more than 5,000 houses and won many design and construction awards. Today, we build, sell, finance, and lease our buildings from China to all around the world.

We specialize in the design and manufacture light steel frame house, include a light steel frame villa, modular house, apartment, resort, tiny house, etc.

Australian Light Steel Framing House Project Prefab Kitset Homes 10

We have a new large-scale processing center and modern production workshop to produce high-quality products in strict accordance with technical specifications and quality control, ensuring the accuracy of our products.





Australian Light Steel Framing House Project Prefab Kitset Homes 11
