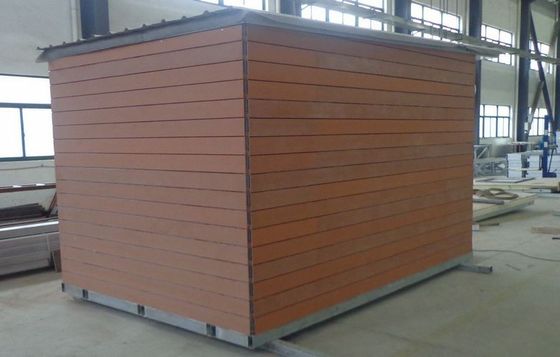

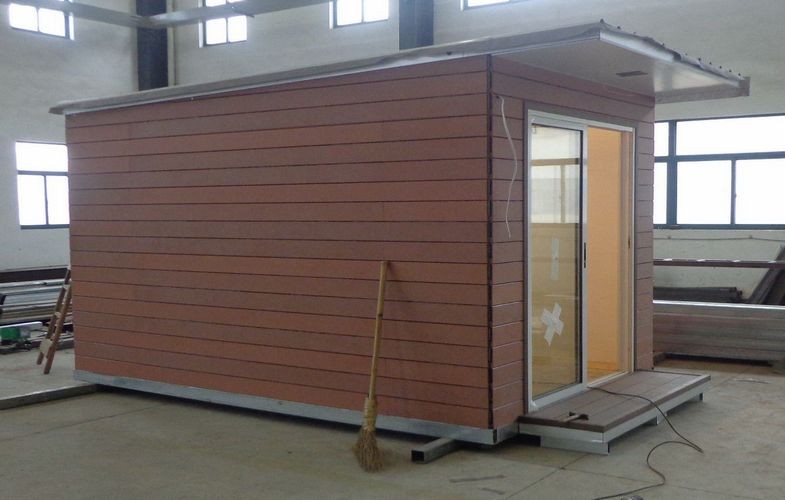

Light Steel Structure Holiday Home / Prefabricated Garden Studio For Holiday Living

Light Steel Structure Holiday Home / Prefabricated Garden Studio For Holiday Living




Quick Detail:




Description:

Main structure: Light Gauge Steel
Wall cladding: WPC cladding
Insulation material: glass wool or also EPS/XPS/PU sandwich panel
Ceiling material: MGO board/gypsum board
Roof: EPS sandwich panel/steel roofing/asphalt shingle
Flooring: laminate flooring/wooden/PVC carpet
Door: steel security door/WPC or wooden door
Window: aluminum alloy/PVC
Other fittings: toilet, washbasin, shower, kitchen, etc.
Lifetime: 100 years for structure


Applications:

toilet,washbasin,shower,kitchen,study room etc.


Specifications
Home accents holiday :
ISO standard light gauge steel for main structure.one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance.green, energy saving. economically.

Why Choose Light Gauge Steel Structure?
1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire resistance.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.
Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.


Service Process

customized design service & personalized option

If You Need: prefabricated kit home; prefab kit home. steel structure homes.steel frame house

Only Need You To Provide Us: house area, how many floors and bedrooms, luxury or normally, or low-cost configuration.

We Can Provide You: villa; bungalow; low-cost house; granny flat; apartment etc.many style house.


DeepBlue Smarthouse Company information
The DeepBlue Smarthouse world is one with advanced production equipment, managed by outstanding professionals, within a sound training environment. Together with our excellent corporate atmosphere, we provide you with first-for our customers, that's our commitment to you.

Your first choice, Deepblue Prefabricated house in China.
