Heat Prefab Villa Modular Home Kit With Ligth Steel Frame ICC EN-1090

Heat Prefab Villa Modular Home Kit With Ligth Steel Frame ICC EN-1090

Vienna Villa

7 bedrooms 7 bathrooms  2 kichen    2 living room 450m²

The Vienna house has been designed for a comfortable yet practical living experience. The natural textures and tones throughout the house encourage a sense of sophisticated simplicity, tranquility and openness.

All the bedrooms are thoughtfully spaced out throughout the home so that everyone can get a bit of privacy when they need it.

Quick Detail:

Description:

Main structure: Light Gauge Steel

Wall material: ALC panel/fibre cement cladding+MGO board/gypsum board

Insulation material: Insulation material

Ceiling material: MGO board/gypsum board

Floor/foundation material: laminate flooring/wooden/PVC carpet

Door: steel security door/WPC or plywood door

Window: aluminum alloy/PVC

Roofing: EPS sandwich panel/steel roofing/asphalt shingle

Other fittings: toilet,washbasin,shower,kitchen etc.

Life time: 100 years for structure


Applications:

House, Office, Villa,etc.

Specifications

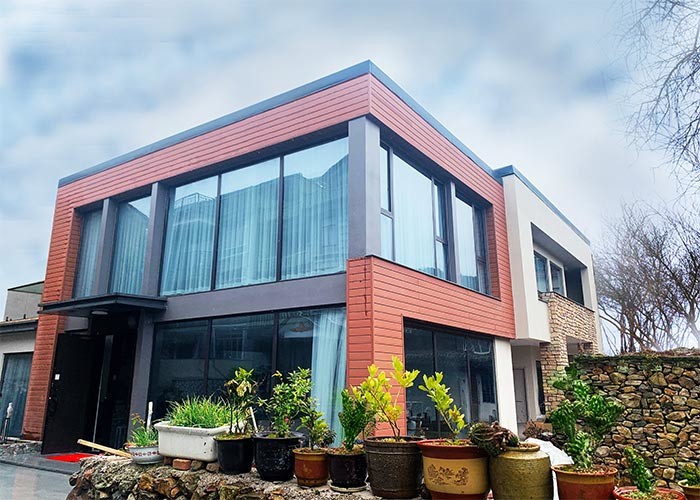

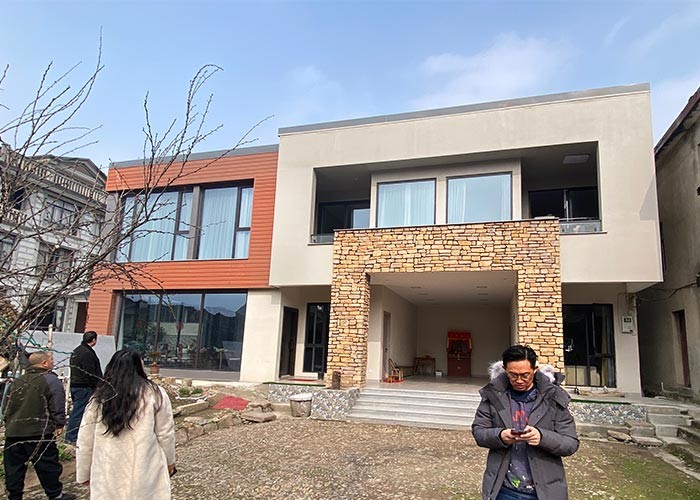

Vienna House
1 unit 2 floors Luxury villa
1F Area: 235 sqm
2F Area: 215 sqm
Total area 450 sqm
Project date: 2020/10
Supplier:DeepBlue



Product Description

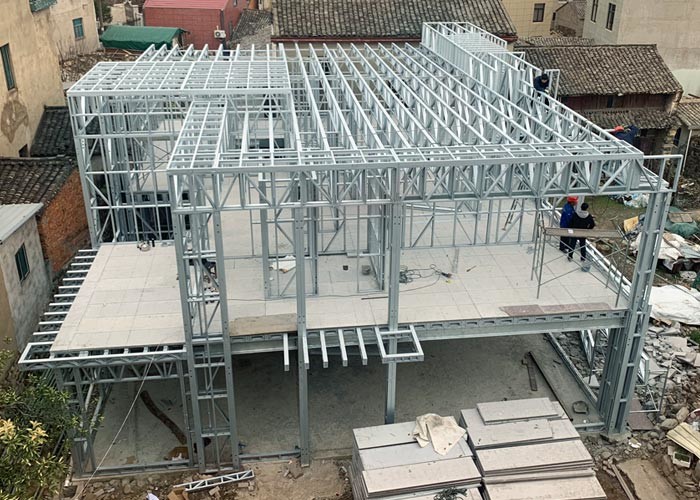

DeepBlue steel structural prefab villa is based on light gauge steel frame system with high performance finishing materials. The whole house can be assembled within couple of hours by 4workers. the materials are the following: 1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard. the structure can be design to resist 50m/s wind and 9degree earthquake.

2. Roof structure: 89mm light gauge steel truss system.

3. Chassis : 89mm light gauge steel flooring chassis 4. flooring: 18mm fiber cement board with vapor barrior and bamboo flooring or wooden flooring , pvc carpet etc. 5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration 6. interior lining: 9m fiber cement board ,water-proof ,termite-proof ,security and healthy

7. ceiling: 8mm pvc ceiling panel

8. insulation: 89mm glasswool insulation with good sound proof performance.

9.windows: PVC sliding windows

10.exterior door: high quality aluminim sliding windows 11.interior door: painted wood door 12.bathroom: shower, wash basin, toilet inculded 13. roofing: corrugated steel roofing with gutter system 14. veranda deck: W.P.C veranda flooring.

ISO standard light gauge steel for main structure.fireproof,heat insulation,wind and earthquake resistance.green,energy save. also economically.

Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.[0.75~1.2mm , Z275galvanized steel profile, strength:550Mpa ]

2)Earthquake resistance: mix more than 8 grades.

3)Wind resistance:max 60m/s.

4)Fire resistance:all the materials used can be fire resistance.

5)Snow resistance:max 2.9KN/m²as required

6)Heat insulation:100 mm in thickness can match 1 m thickness of brick wall.

7)High acoustic insulation:60db of exterior wall 40db of interior wall

8)Insect prevention: Free from the damages by insects, such as white ants

9)Ventilation:a combination of natural ventilation or air supply keep the indoor air fresh and clean

10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorate materials.

11)Installation:the average is one worker one day install one SQM.

12)Installation guide:dispatch engineer to guide on site.

Company Introduction:

Deepblue Smarthouse was founded in 2009, a high-tech enterprise which integrated the ability of

design, production, sales, transportation, installation and other services as a whole. We

always committed to providing every family with a comfortable, safe and affordable home, and

also can provide one-stop service for customers in this field. At present, we have completed

many overseas real estate projects, large resort projects and so on. Our products have been

exported to more than 60 countries and NGO. With 59 patents of invention and utility models, we

have built more than 5,000 houses and won many awards in design and architecture

Production in DeepBlue factory:

Design code:

(1)AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.

(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.

(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.

(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Technology Details:

If You Need: prefabricated kit home; prefab kit home.steel structure homes.steel frame house

Only Need You To Provide Us:house area,how many floor and bedrooms,luxury or normally,or low cost configuation.

We Can Provide You:villa;bungalw;low cost house;granny flat;apartment etc.many buildings.
