Mini 20 / 30SQM Prefabricated Bungalow Homes , Light Steel Bungalow Modular Homes

Mini 20 / 30SQM Prefabricated Bungalow Homes , Light Steel Bungalow Modular Homes

Mini 20 / 30SQM Prefabricated Bungalow Homes , Light Steel Bungalow Modular Homes

Product Details:

Place of Origin: NINGBO,CHINA
Brand Name: DEEPBLUE
Certification: AS/NZS,UL,AISI,
Model Number: DP-B-09

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: 200-500USD/SQM
Packaging Details: Bare bundle / 40HQ
Delivery Time: 30-45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 12000houses/year
Contact Now
Detailed Product Description
Frame Mterial: 0.75mm/0.95mm/1.15mm Steel Frame With AZ150 Zinc Coating External Wall: 100 Or 50mm ALC Panel/WPC Board/fibre Cement
Insulation: Glass Wool/EPS/XPS/PU Sandwich Panel Ceiling Material: MGOboard/ Gypsum Board+others
Floor: Laminate/wooden/tile Roofing: EPS Sandwich Panel/steel Roofing/asphalt
Other Fitting: Toilet, Washbasin,shower ,kitchen,etc Door: Metal Security Door/Pvc Sliding Door

Mini 20 / 30SQM Prefab Bungalow Homes , Light Steel Bungalow Modular Homes



Quick Detail:



Name

Wooden house

Application

Wooden house for living

Color

Yellow,white,etc depend on customer’s request

Feature

1.U.K engineer approved

2.earthquake,cyclone proof

3.100 years life

4.green,Energy save

Material

light steel and other parts material

Certificate

CE,ISO,SAA,ETC





Technical advantages
1. Anti-seismic: Most villas use slope roofing with truss system. The roofing system will be very strong after the truss was sealed with panels, it can against 8-degree earthquake, and has high strength of loading capability.
2. Good Performance for against wind: light weight, high strength, good integrity, not easy to deform, all these advantages make light gauge steel building good performance for against wind. It can resist the cyclone at the speed of 60m/s, thus protecting the building and people’s life.
3. Durability: light gauge steel building uses cold-formed galvanized steel, thus avoiding rust in the course of construction and use, and makes the life span of the structure 100 years.
4. Heat Preservation Performance: Heat preservation: we use glass wool as insulation and effectively avoid the phenomenon of cold bridge of the wall body. The heat preservation effect of 100mm glass wool is equivalent to 1m-thick brick wall.
5. Fire Resistance: As the experiment data shows, use good fire proof decorate material, light steel system can resist fire for four hours and can effectively slow down the fire spreading.
6. Sound-proof Performance: Sound-proof performance is an important item for evaluating the accommodation. Light steel system adopt hollow glass for windows, which can soundproof for 40 db. The light steel wall system can soundproof for 60 db.
7. Healthiness: dry construction, minimum waste to the environment, and 100% recyclable of the materials, all these advantages are conform to the consciousness of environmental protection. What’s more, the materials we use are all green materials, which are good for people’s health.
8. Comfort: Light steel wall system adopts highly efficient energy-saving system with respiration function to adjust the humidity of the room; with ventilation function in the roof, ensuring the ventilation and hot scattering of the room, thus make the room more comfortable.
9. Termite resistant: The light steel buildings can completely resist termite invasion, thus extending the life span of the house and decrease the repair cost.
10. Fast to assemble: Dry construction and without the influence of season. A 300sqm-building only need 10 workers for 30 days from the foundation to everything finished.
11. Environmental friendly: Materials are 100% recyclable, and no pollute to the environment.
12. Energy-Saving: Efficient and energy-saving wall has good performance on heat keeping and sound proofing, and can achieve the energy-saving standard for 85%.





Applications:



House, Office, Sentry Box,Guard House, Shop, Villa ,etc





Specifications



Steel structure modern wooden log houses includes the following items.



1  plans: full drawings for home builder

2 Site works: (optional) Based on a level site unless otherwise quoted

3 Foundations(opt) :Concrete floor slab or basement we will supply the drawing for your house

4 Wall frames: AS/NZ standard Light steel frames

5 Roof framing: AS/NZ standard Light steel roof truss

6 Roof: asphalt shingle or ceramic tile , or steel sandwich panel roofing

7 Cladding : Bamboo panel, wooden board, fiber cement board , sandwich panel, ALC panel etc.

8 Fascia: treated pipe board

9 Spouting: PVC down water piping system

10 Windows: Aluminun windows or PVC windows

11 Ceiling :9mm gypsum board for dry area, fiber cement board for wet area

12 Insulation: Glass wool

13 Interior linings: 12mm gypsum board

14 Skirting :wooden skirting

15 Interior doors: wooden door.

16 Door hardware: included in our door.







Wall frames

Light gauge steel frame system based on U.K stanard

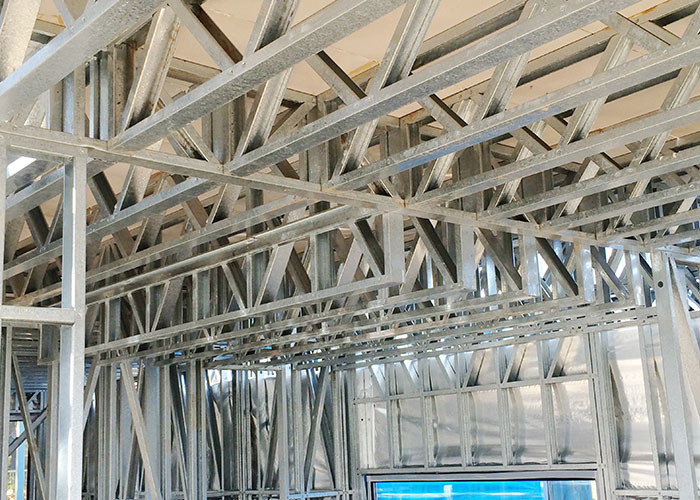

Roof framing

Steel frame truss

Roof

Color steel sheet with insulation or asphalt shingle or ceramic tiles

Cladding

Fiber cement board or 7.5mm fiber cement board or vinyl siding

Fascia

200 x 25 dressed LOSP treated pine

Spouting

PVC gutter with PVC round down pipes Or Steel gutter with PVC round down pipes

Windows

Alum. Windows or PVC windows

Insulation

R1.8 wall and R2.2 ceiling batts

Interior linings

10mm   plasterboard to walls and ceilings 10mm    Aqualine to bathroom areas

Skirting

 Wooden skirting or pvc skirting

Interior doors

 Wooden doors with hinges, locks

Kitchen

 Bench top with cabinet and sink

Shower/s

 Shower box with flowers

Bathtub

 Acrylic bathtub

Plumbing

dual-flush toilet Chrome single lever mixers Slide shower rose to showers Chrome wastes











Company Information



.jpg

Our Services



If You Need: prefabricated kit home; prefab kit home.steel structure homes.steel frame house



Only Need You To Provide Us:house area,how many floor and bedrooms,luxury or normally,or low cost configuation.



We Can Provide You:villa;bungalw;low cost house;granny flat;apartment etc.many style house.





FAQ



answer for wooden house:



1. Q: What is the advantage of this steel structure system house(compare with the traditional brick house)?

    A:.Long lifetime;Good earthquake proof,Green and energy saving;Fast and easy to install etc……

2. Q:What is lifetime for your houses?

    A:The durable for structure is more than 70 years.

3. Q:What is the intensity and thickness for your steel structure material?

    A:All our steel structure intensity are S550. We can provide 0.75mm,0.95mm,1.15mm steel material.

4. Q:How about your production equipment and structure design software?

    A:Our production equipment are the most advanced import from New-Zealand. Our structure design software also import    from abroad-PRO DESIGN.

5. Q:What are the main technical data of your houses?

    A:We can send you the specification and technology details.
