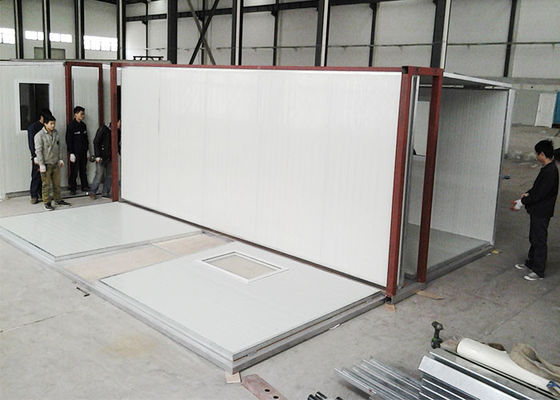

Imagine a house that unfolds and blossoms like a lotus flower, offering rapid assembly, affordability, and adaptability for various needs. This is the Lotus House, a groundbreaking creation developed by DEEPBLUE SMARTHOUSE. With its distinctive design and versatile functionality, Lotus House serves as an ideal solution for employee housing, temporary rentals, granny flats, and much more. In many parts of the world, it has even been employed as emergency housing and in disaster relief efforts.

Quick Detail:

The Lotus House boasts an innovative blend of structural elements that make it both robust and efficient. The roof structure utilizes a light gauge steel truss system, while the main structure is built upon a light gauge steel framing system. This combination ensures durability and rapid assembly, making it an ideal choice for various applications.

The exterior of the Lotus House features PU insulation steel sandwich panels, providing excellent thermal insulation properties. This feature not only helps in maintaining a comfortable indoor temperature but also contributes to energy efficiency. High-performance glass wool insulation is incorporated to further enhance temperature control and energy conservation.

Specifications

15mins quickly portable emergency shelter :

The shelters can be used attached or detached from the trucks, which means only one truck is required to use several shelters at the same time.

They’re made to be moved easily and quickly, and can be transported by ship, train, truck, air transport, or helicopter.

DeepBlue Lotus house is a modular, multipurpose housing solution that will serve your needs and requirements in the best possible manner.

The working system

Dimension and Weight

• External Dimension (L*W*H):5790*4890*2520
• Internal Dimension(L*W*H):  5690*4790*2415
• Weight:2000kg per unit

Permitted loading: 3.50 KN/m²
Coefficient of thermal conductivity: K=0,032 W/mk

 Roof

Composition:

• Roofing is made of 0.35mm color steel sheet
• Roofing panel:  50mm EPS sandwich panel

Permitted loading: 1.00 KN/m²
Coefficient of thermal conductivity: K=0,030 W/m.k

 Façade wall

Wall panels are made of 50mm with a 10kg density EPS foam sandwich panel. All panels are fixed in the factory and hinged with a roofing panel. The thickness of steel for the panel is 0.35mm outside and 0.35mm for inside.

Permitted loading: 0.60 KN/m²
Coefficient of thermal conductivity: K=0,028 W/m.K

Door

External door: steel, single fold, filled door with opening dimensions of 850X2000mm, furnished with a cylinder lock with 3 keys. The doorframe is made of galvanized steel, with overall dimensions of 900X2025mm, 50mm thick, made of painted sheet metal as the framework

Windows

Windows are made of aluminum, white color, with dimensions 900X1100mm, single glass in a thickness of 4mm.

Electricals Installation

Standard: according to VDE 100 regulations or CCC standard, UL standard.
Voltage: 220/380 V, 50 Hz Network connections: CEE-connection plus/socket, 3-pole 32 A, 220V~, mounted on the top frame in upper corners of shorter sidewall
Inner distribution system: NyM-J cables of suitable dimensions, flush-mounted Protection: protective current switch (40/4E-0,03A), automatic fuses (B-characteristics) of suitable power (10A, 16A)
Earthling: galvanized connector with a steel plate of dimensions 30x80mm welded on the bottom frame

Fittings:

• electric distribution box – 1x40/4E-0,03A (protective current switch), 1x10A &2x16A (automatic fuses)
• single fluorescent lights 1x40W – 4 each
• flush-mounted sockets 220 V– 6each
• flush-mounted switches 220 V – 2each
