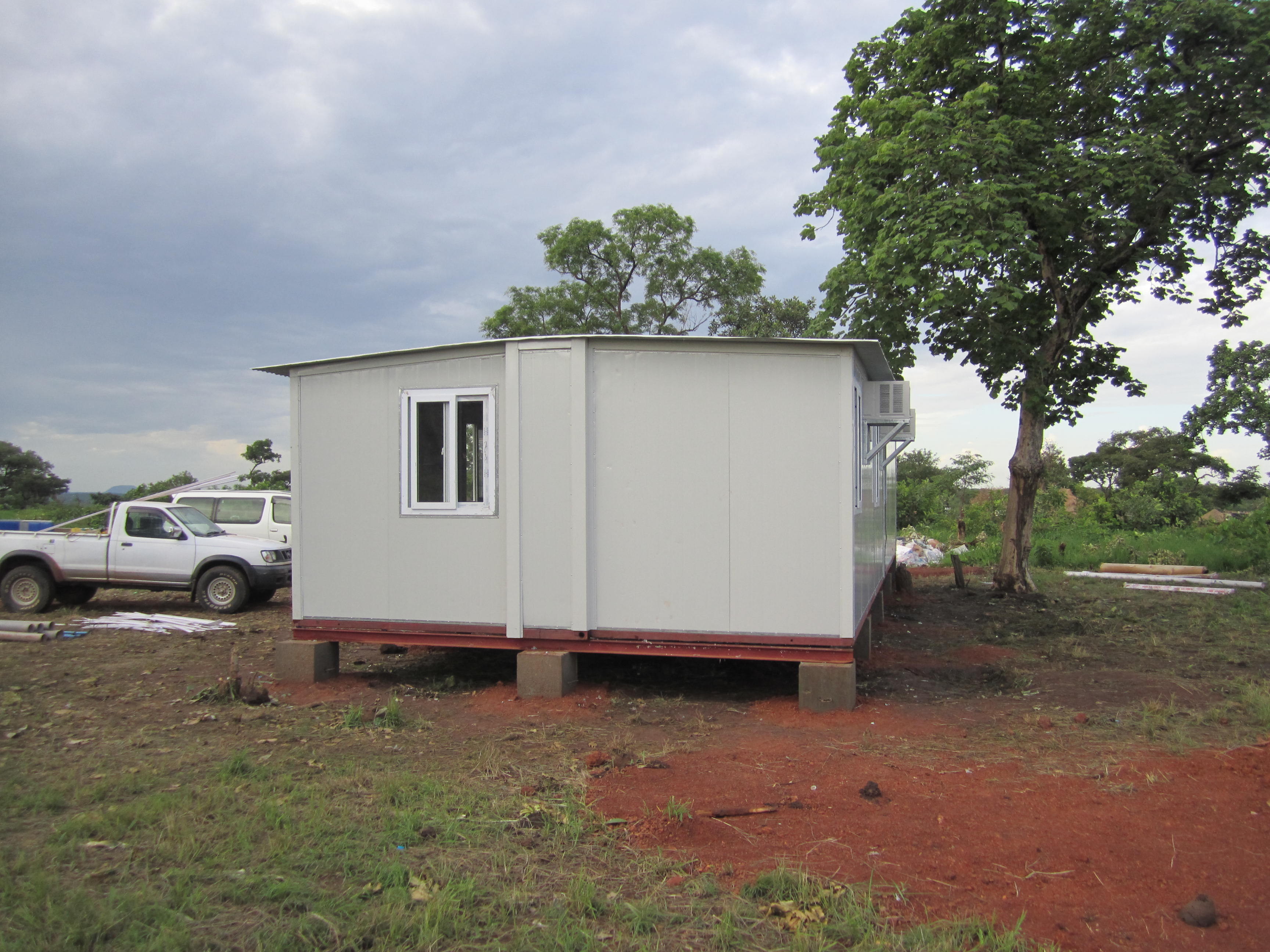

Prefabricated Emergency Shelter Temporary Relief House/ Light Gauge Steel Prefabricated Integrated Housing

Prefabricated Emergency Shelter Temporary Relief House/ Light Gauge Steel Prefabricated Integrated Housing

  • Prefabricated Emergency Shelter Temporary Relief House/ Light Gauge Steel Prefabricated Integrated Housing
  • Prefabricated Emergency Shelter Temporary Relief House/ Light Gauge Steel Prefabricated Integrated Housing
Prefabricated Emergency Shelter Temporary Relief House/ Light Gauge Steel Prefabricated Integrated Housing
Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: DEEPBLUE
Certification: AS/NZS,UL,AISI,
Model Number: DP-LT-08
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: 150-250USD/SQM
Packaging Details: Bare bundle / 40HQ
Delivery Time: 30-45days
Payment Terms: T/T,L/C,D/P,OA
Supply Ability: 12000houses/year
Contact Now
Detailed Product Description
Frame Mterial: Steel External Wall: EPS Sandwich Panel
Insulation Material: EPS Sandwich Panel Roof: EPS Sandwich Panel
Flooring: Laminate Flooring/PVC Carpet Door: Steel Security Door
Window: Aluminum Alloy/PVC Other Fittings: Toilet,washbasin,shower,kitchen Etc.
High Light:

emergency disaster shelters

,

emergency housing shelter

Prefabricated Emergency Shelter Temporary Relief House/ Light Gauge Steel Prefabricated Integrated Housing





Quick Detail:



Name

lotus house

Application

After-disaster housing

Color

blue, white, yellow, etc depend on customer’s request

Feature

1.rapid deployment

2.safe and durable

3.flexible design

Material

Sandwich panel and other parts material

Certificate

CE,ISO,SAA,ETC





Description:



Roof structure: light gauge steel truss system

Main structure: light gauge steel framing system

Cladding: PU insulation steel sandwich panel

interior lining: fiber cement board

Insulation: high-performance glass wool

Flooring: wooden or bamboo flooring

Ceiling: PVC ceiling panel.

Lighting: C.E, AS/NZS, UL standard light or others

Exterior Door: Aluminium sliding doors

Keyword: keyword





Applications:



Hotel, House, Office, Shop, etc.





Specifications



15mins quickly portable emergency shelter :

The shelters can be used attached or detached from the trucks, which means only one truck is required to use several shelters at the same time.

They’re made to be moved easily and quickly, and can be transported by ship, train, truck, air transport or helicopter.



DeepBlue Lotus house is a modular, multipurpose housing solution that will serve your needs and requirements in the best possible manner.



Prefabricated Emergency Shelter Temporary Relief House/ Light Gauge Steel Prefabricated Integrated Housing 0



 Prefabricated Emergency Shelter Temporary Relief House/ Light Gauge Steel Prefabricated Integrated Housing 1





Dimension and Weight



  • External Dimension (L*W*H):5790*4890*2520
  • Internal Dimension(L*W*H):  5690*4790*2415
  • Weight:2000kg per unit






Steel Framework


Material:  Mainframes are made from channel steel and RHS cube. Whole frames are well welded in the factory.



Surface working: all frames are painted Anti-rust paint.




 Floor



Composition:



  • External wainscot: 0.3mm steel sheet.
  • insulation filling:  EPS in a thickness of 30mm among steel transverse supports
  • steam blockade: PE foil in a thickness of 80μm
  • waterproof plywood panel in a thickness of 15mm for dry area
  • PVC floor covering in a thickness of 1.5mm.



Permitted loading: 3.50 KN/m²
Coefficient of thermal conductivity: K=0,032 W/MK





 Roof



Composition:



  • Roofing is made of 0.35mm color steel sheet
  • Roofing panel:  50mm EPS sandwich panel



Permitted loading: 1.00 KN/m²
Coefficient of thermal conductivity: K=0,030 W/m.k





 Façade wall



Wall panels are made of 50mm with a 10kg density EPS foam sandwich panel. All panels are fixed in factory and hinged with roofing panel. The thickness of steel for the panel is 0.35mm outside and 0.35mm inside.



Permitted loading: 0.60 KN/m²
Coefficient of thermal conductivity: K=0,028 W/m.K



Door



External door: steel, single fold, filled door with opening dimensions of 850X2000mm, furnished with a cylinder lock with 3 keys. The doorframe is made of galvanized steel, with overall dimensions of 900X2025mm, 50mm thick, made of painted sheet metal as the framework



Windows



Windows are made of aluminum, white color, with dimensions 900X1100mm, single glass in a thickness of 4mm.




Electricals Installation



Standard: according to VDE 100 regulations or CCC standard, UL standard.
Voltage: 220/380 V, 50 Hz Network connections: CEE-connection plus/socket, 3-pole 32 A, 220V~, mounted on the top frame in upper corners of shorter sidewall
Inner distribution system: NyM-J cables of suitable dimensions, flush-mounted Protection: protective current switch (40/4E-0,03A), automatic fuses (B-characteristics) of suitable power (10A, 16A)
Earthling: galvanized connector with a steel plate of dimensions 30x80mm welded on the bottom frame





Fittings:



  • electric distribution box – 1x40/4E-0,03A (protective current switch), 1x10A &2x16A (automatic fuses)
  • single fluorescent lights 1x40W – 4 each
  • flush-mounted sockets 220 V– 6each
  • flush-mounted switches 220 V – 2each

Company information:

Deepblue Smarthouse was founded in 2009, a high-tech enterprise which integrated the ability of design, production, sales, transportation, installation, and other services as a whole. We always committed to providing every family with a comfortable, safe, and affordable home, and also can provide a one-stop service for customers in this field. At present, we have completed many overseas real estate projects, large resort projects and so on. Our products have been exported to more than 60 countries and NGOs. With 59 patents of invention and utility models, we have built more than 5,000 houses and won many awards in design and architecture Prefabricated Emergency Shelter Temporary Relief House/ Light Gauge Steel Prefabricated Integrated Housing 2
