DEEPBLUE SMARTHOUSE is a comprehensive provider of prefab home solutions, offering a range of options for developers, builders, architects, and private buyers. They use metal frame construction, which can provide a durable and cost-effective solution for building homes.

Prefab homes are a type of housing that is built offsite in a factory and then assembled on location. They offer a number of benefits, including faster construction times, lower costs, and increased energy efficiency compared to traditional site-built homes. Metal frame prefab homes, in particular, are known for their durability and ability to withstand extreme weather conditions, making them a good choice for a wide range of locations and climates.

Quick Detail:

Description:

Roof structure: light gauge steel truss system

Main structure: light gauge steel framing system

Cladding: PU insulation steel sandwich panel

interior lining: fiber cement board

Insulation: high-performance glass wool

Flooring: wooden or bamboo flooring

Ceiling: PVC ceiling panel.

Lighting: C.E, AS/NZS, UL standard light or others

Exterior Door: Aluminium sliding doors

Keyword: keyword

DeepBlue Lotus House: The Ultimate Modular Housing Solution

If you're looking for a modular, multipurpose housing solution that can serve your needs and requirements in the best possible manner, look no further than the DeepBlue Lotus House. This innovative housing system is designed to provide you with the comfort and convenience of a traditional home while also being flexible, adaptable, and eco-friendly.

Specifications.

The DeepBlue Lotus House is incredibly portable and easy to set up, with each shelter taking only 15 minutes to assemble. They can be used either attached or detached from trucks, which means only one truck is needed to transport several shelters simultaneously. These shelters are designed to be moved quickly and easily, making them ideal for emergency situations where time is of the essence. They can be transported by ship, train, truck, air transport, or helicopter.

The DeepBlue Lotus House is more than just an emergency shelter; it's a fully functional and versatile housing solution that can be customized to meet your specific needs. It features a modular design that allows for easy expansion and customization, so you can add or remove sections as required.

The houses are constructed using high-quality materials that are environmentally friendly and energy-efficient. They're built to withstand extreme weather conditions, including earthquakes, hurricanes, and typhoons.

Applications:

People can use it as Hotel, House, Office, Shop and other house you like.

Specifications

15mins quickly portable emergency shelter :

The shelters can be used attached or detached from the trucks, which means only one truck is required to use several shelters at the same time.

They’re made to be moved easily and quickly, and can be transported by ship, train, truck, air transport or helicopter.

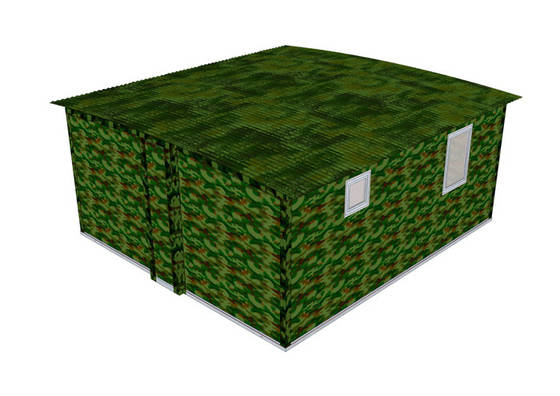

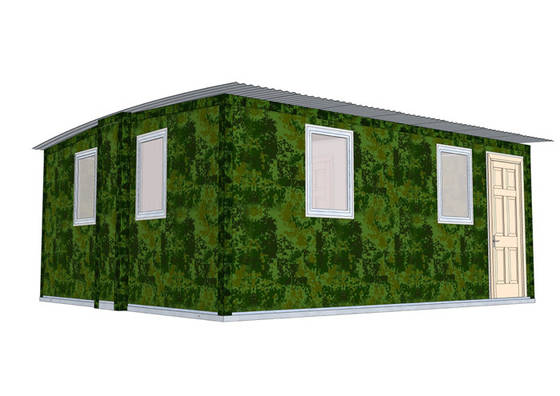

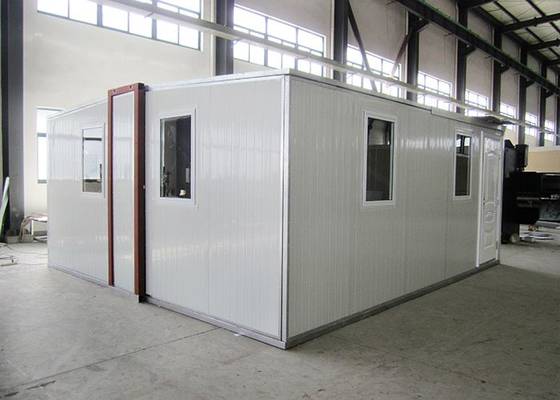

DeepBlue Lotus house is a modular, multipurpose housing solution that will serve your needs and requirements in the best possible manner.



The working system

Dimension and Weight

• External Dimension (L*W*H):5790*4890*2520
• Internal Dimension(L*W*H):  5690*4790*2415
• Weight:2000kg per unit

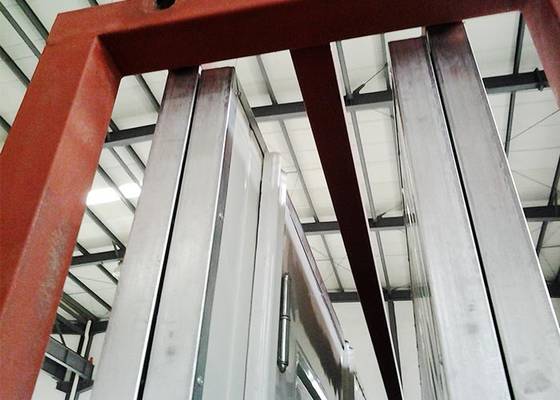

Steel Framework


Material:  Mainframes are made from channel steel and RHS cube. Whole frames are well welded in the factory.

Surface working: all frames are painted Anti-rust paint.

 Floor

Composition:

• External wainscot: 0.3mm steel sheet.
• insulation filling:  EPS in a thickness of 30mm among steel transverse supports
• steam blockade: PE foil in a thickness of 80μm
• waterproof plywood panel in a thickness of 15mm for dry area
• PVC floor covering in a thickness of 1.5mm.

Permitted loading: 3.50 KN/m²
Coefficient of thermal conductivity: K=0,032 W/mk

 Roof

Composition:

• Roofing is made of 0.35mm color steel sheet
• Roofing panel:  50mm EPS sandwich panel

Permitted loading: 1.00 KN/m²
Coefficient of thermal conductivity: K=0,030 W/m.k

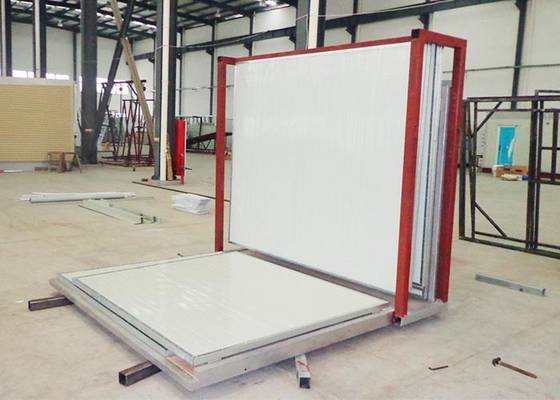

 Façade wall

Wall panels are made of 50mm with a 10kg density EPS foam sandwich panel. All panels are fixed in the factory and hinged with a roofing panel. The thickness of steel for the panel is 0.35mm outside and 0.35mm inside.

Permitted loading: 0.60 KN/m²
Coefficient of thermal conductivity: K=0,028 W/m.K

Door

External door: steel, single fold, filled door with opening dimensions of 850X2000mm, furnished with a cylinder lock with 3 keys. The doorframe is made of galvanized steel, with overall dimensions of 900X2025mm, 50mm thick, made of painted sheet metal as the framework

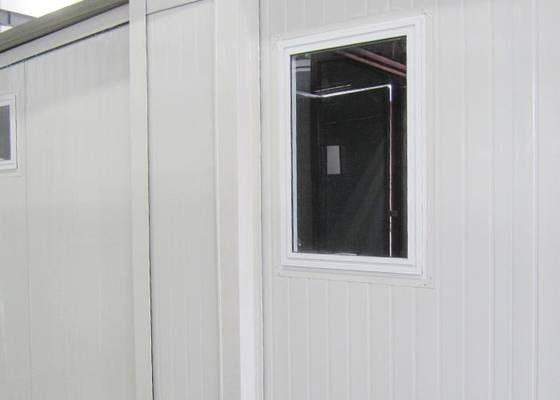

Windows

Windows are made of aluminum, white color, with dimensions 900X1100mm, single glass in a thickness of 4mm.

Electricals Installation

Standard: according to VDE 100 regulations or CCC standard, UL standard.
Voltage: 220/380 V, 50 Hz Network connections: CEE-connection plus/socket, 3-pole 32 A, 220V~, mounted on the top frame in upper corners of shorter sidewall
Inner distribution system: NyM-J cables of suitable dimensions, flush-mounted Protection: protective current switch (40/4E-0,03A), automatic fuses (B-characteristics) of suitable power (10A, 16A)
Earthling: galvanized connector with a steel plate of dimensions 30x80mm welded on the bottom frame

Fittings:

• electric distribution box – 1x40/4E-0,03A (protective current switch), 1x10A &2x16A (automatic fuses)
• single fluorescent lights 1x40W – 4 each
• flush-mounted sockets 220 V– 6each
• flush-mounted switches 220 V – 2each
