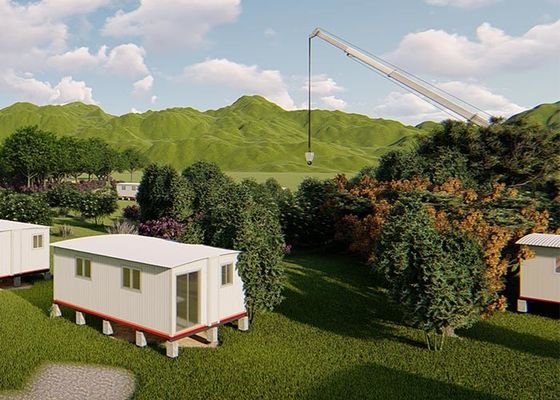

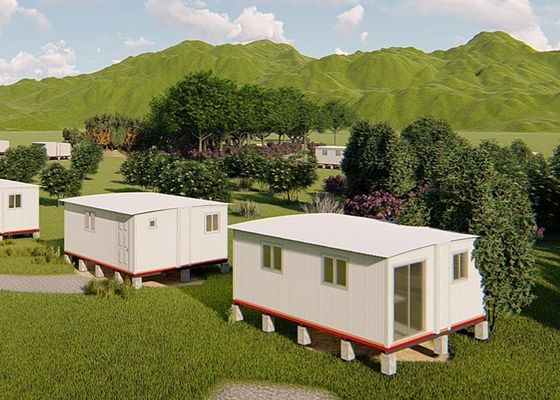

Prefabricated Fordable Portable Emergency Shelter / Light Steel Frame House

Prefabricated Fordable Portable Emergency Shelter / Light Steel Frame House

Quick Detail:

In the realm of modern architecture and housing solutions, innovation knows no bounds. DEEPBLUE SMARTHOUSE, a trailblazer in the field of modular construction, has unveiled an exceptional creation that redefines the way we think about housing – the Lotus House. This marvel of design takes its name from the graceful bloom of a lotus flower, embodying a blend of beauty, affordability, and versatility.

The Lotus House is a revolutionary concept in modular housing, offering a rapid and cost-effective solution for various accommodation needs. Designed with flexibility in mind, it serves as an ideal choice for employee dormitories, temporary rentals, granny flats, and more. Its adaptability and ease of assembly have also made it a trusted choice in regions worldwide for emergency housing and military field operations.

What sets the Lotus House apart is DEEPBLUE's commitment to excellence in design. The company's exceptional team of designers has crafted over a dozen different layouts to cater to diverse environments and practical requirements. Let's delve deeper into the features and benefits that make the Lotus House an architectural marvel:

Description:

Roof: 50mm EPS Sandwich panel

Wall: 50mm EPS Sandwich panel

Door: Steel door

window: Aluminium window

Applications:

Hotel, House, Office, Shop, etc.

Specifications

15mins quickly portable emergency shelter :

The shelters can be used attached or detached from the trucks, which means only one truck is

required to use several shelters at the same time.

They’re made to be moved easily and quickly, and can be transported by ship, train, truck,

air transport or helicopter.

DeepBlue Lotus house is a modular, multipurpose housing solution that will serve your needs

and requirements in the best possible manner.


The working system

Dimension and Weight

• External Dimension (L*W*H):5790*4890*2520
• Internal Dimension(L*W*H):  5690*4790*2415
• Weight:2000kg per unit

Steel Framework


Material:  Mainframes are made from channel steel and RHS cube. Whole frames are well welded in the factory.

Surface working: all frames are painted Anti-rust paint.

 Floor

Composition:

• External wainscot: 0.3mm steel sheet.
• insulation filling:  EPS in a thickness of 50mm among steel transverse supports
• steam blockade: PE foil in a thickness of 80μm
• waterproof plywood panel in a thickness of 15mm for dry area
• PVC flooring in a thickness of 1.5mm.

Permitted loading: 3.50 KN/m²
Coefficient of thermal conductivity: K=0,032 W/mk

 Roof

Composition:

• Roofing is made of 0.35mm color steel sheet
• Roofing panel:  50mm EPS sandwich panel

Permitted loading: 1.00 KN/m²
Coefficient of thermal conductivity: K=0,030 W/m.k

 Façade wall

Wall panels are made of 50mm with a 10kg density EPS foam sandwich panel. All panels are fixed in the factory and hinged with a roofing panel. The thickness of steel for the panel is 0.35mm outside and 0.35mm inside.

Permitted loading: 0.60 KN/m²
Coefficient of thermal conductivity: K=0,028 W/m.K

Door

External door: steel, single fold, filled door with opening dimensions of 850X2000mm, furnished with a cylinder lock with 3 keys. The doorframe is made of galvanized steel, with overall dimensions of 900X2025mm, 50mm thick, made of painted sheet metal as the framework

Windows

Windows are made of aluminum, white color, with dimensions 900X1100mm, single glass in a thickness of 4mm.

Electricals Installation

Standard: according to VDE 100 regulations or CCC standard, UL standard.
Voltage: 220/380 V, 50 Hz Network connections: CEE-connection plus/socket, 3-pole 32 A, 220V~, mounted on the top frame in upper corners of the shorter sidewall
Inner distribution system: NyM-J cables of suitable dimensions, flush-mounted Protection: protective current switch (40/4E-0,03A), automatic fuses (B-characteristics) of suitable power (10A, 16A)
Earthling: galvanized connector with a steel plate of dimensions 30x80mm welded on the bottom frame

Fittings:

• electric distribution box – 1x40/4E-0,03A (protective current switch), 1x10A &2x16A (automatic fuses)
• single fluorescent lights 1x40W – 4 each
• flush-mounted sockets 220 V– 6each
• flush-mounted switches 220 V – 2each

Company information:

Deepblue Smarthouse was founded in 2009, a high-tech enterprise which integrated the ability of design, production, sales, transportation, installation, and other services as a whole. We always committed to providing every family with a comfortable, safe, and affordable home, and also can provide a one-stop service for customers in this field. At present, we have completed many overseas real estate projects, large resort projects, and so on. Our products have been exported to more than 60 countries and NGOs. With 59 patents of invention and utility models, we have built more than 5,000 houses and won many awards in design and architecture
