Building Smart Houses for the World!
 |
| Place of Origin: | NINGBO,CHINA |
| Brand Name: | DEEPBLUE |
| Certification: | AS/NZS,UL,AISI, |
| Model Number: | DP-B-9 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | 200-800USD/SQM |
| Packaging Details: | Bare bundle / 40HQ |
| Delivery Time: | 30-45days |
| Payment Terms: | T/T,L/C,D/P,OA |
| Supply Ability: | 12000houses/year |
| Frame Material: | 0.75mm/0.95mm/1.15mm Steel Frame With AZ150 Zinc Coating | External Wall: | 100 Or 50mm ALC Panel/WPC Board/fiber Cement |
|---|---|---|---|
| Insulation: | Glass Wool/EPS/XPS/PU Sandwich Panel | Ceiling Material: | MGOboard/ Gypsum Board+others |
| Floor: | Laminate/wooden/tile | Roofing: | EPS Sandwich Panel/steel Roofing/asphalt |
| Other Fitting: | Toilet, Washbasin,shower ,kitchen,etc | Door: | Metal Security Door/Pvc Sliding Door |
| High Light: | luxury beach bungalows,garden beach bungalows,beach house bungalow |
||

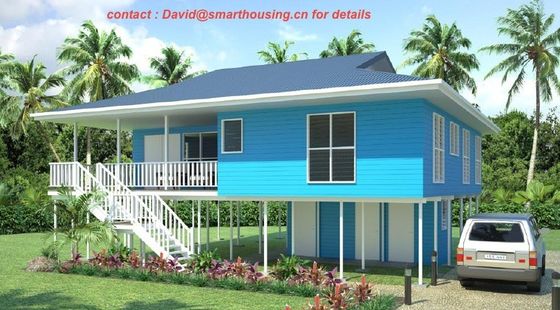

Fireproof Two-Story Prefab Beach Bungalow, Blue Home Beach Bungalows
Quick Detail:
|
Name |
Wooden bungalow |
Application |
Wooden bungalow for holiday living |
|
Color |
Yellow, white, etc depend on customer’s request |
Feature |
1.quickly to assemble on site 2.good earthquake-proof 3.green, energy save 4.design for customers |
|
Material |
light steel and other parts material |
Certificate |
CE,ISO,SAA,ETC |
Description:

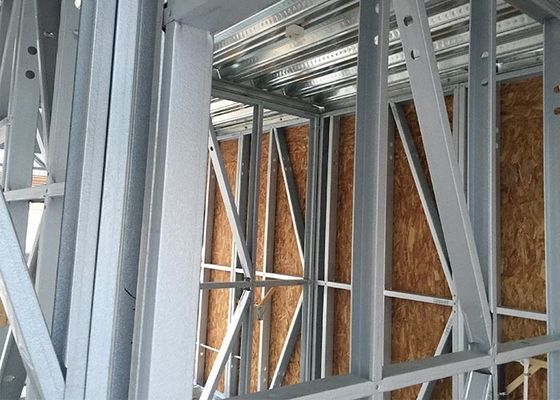

Main structure: Light Gauge Steel
Wall cladding: ALC panel/fibre cement cladding+MGO board/gypsum board
Insulation material: glass wool or also EPS/XPS/PU sandwich panel
Ceiling material: MGO board/gypsum board
Roof: EPS sandwich panel/steel roofing/asphalt shingle
Flooring: laminate flooring/wooden/PVC carpet
Door: steel security door/WPC or wooden door
Window: aluminum alloy/PVC
Other fittings: toilet, washbasin, shower, kitchen, etc.
Lifetime: 100 years for structure
Applications:
the toilet, washbasin, shower, kitchen, etc.
Specifications
light steel framing Bali prefab wooden houses:
ISO standard light gauge steel for main structure.one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance.green, energy saving. economically.
Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
Why Choose Light Gauge Steel Structure?
1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire resistance.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.

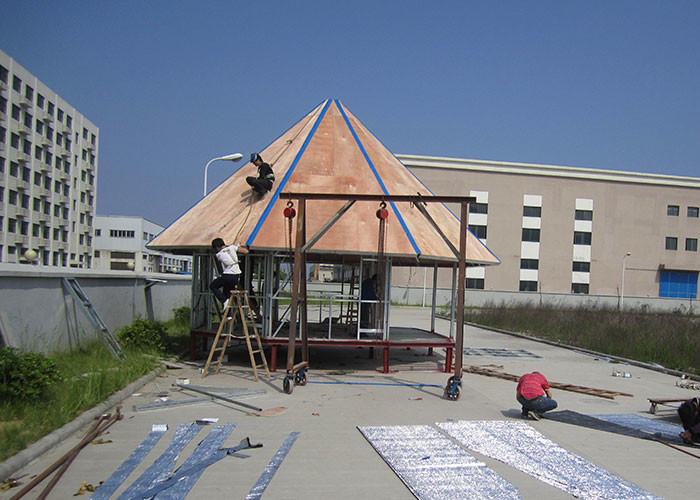

11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.
Material Configuration:
|
No. |
Item |
Materials |
Luxury house |
No. |
Item |
Materials |
Luxury house |
|
1 |
Foundation |
Fixing to Foundation |
chemical bolt |
6 |
Roof system |
roofing |
ceramic/asphalt shingle |
|
cushion tape between frame and foundation |
asphalt tape |
water-proof layer |
the heavy-duty asphalt layer |
||||
|
2 |
House Structure System |
The main structure for the house |
1.15mm thick *89mm wide Steel frame |
strength board |
15mm OSB board |
||
|
Floor Joist (if multi-stories) |
1.15mm steel joist |
Insulation/batt |
heavy duty glass wool |
||||
|
Connection |
self-drilling stress |
eaves board |
12mm MgO board |
||||
|
3 |
Exterior Wall |
Ext. wall Cladding |
50MM ALC PANEL or PU sandwich panel |
downpipe system |
PVC downpipe system |
||
|
Reinforce layer |
12mm OSB board |
7 |
Kitchen and bathroom |
Kitchen cabinet |
high-quality cabinet |
||
|
Vapor barrier |
DUPONT Vapor barrier sheet |
wall cabinet |
high-quality wall cabinet |
||||
|
Insulation/batt |
heavy duty glass wool |
countertop |
stone countertop |
||||
|
inter of ext .wall |
double 12mm plasterboard |
Sink |
high-quality stainless sink with faucet |
||||
|
4 |
Interior Partition wall |
siding |
double 12mm plasterboard |
toilet |
high-quality toilet |
||
|
cornering |
high quality plaster cornering |
bathtub |
high-quality bathtub |
||||
|
Skirting |
solid wood and tile |
shower |
high-quality shower |
||||
|
5 |
Floor System |
subfloor for ground floor (Wet area ) |
NULL |
8 |
Doors and windows, plumbing |
Exterior door |
security door |
|
Subfloor for other floors ( Wet area ) |
20mm fiber cement board |
windows |
double glass Alum. Windows |
||||
|
flooring for ground floor (dry area) |
wooden flooring |
interior door |
high-quality plywood door |
||||
|
flooring for ground floor ( wet area) |
high-quality ceramic tile |
hot&cold water pipe |
high-quality PPR PIPE |
||||
|
Flooring for other floors (wet area) |
high-quality ceramic tile |
Downpipe |
high-quality PVC downpipe |
||||
|
Flooring for other floors dry area |
wooden flooring |
9 |
Electrical system and multimedia |
telephone cable |
included |
||
|
Insulation |
glass wool |
TV. CABLE |
included |
||||
|
The ceiling for dry area |
12mm plasterboard |
internet cable |
included |
||||
|
the ceiling for wet area |
PVC ceiling |
electrical cables |
included |
||||
|
stairs (If have) |
steel stairs with armrest |
lighting |
ceiling light |
||||
|
notice: |
distribution box |
Included |
|||||
|
1 |
EX.W mean EX.works, pls find an explanation from Wikipedia |
switch |
Included |
||||
|
2 |
This price does not include foundation, cement works, and any other cost. |
11 |
Others |
INSTALLATION FEE |
Optional |
||
|
3 |
This price does not include the design fee. |
SUPERVISOR |
Optional |
||||
|
4 |
This price does not include any furniture and others. |
||||||
|
5 |
This price is only for listed materials |
||||||
|
6 |
All electrical is based on Chinese standard equipment. |
||||||
|
7 |
The total window area is no more than 15% of the building area. The ceiling height is calculated 2.5m. |
||||||
|
8 |
The final price needs to be confirmed based on final drawings and order-confirm-letter. |
||||||
|
9 |
If you have any questions, pls contact DEEPBLUE. |
||||||
