|Place of Origin:||NINGBO,CHINA|
|Certification:||ISO9001, CE, AU/NZS|
|Model Number:||VILLA 9|
|Minimum Order Quantity:||1 SET|
|Packaging Details:||Bare bundle / 40HQ|
|Delivery Time:||30-45 days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||12000 houses/year|
|Frame Material:||0.75 Mm/0.95 Mm/1.15 Mm Steel Frame With AZ150 Zinc Coating||External Wall:||100 Or 50 Mm ALC Panel/WPC Board/fiber Cement|
|Insulation:||Glass Wool/EPS/XPS/PU Sandwich Panel||Ceiling Material:||PVC Panel/ Gypsum Board+others|
|Door:||Metal Security Door/PVC Sliding Door||Roofing:||EPS Sandwich Panel/steel Roofing/asphalt|
|Floor:||Laminate Floor/wooden Floor/tile||Other Fitting:||Toilet, Washbasin, Shower ,kitchen ,etc|
WPC Cladding Prefab House Kits,
Cyclone Proof Prefab House Kits
WPC Cladding Pre Manufactured Homes Cyclone Proof Modern Prefab Home Kits
|Name||prefabricated villa||Application||Villa for living|
1.quickly to assemble on-site;
|Material||light steel and other parts material||Certificate||CE,ISO,SAA,ETC|
House, Office, Villa, etc.
cost-efficient steel frame villa is made from a light steel framing system. the cladding is made by WPC. So it looks wooden house.
But this type of house is much more green and energy-saving than a normal wooden house.
The advantage of our wooden house kit is the following:
1. durable; the house can be designed for 100years lifetime
2. easy for assemble; the house can be erected within a couple of days
3. Green; Whole house is made of green material.
4. recyclable; 95% of house materials can be recycled.
5. low-carbon; It costs little energy to produce one house, save 90% carbon of traditional building;
6.earthqauke-proof: the house can resist over a 9-degree earthquake.
7.Cyclone-proof: the wooden house kit can be designed for 50m/s house
ISO standard light gauge steel for the main structure. fireproof, heat insulation, wind, and earthquake resistance.green, energy saving. also economically.

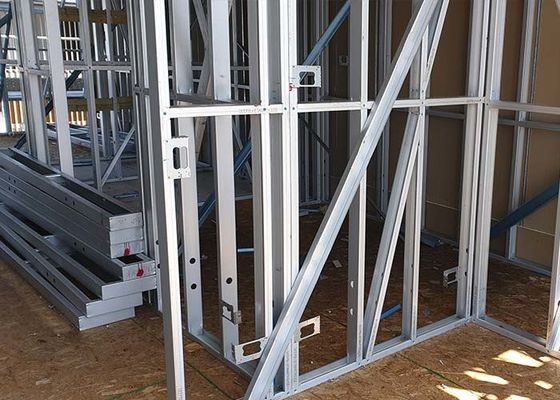

Introduction to the LGS (Light Gauge Steel) system:
LGS steel construction uses a triangle truss structure of cold-formed steel, its main wall uses cold-formed steel as frame, bolting makes the housing body tightly connected to the ground, with good ductility and anti-seismic performance. LGS steel construction’s seismic fortification is up to 9 degree, and steel structure house causes less damage in the earthquakes than other houses.
Cold-formed lightweight steel structure buildings adopt G550 high strength steel with good steel integrity and flexibility, which can resist 50m/s wind speed. Life and property will be well protected.
Light steel structure house is all composed of cold-formed light steel structure parts which adopt galvanized/aluminum-zinc and anti-corrosion cold rolling steel plate. This can effectively avoid being rusted during the construction and using steel structure parts and increase the lifespan to more than 90 years.
The effect of sound insulation is an important indicator for the assessment of residential. Light steel system walls formed by a light steel structure, insulation materials, and fiberboard have perfect sound insulation and shock absorption technology and meet the national standards for building sound insulation.
Using energy-efficient LGS steel wall system, respiratory function, it can adjust indoor air humidity. The roof with ventilation function, which can make the house internally over the formation of the flow of air, ensure that the roof ventilation and cooling of the internal demand. The light steel integrated housing span can reach 6 to 12 meters to provide a larger living space for residents and can also be freely divided. The integrated light steel building materials are green environmentally friendly and keep healthy.
|1||AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.|
|2||AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.|
|3||BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.|
|4||ENV1993-1-3 means Euro code 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.|
Company introduction :
Deepblue Smarthouse was founded in 2009, a high-tech enterprise which integrated the ability of design, production, sales, transportation, installation, and other services. We always committed to providing every family with a comfortable, safe, and affordable home, and can provide a one-stop service for customers in this field. At present, we have completed many overseas real estate projects, large resort projects, and so on. Our products have been exported to more than 60 countries and NGOs. With 59 patents of invention and utility models, we have built more than 5,000 houses and won many awards in design and architecture.
Production in DeepBlue factory:
How To Assemble:
1. Q: What is the advantage of this steel structure system house(compare with the traditional brick house)?
A: Long lifetime; Good earthquake-proof, Green and energy saving; Fast and easy to install etc……
2. Q: What is the lifetime for your houses?
A: The durable for the structure is more than 70 years.
3. Q: What is the intensity and thickness of your steel structure material?
A: All our steel structure intensity is S550. We can provide 0.75mm,0.95mm,1.15mm steel material.
4. Q: How about your production equipment and structure design software?
A: Our production equipment is the most advanced import from New-Zealand. Our structure design software also imports from abroad-PRO DESIGN.
5. Q: What are the main technical data of your houses?
A: We can send you the specification and technology details.
If You Need: prefabricated kit home; prefab kit home. steel structure homes.steel frame house
Only Need You To Provide Us: house area, how many floors and bedrooms, luxury or normally, or low-cost configuration.
We Can Provide You: villa; bungalow; low-cost house; granny flat; apartment etc.many style house.
Contact Person: Vincent
