Luxurious Prefabricated Steel House Kits Light Steel Frame Good Earthquake Proof

Luxurious Prefabricated Steel House Kits Light Steel Frame Good Earthquake Proof

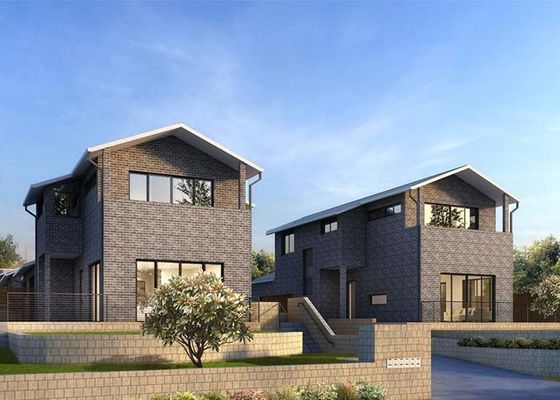

Grace house(906 10 sets Townhouses)

Name: Grace house
Type: 10 sets Townhouse
Project location: Sydney, Australia
Area: Over 1073 sqm
Project date: 2019
Supplier:DeepBlue

Quick Detail:

Description:

Main structure: Light Gauge Steel

Wall material: ALC panel/fibre cement cladding+MGO board/gypsum board

Insulation material: Insulation material

Ceiling material: MGO board/gypsum board

Floor/foundation material: laminate flooring/wooden/PVC carpet

Door: steel security door/WPC or plywood door

Window: aluminum alloy/PVC

Roofing: EPS sandwich panel/steel roofing/asphalt shingle

Other fittings: toilet,washbasin,shower,kitchen etc.

Life time: 100 years for structure

Applications:

House, Office, Villa,etc.

Specifications:



Product Description

DeepBlue steel structural prefab villa is based on light gauge steel frame system with high performance finishing materials. The whole house can be assembled within couple of hours by 4workers. the materials are the following:

1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard. the structure can be design to resist 50m/s wind and 9degree earthquake.

2. Roof structure: 89mm light gauge steel truss system.

3. Chassis : 89mm light gauge steel flooring chassis

4. flooring: 18mm fiber cement board with vapor barrior and bamboo flooring or wooden flooring , pvc carpet etc.

5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration

6. interior lining: 9m fiber cement board ,water-proof ,termite-proof ,security and healthy

7. ceiling: 8mm pvc ceiling panel

8. insulation: 89mm glasswool insulation with good sound proof performance.

9.windows: PVC sliding windows

10.exterior door: high quality aluminim sliding windows

11.interior door: painted wood door

12.bathroom: shower, wash basin, toilet inculded

13. roofing: corrugated steel roofing with gutter system

14. veranda deck: W.P.C veranda flooring.

ISO standard light gauge steel for main structure.fireproof,heat insulation,wind and earthquake resistance.green,energy save. also economically.

Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.[0.75~1.2mm , Z275galvanized steel profile, strength:550Mpa ]

2)Earthquake resistance: mix more than 8 grades.

3)Wind resistance:max 60m/s.

4)Fire resistance:all the materials used can be fire resistance.

5)Snow resistance:max 2.9KN/m²as required

6)Heat insulation:100 mm in thickness can match 1 m thickness of brick wall.

7)High acoustic insulation:60db of exterior wall 40db of interior wall

8)Insect prevention: Free from the damages by insects, such as white ants

9)Ventilation:a combination of natural ventilation or air supply keep the indoor air fresh and clean

10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorate materials.

11)Installation:the average is one worker one day install one SQM.

12)Installation guide:dispatch engineer to guide on site.

Production in DeepBlue factory:

Design code:

(1)AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.

(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.

(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.

(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

If You Need: prefabricated kit home; prefab kit home.steel structure homes.steel frame house

Only Need You To Provide Us:house area,how many floor and bedrooms,luxury or normally,or low cost configuation.

We Can Provide You:villa;bungalw;low cost house;granny flat;apartment etc.many buildings.

Your first choice,Deepblue Prefabricated house in China.
