Beautiful Prefab Tiny House Garden Studio Cabin With Deck Modular Homes

Place of Origin Zhejiang, China (Mainland)
Brand Name Deepblue
Certification ISO9001, CE, AU/NZS, ICC, EN1090
Model Number EH-07
Minimum Order Quantity 4 sets
Price Negotiation
Packaging Details 40'HQ and 20`GP sea container.
Delivery Time 30~45 days
Payment Terms L/C, T/T, Western Union
Supply Ability 15000 Square Meter/Square Meters per Month garden office

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Use Hotel, House, Kiosk,Booth, Office, Shop, Villa, Workshop,Plant Design Customer Design Avaliable
Color Almost Any Wooden Color Movable Optional
Ceiling Material CFC Board/ Gypsum Board+others Other Fitting Toilet, Washbasin,shower ,kitchen,etc
Insulation Glass Wool/EPS/XPS/PU Sandwich Panel Frame Mterial 0.75mm/0.95mm/1.15mm Steel Frame With AZ150 Zinc Coating
Cladding WPC And Colorbond Windows Double Glass Windows
High Light

steel frame houses

,

modern modular homes

Leave a Message
Product Description

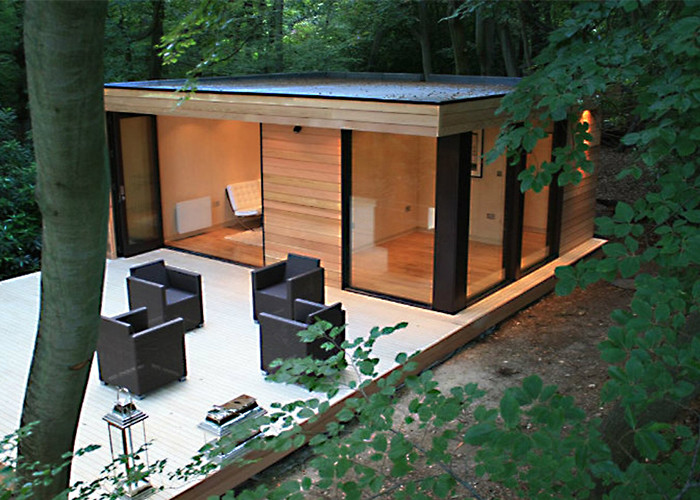

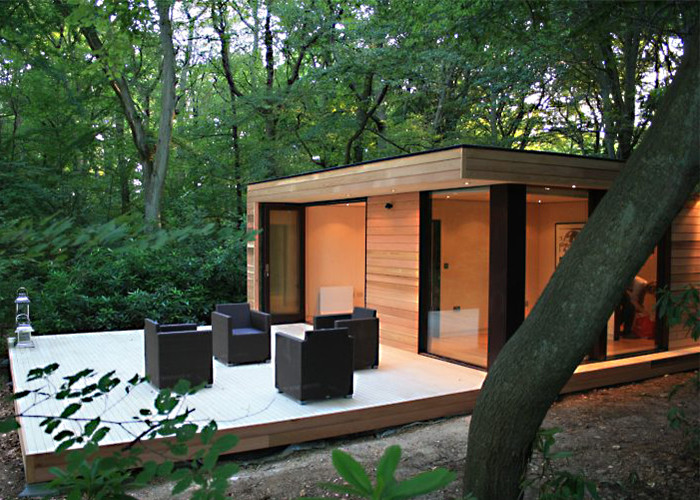

Beautiful Prefab Tiny House Garden Studio Cabin With Deck Modular Homes ​



EH-07
Beautiful Prefab Tiny House Garden Studio Cabin With Deck Modular Homes 0 1 bedrooms Beautiful Prefab Tiny House Garden Studio Cabin With Deck Modular Homes 1 1 bathrooms Beautiful Prefab Tiny House Garden Studio Cabin With Deck Modular Homes 2 1 living room Beautiful Prefab Tiny House Garden Studio Cabin With Deck Modular Homes 3 1 Kitchen Beautiful Prefab Tiny House Garden Studio Cabin With Deck Modular Homes 4 36m²



Experience the perfect blend of modern design and natural beauty with the Garden Studio EH-07 by DEEPBLUE. Whether you dream of a serene forest retreat, a lakeside sanctuary, or a tranquil courtyard haven, this studio is the ideal addition to your space. With one bedroom, one bathroom, one living room, and a fully equipped kitchen, EH-07 is the perfect garden studio for your needs, spanning a generous 36 square meters.



Beautiful Prefab Tiny House Garden Studio Cabin With Deck Modular Homes 5



Quick Detail:



Name Garden Studio EH-07 Application holiday living, working studio, yard studio
Color Yellow, white, dark color, etc depend on the customer’s request Feature 1.U.K engineer approved;
2.Earthquake, cyclone and fireproof;
3.100years life;
4.Green, Energy save
Material light steel frame and other parts material Certificate CE,ISO,SAA,ETC



Description:

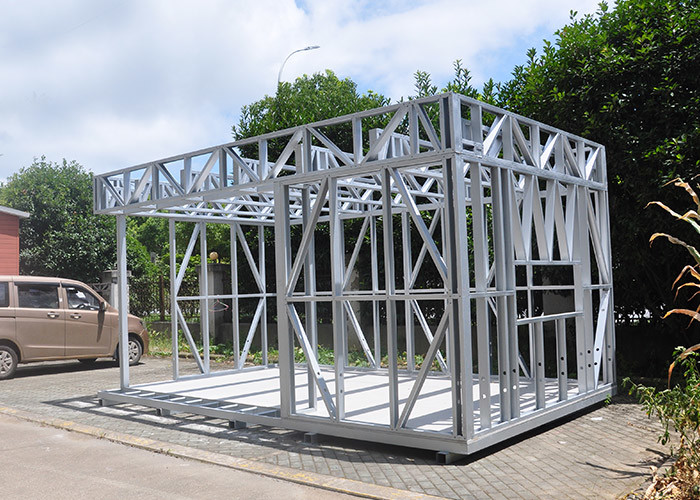

Main structure: Light Gauge Steel Frame
Wall cladding: WPC cladding
Insulation material: Glass wool/ Rock Wool
Ceiling material: Gypsum board+others
Roof: colorbond
Flooring: laminate flooring/wooden/PVC carpet
Door: steel security door/WPC or wooden door
Window: aluminum alloy window
Other fittings: toilet, washbasin, shower, kitchen, etc.
Lifetime: 100 years for structure


Applications:

the toilet, washbasin, shower, kitchen, study room etc.


Specifications:



No.
Item
Material
Specification
1
Foundation
Fixing to foundation
Chemical bolt
2
Structure
Steel frame wall
0.75/0.95/1.15mm steel wall
Roof truss
0.75/0.95/1.15mm steel truss
Joist (chassis)
0.75/0.95/1.15mm steel joist
3
Roofing system
Batten
35mm batten
Vapor barrier
Normal vapor barrier
Tile
Optional
Insulation
Glasswool
4
Ceiling system
Batten
22mm batten
Ceiling
Gypsum/MGO board, etc.
Insulation
Glasswool
5
Exterior wall
Ext. wall cladding
Optional
Vapor barrier
Normal vapor barrier
Insulation
Glasswool
6
Interior wall
Lining
Optional
Insulation
Glasswool
7
Floor system
Underneath of floor
CFC/ALC board, etc.
Flooring
Optional
Insulation
Glasswool
8
Kitchen
(if in plan)
Kitchen cabinet
Optional
Counter top
Optional
Sink
Optional
9
Bathroom
(if in the plan)
Toilet
Optional
Washbasin
Optional
Shower
Optional
10
Doors and windows
Exterior door
Optional
Interior door
Optional
Window
Optional

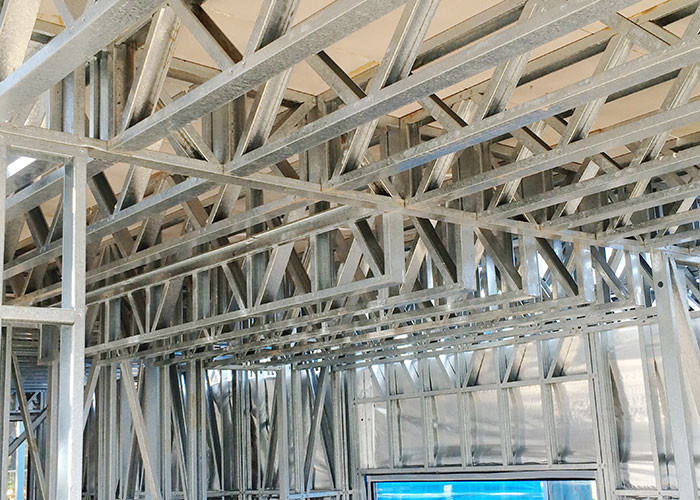

Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.

Beautiful Prefab Tiny House Garden Studio Cabin With Deck Modular Homes 6
Design code:

(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.



Product





Beautiful Prefab Tiny House Garden Studio Cabin With Deck Modular Homes 7

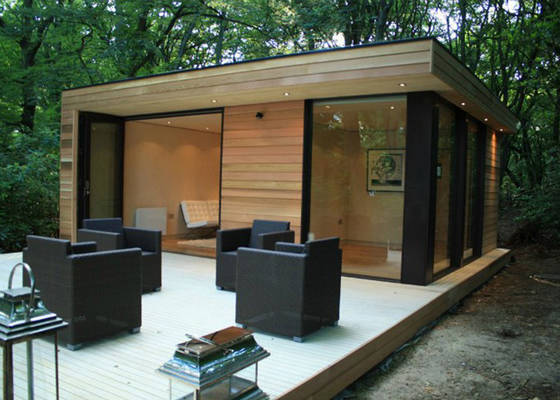

EH-07 provides all the elements you need to make your stay comfortable and convenient. Inside, you'll find a spacious living room, a cozy bedroom for relaxation, a modern bathroom, and a well-equipped kitchen. The 36-square-meter space is cleverly designed to maximize functionality and comfort, making it the perfect retreat for various purposes, such as a creative workspace or a cozy dwelling.



EH-07's design flexibility means that it is suitable for placement in a range of natural settings. Whether you seek the tranquility of a forest, the serenity of a lakeside location, or the charm of a courtyard, this garden studio seamlessly blends with the environment. It allows you to feel at one with the natural world, all while enjoying the comforts of a well-designed living space.



In conclusion, the Garden Studio EH-07 is not just a structure; it's an experience waiting to be embraced. With DEEPBLUE's innovative design, attention to detail, and the ability to integrate seamlessly into the natural world, this garden studio is your opportunity to forge a deeper connection with the environment. Whether you're seeking a peaceful retreat or a creative sanctuary, EH-07 is your key to experiencing the beauty of nature up close. Make EH-07 your own and let the outdoors become an integral part of your living space.



Company Introduction



Deepblue Smarthouse was established in the city of NINGBO, CHINA in 2009, thriving and expanding globally being located just 15 minutes from one of the world’s busiest ports - PORT NINGBO. Providing clients with dynamic, superior & cost-effective solutions utilizing light gauge steel frames for housing and commercial projects. Whilst many claims to be professional housing manufacturers, Deepblue never rest, but stand firm with partners and customers delivering turnkey solutions that are code compliant for your country, this commitment to excellence has taught, that the long term knowledge and experience, makes Deepblue the leader in this industry.



Deepblue Smarthouse is focused on providing its client with professional smart housing solutions through products that result in unprecedented customer satisfaction and long-term relationships that allow us as partners, to deliver smart houses for the world!



Beautiful Prefab Tiny House Garden Studio Cabin With Deck Modular Homes 8

Our Services



If You Need: prefabricated kit home; prefab kit home. steel structure homes.steel frame house, light steel structure, Tiny House on wheels, social house, apartment building, commercial building...



Only Need You To Provide Us: house area, how many floor and bedrooms, luxury or normally, or low-cost configuration.



We Can Provide You: villa; bungalow; low-cost house; granny flat; apartment etc. many style house.

Beautiful Prefab Tiny House Garden Studio Cabin With Deck Modular Homes 9
