Small Family Beautiful Steel Structure Prefabricated light steel Homes

Small Family Beautiful Steel Structure Prefabricated light steel Homes

  • Small Family Beautiful Steel Structure Prefabricated light steel Homes
  • Small Family Beautiful Steel Structure Prefabricated light steel Homes
  • Small Family Beautiful Steel Structure Prefabricated light steel Homes
  • Small Family Beautiful Steel Structure Prefabricated light steel Homes
Small Family Beautiful Steel Structure Prefabricated light steel Homes
Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: DEEPBLUE
Certification: AS/NZS,UL,AISI,
Model Number: Solomon18
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: 200-400USD/SQM
Packaging Details: Bare bundle / 40HQ
Delivery Time: 30-45days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 12000houses/year
Contact Now
Detailed Product Description
External Wall: 100 Or 50mm ALC Panel/WPC Board/fibre Cement Insulation: Glass Wool/EPS/XPS/PU Sandwich Panel
Ceiling Material: MGOboard/ Gypsum Board+others Floor/foundation Material: Laminate/wooden/tile
Door: Metal Security Door/Pvc Sliding Door Window: Aluminum Alloy/PVC
High Light:

contemporary prefab homes

,

bungalow modular homes

Small Family beautiful Steel structure prefabricated Homes

Quick Detail:


Name Bungalow homes Application Bungalow homes for living
Color depend on customer’s request Feature

1.earthquake,cyclone proof
2.100 years life
3.green,Energy save

Material light steel and other parts material Certificate CE,ISO,SAA,ETC

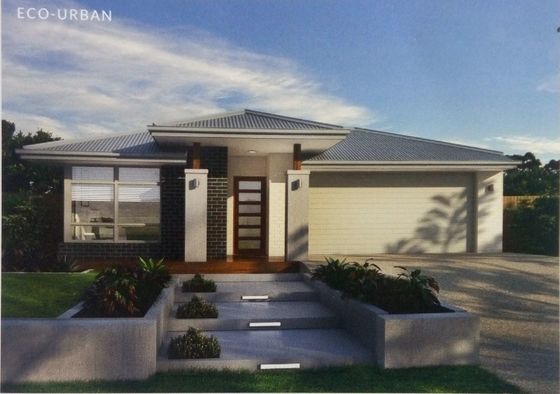

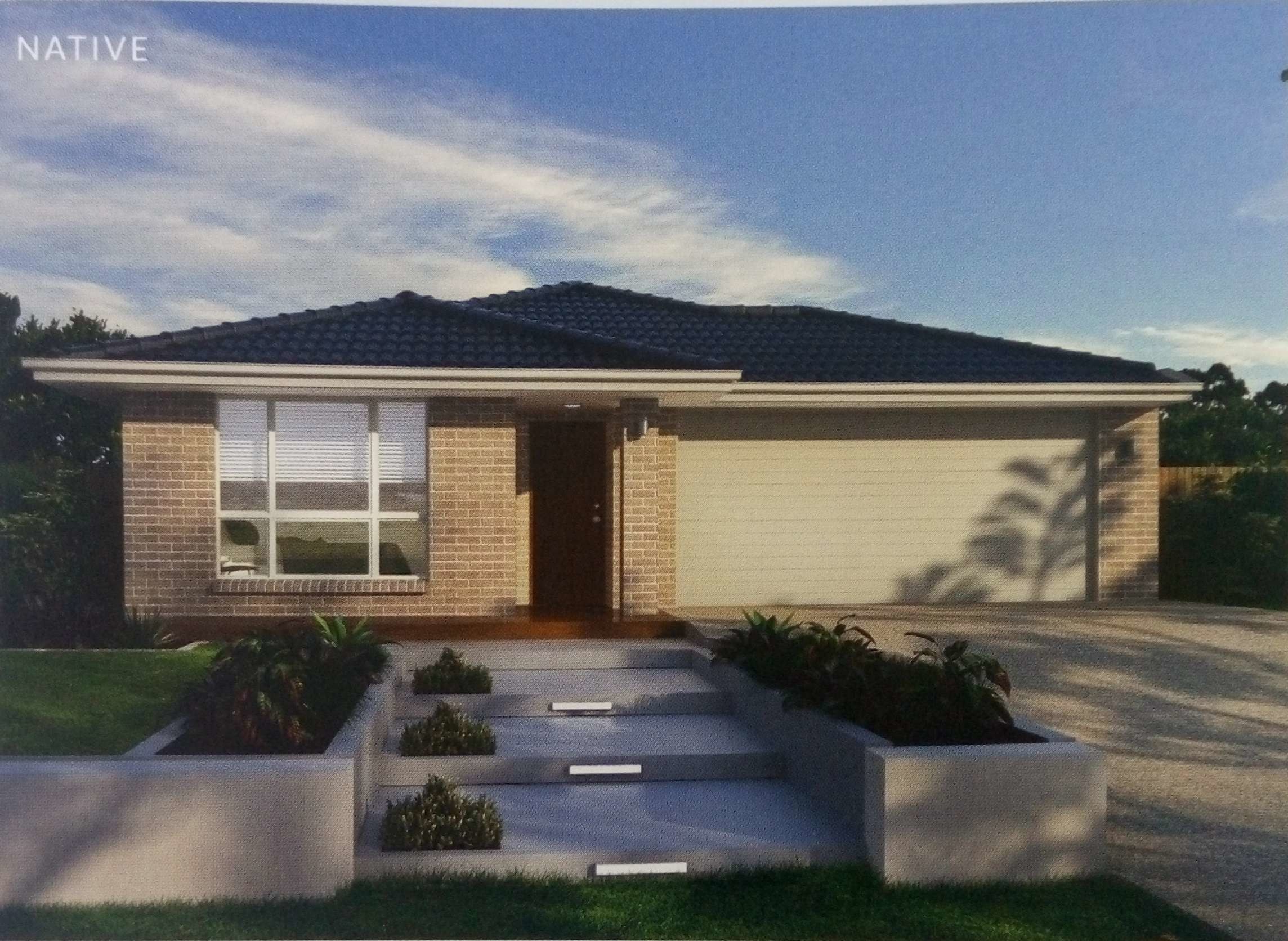

Small Family Beautiful Steel Structure Prefabricated light steel Homes 0Small Family Beautiful Steel Structure Prefabricated light steel Homes 1



Other fittings:toilet,washbasin,shower,kitchen etc.

Applications:

House, Office, Shop, hotel ,etc.


Why Choose Light Gauge Steel Structure ?


1) Lifetime for structure: 100 years.
2) Earthquake resistance: mix more than 8 grades.
3) Wind resistance: max 60m/s.
4) Fire resistance: all the materials used can be fire resistance.
5) Snow resistance: max 2.9KN/m²as required
6) Heat insulation: 100 mm in thickness can match 1 m thickness of brick wall.
7) High acoustic insulation: 60db of exterior wall 40db of interior wall
8) Insect prevention: free from the damages by insects, such as white ants
9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorate materials.
11) Installation: the average is one worker one day install one SQM.
12) Installation guide: dispatch engineer to guide on site.


detailed information:

MEASUREMENTS
Ground Floor 13.3sq 123.6㎡
Garage 3.9sq 36.5㎡
Outdoor Living 1.0sq 9.2㎡
Porch 0.3sq 2.2㎡
Total Area 18.5sq 171.5㎡

Minimum Lot Width 12.5m
Home Length 17.1m
Home Width 11.2m

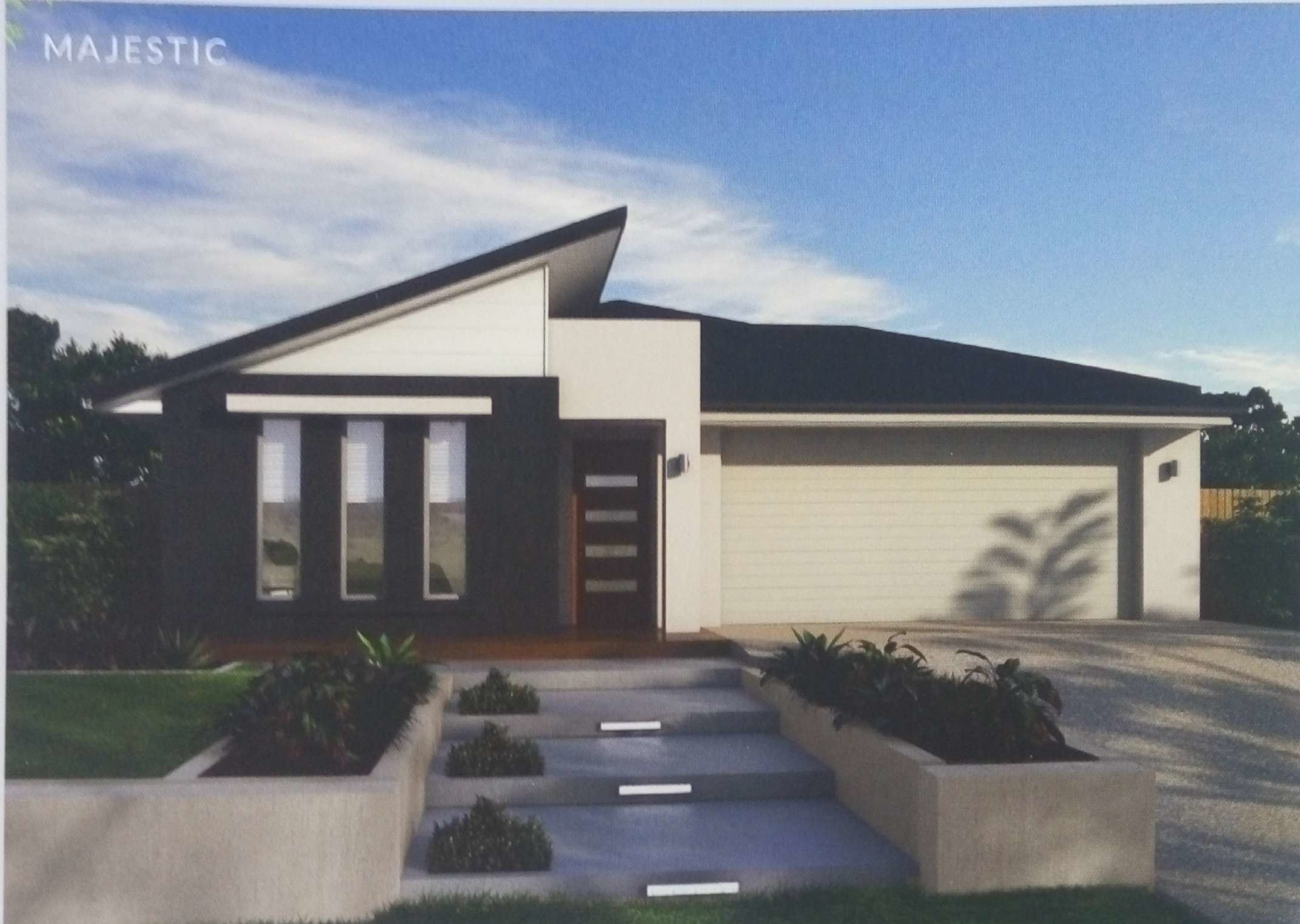

Small Family Beautiful Steel Structure Prefabricated light steel Homes 2
Design Code:


1) AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
2) AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
3) BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.
4) ENV1993-1-3 means Euro code 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.


Company information:
Deepblue Smarthouse was founded in 2009, a high-tech enterprise which integrated the ability of design, production, sales, transportation, installation and other services as a whole. We always committed to providing every family with a comfortable, safe and affordable home, and also can provide one-stop service for customers in this field. At present, we have completed many overseas real estate projects, large resort projects and so on. Our products have been exported to more than 60 countries and NGO. With 59 patents of invention and utility models, we have built more than 5,000 houses and won many awards in design and architecture

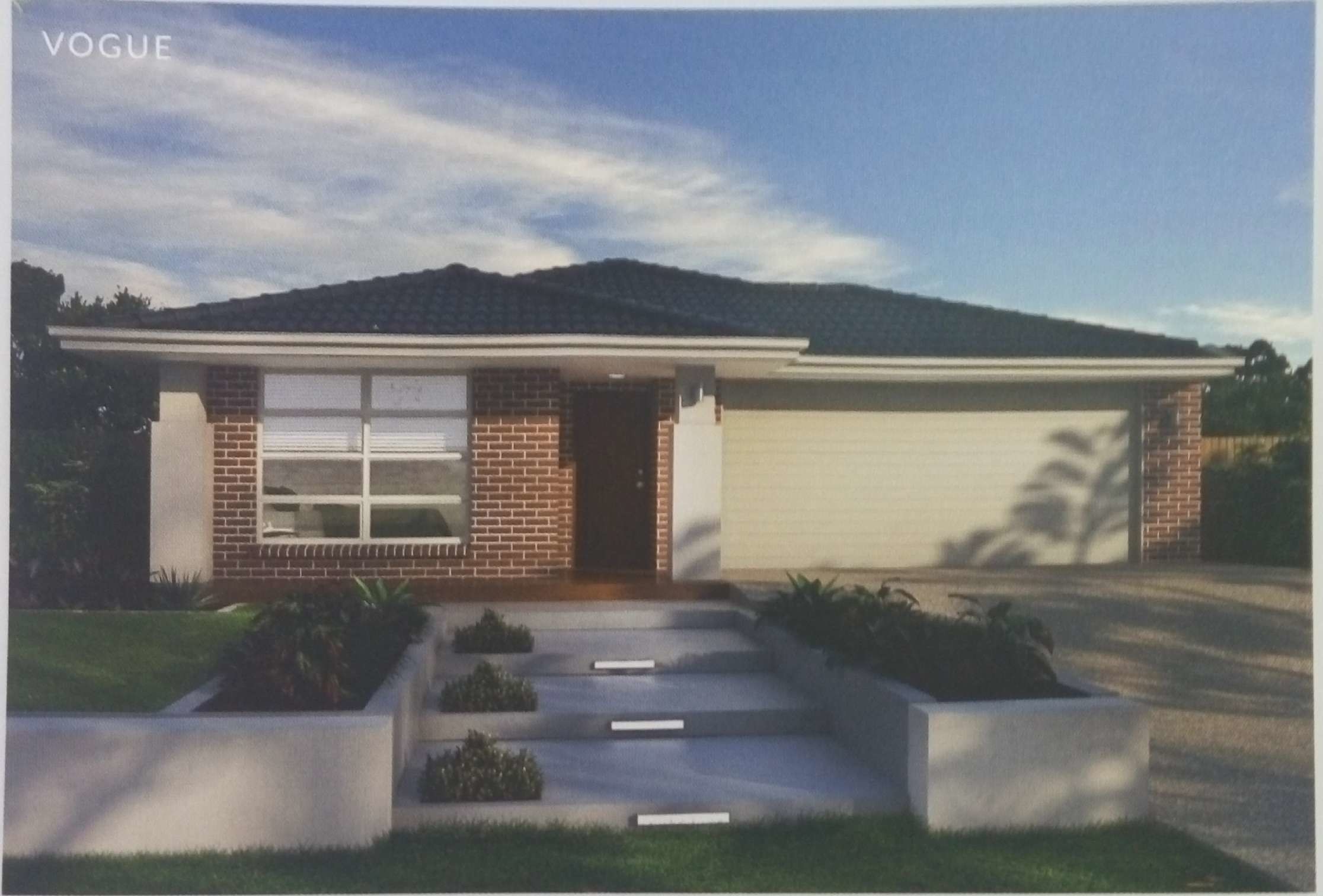

Small Family Beautiful Steel Structure Prefabricated light steel Homes 3Small Family Beautiful Steel Structure Prefabricated light steel Homes 4

Our Services:

If You Need: prefabricated kit home; prefab kit home.steel structure homes.steel frame house

Only Need You To Provide Us:house area,how many floor and bedrooms,luxury or normally,or low cost configuation.

We Can Provide You:villa;bungalw;low cost house;granny flat;apartment etc.many style house.

FAQ:

1. Q: What is the advantage of this steel structure system house(compare with the traditional brick house)?
A:.Long lifetime;Good earthquake proof,Green and energy saving;Fast and easy to install etc……
2. Q:What is lifetime for your houses?
A:The durable for structure is more than 70 years.
3. Q:What is the intensity and thickness for your steel structure material?
A:All our steel structure intensity are S550. We can provide 0.75mm,0.95mm,1.15mm steel material.
4. Q:How about your production equipment and structure design software?
A:Our production equipment are the most advanced import from New-Zealand. Our structure design software also import from abroad-PRO DESIGN.
5. Q:What are the main technical data of your houses?
A:We can send you the specification and technology details.
