Mutifunction Modernization Prefabricated Houses Light Steel Structure Social Housing

Place of Origin NINGBO,CHINA
Brand Name DEEPBLUE
Certification AS/NZS,UL,AISI,
Model Number SCH-3
Minimum Order Quantity 1SET
Price 430-680USD/SQM
Packaging Details Bare bundle / 40HQ
Delivery Time 30-45days
Payment Terms T/T,L/C,D/P,OA
Supply Ability 12000houses/year
Product Details
Frame Mterial 0.75mm/0.95mm/1.15mm Steel Frame With AZ150 Zinc Coating External Wall 100 Or 50mm ALC Panel/WPC Board/fibre Cement
Insulation Glass Wool/EPS/XPS/PU Sandwich Panel Ceiling Material MGOboard/ Gypsum Board+others
Floor Laminate/wooden/tile Door Metal Security Door/Pvc Sliding Door
Roofing EPS Sandwich Panel/steel Roofing/asphalt Other Fitting Toilet, Washbasin,shower ,kitchen,etc
High Light

prefab home kits

,

contemporary prefab homes

Leave a Message
Product Description

Muti_function modernization prefabricated light steel structure social housing



Quick Detail:



Name social housing Application social housing for living
Color Yellow,white,etc depend on customer’s request Feature

1.earthquake,cyclone proof

2.100 years life

3.green,Energy save

Material light steel and other parts material Certificate

CE,ISO,SAA,ETC



Applications:



House, Office, Sentry Box,Guard House, Shop, Villa ,etc

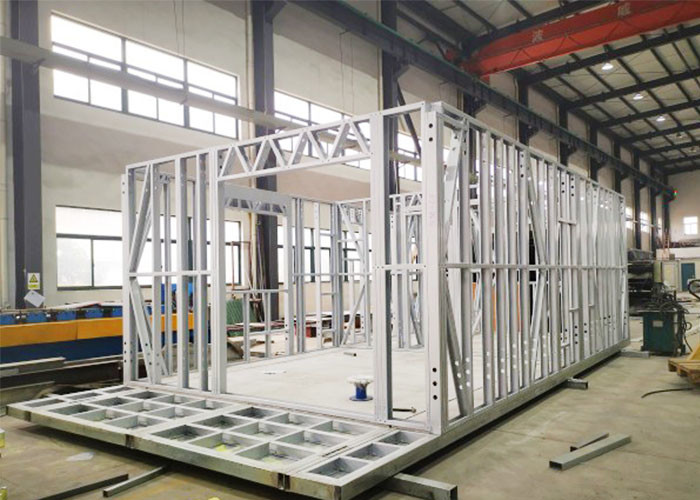

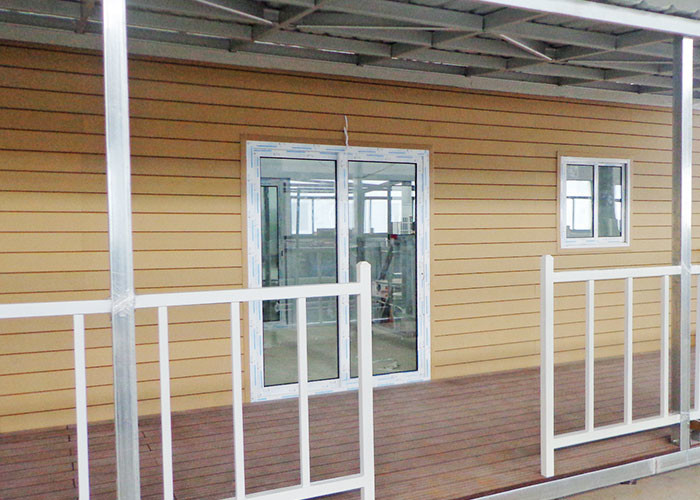

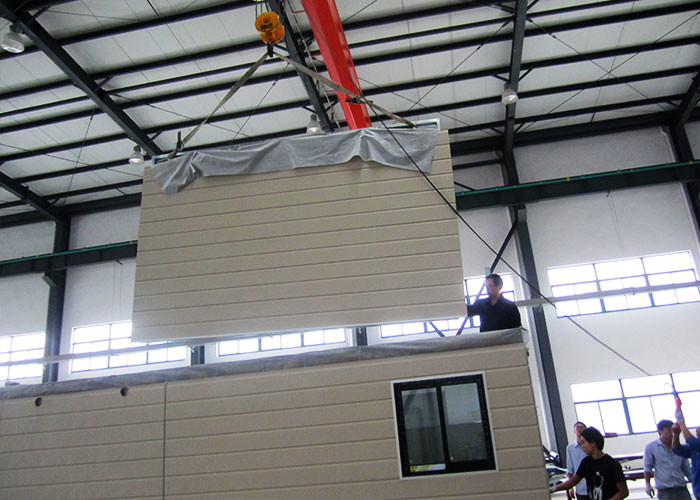

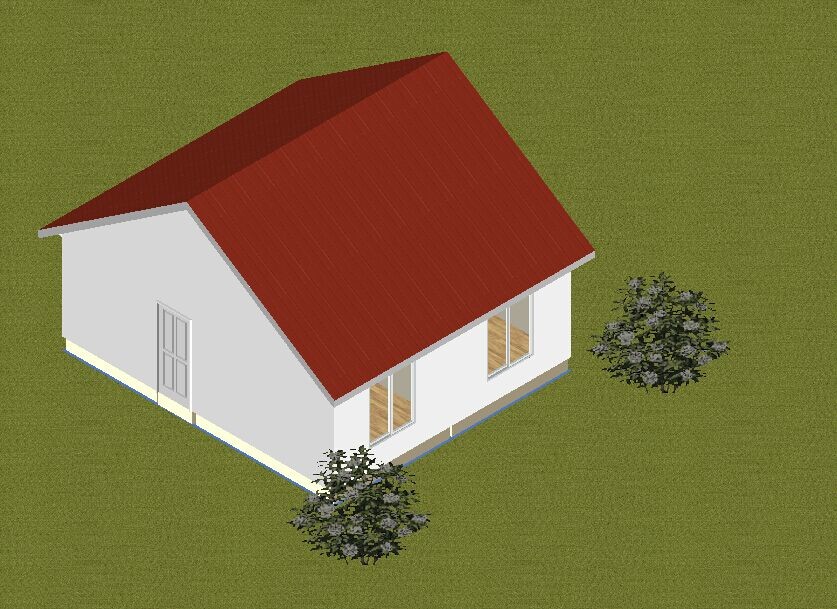

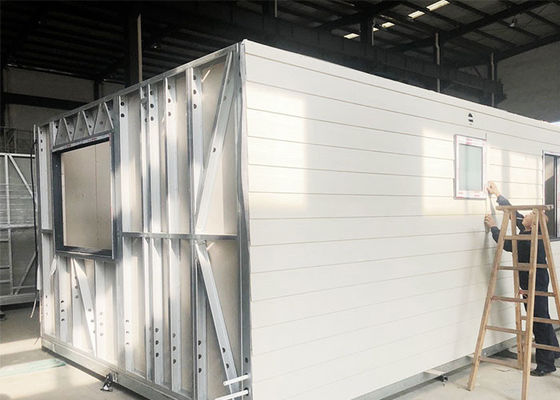

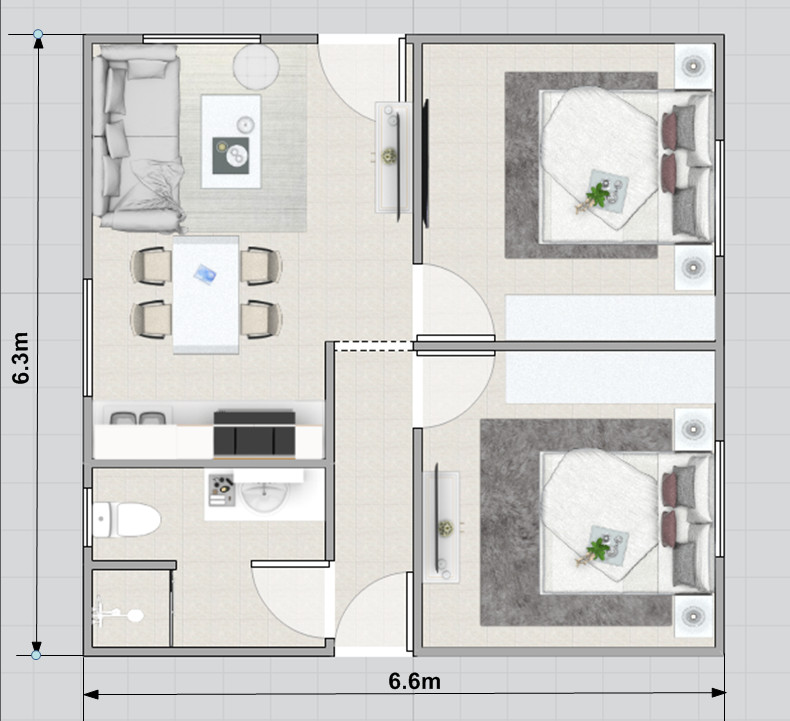

Detailed Images:

Mutifunction Modernization Prefabricated Houses Light Steel Structure Social Housing 0


Why Choose Light Gauge Steel Structure ?

1) Lifetime for structure: 100 years.
2) Earthquake resistance: mix more than 8 grades.
3) Wind resistance: max 60m/s.
4) Fire resistance: all the materials used can be fire resistance.
5) Snow resistance: max 2.9KN/m²as required
6) Heat insulation: 100 mm in thickness can match 1 m thickness of brick wall.
7) High acoustic insulation: 60db of exterior wall 40db of interior wall
8) Insect prevention: free from the damages by insects, such as white ants
9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorate materials.
11) Installation: the average is one worker one day install one SQM.
12) Installation guide: dispatch engineer to guide on site.


Design Code:


1) AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
2) AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
3) BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.
4) ENV1993-1-3 means Euro code 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.



Company Information:

Mutifunction Modernization Prefabricated Houses Light Steel Structure Social Housing 1


Our Services:



If You Need: prefabricated kit home; prefab kit home.steel structure homes.steel frame house



Only Need You To Provide Us:house area,how many floor and bedrooms,luxury or normally,or low cost configuation.



We Can Provide You:villa;bungalw;low cost house;granny flat;apartment etc.many style house.



FAQ:



1. Q: What is the advantage of this steel structure system house(compare with the traditional brick house)?

A:.Long lifetime;Good earthquake proof,Green and energy saving;Fast and easy to install etc……

2. Q:What is lifetime for your houses?

A:The durable for structure is more than 70 years.

3. Q:What is the intensity and thickness for your steel structure material?

A:All our steel structure intensity are S550. We can provide 0.75mm,0.95mm,1.15mm steel material.

4. Q:How about your production equipment and structure design software?

A:Our production equipment are the most advanced import from New-Zealand. Our structure design software also import from abroad-PRO DESIGN.

5. Q:What are the main technical data of your houses?

A:We can send you the specification and technology details.
