Australia Standard Prefab Light Steel Frame House Quick Assembly Customized Exterior Wall Cladding 50mm ALC Panel
| Place of Origin | Ningbo, China |
|---|---|
| Brand Name | DEEPBLUE SMARTHOUSE |
| Certification | ICC-ES,CE,EN,SGS,ISO,AS/NZS,UL,AISI |
| Model Number | DPBL-25-41 |
| Minimum Order Quantity | 200 sqm |
| Price | Negotiation |
| Packaging Details | Bare bundle / 40HQ |
| Delivery Time | 30-40 days |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 12000houses/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Bedroom | 4 Bedroom | Structure | Light Steel Frame |
|---|---|---|---|
| Exterior Wall Color | Cultural Stone | Movable | Optional |
| Windows | Doubel Glass PVC Sliding Windows | Fascia Board | Steel Fascia Board |
| Exterior Wall Cladding | 50mm ALC Panel | Exterior Wall Batten | 22mm Batten |
| Highlight | Prefab Frame Quick Assembly House,Prefab Frame ALC Panel House,Australia Prefab Steel Frame House |
||
Product Description
Australia Standard Prefab Light Steel Frame House Customized Material Quick Assembly Steel Structure
Bayonne House
2 Living
4 bedrooms 4 bathrooms 0 Garage 245.7m²

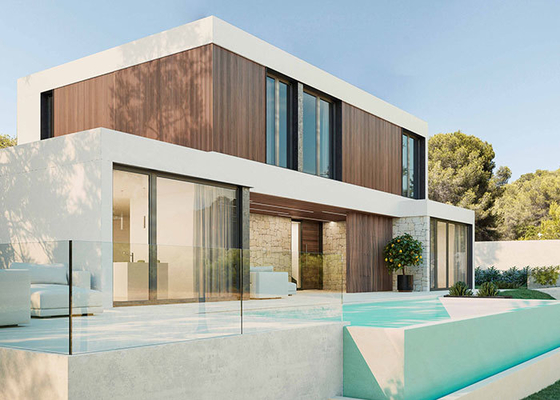

Welcome to the Bayonne House, a beautifully designed two-story villa that offers the perfect balance of elegance, functionality, and sustainability. With a total floor area of 245.75 square meters, this model, is ideal for families looking for a spacious, modern home built with cutting-edge construction technology and superior quality materials. Engineered and manufactured by DEEPBLUE SMARTHOUSE, the Bayonne House reflects the company’s commitment to innovation in residential architecture using its proprietary light steel frame building system.
Floor plan:
The Bayonne House features a thoughtfully designed layout to accommodate modern family lifestyles. On the ground floor, residents are welcomed into a spacious open-plan living and dining area that flows seamlessly into a state-of-the-art kitchen. The layout also includes one of the four bathrooms and a versatile guest room or study.
The first floor includes three additional bedrooms, including a master suite with a private en-suite bathroom, walk-in closet, and access to a balcony. The secondary living room on this level provides a quiet, private space perfect for relaxing evenings, a family entertainment zone, or even a home office setup.
Product parameters:
Product parameters
Specifications
1. Structure: 0.75mm/0.95mm/1.15mm light gauge steel
2. Foundation: you need to prepare by yourself. Concrete foundation, or other foundation
3. Roof: Colorbond sheet, asphalt shingle, ceramic tile, stone-metal sheet
4. External wall: EPS sandwich panel, ALC panel, metal PU sandwich panel, pre-painted fiber cement board, CFC board, WPC board
5. Internal wall: Gypsum board, MGO board, integrated wall panel, etc.
6. Ceiling: Gypsum board, MGO board, integrated wall panel, etc.
7. Underneath for floor: CFC sheet, OSB board
8. Insulation: R2.5/3.5/4/5 glass wool, rock wool
9. Flooring: ceramic tile, laminated flooring, PVC flooring, wooden flooring
10: Window: double/single glass Alu. window
11: Door: normal security door, plywood door, alu. door, WPC door, wooden door
12: Electrical and plumbing system
14: Kitchen: wall cabinet, top cabinet, sink, faucet, benchtop
15: Bathroom: washbasin, toilet, shower

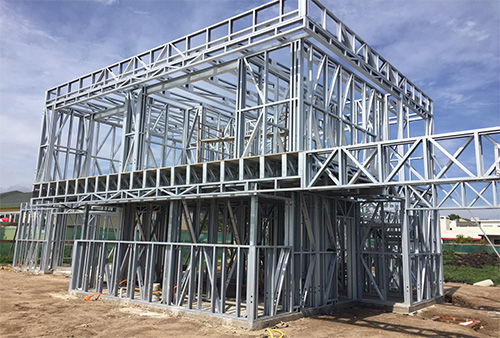

Why Choose Light Gauge Steel Structure?
1)Lifetime for structure: 100 years.[0.75~1.2mm , Z275galvanized steel profile, strength:550Mpa ]
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance:all the materials used can be fire resistance.
5)Snow resistance:max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation:a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorate materials.
11)Installation:the average is one worker one day install one SQM.
12)Installation guide:dispatch engineer to guide on site.
Design code:
(1)AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
Company Information
Deepblue Smarthouse was founded in 2009, a high-tech enterprise which integrated the ability of design, production, sales, transportation, installation and other services as a whole. We always committed to providing every family with a comfortable, safe and affordable home, and also can provide one-stop service for customers in this field. At present, we have completed many overseas real estate projects, large resort projects and so on. Our products have been exported to more than 60 countries and NGO. With 59 patents of invention and utility models, we have built more than 5,000 houses and won many awards in design and architecture
The DeepBlue Smarthouse world is one with advanced production equipment, managed by outstanding professionals, within a sound training environment. Together with our excellent corporate atmosphere we provide you with first-for our customers, that's our commitment to you.
Packaging & Shipping
Well packed export quality package ,shipped by 40hq.
