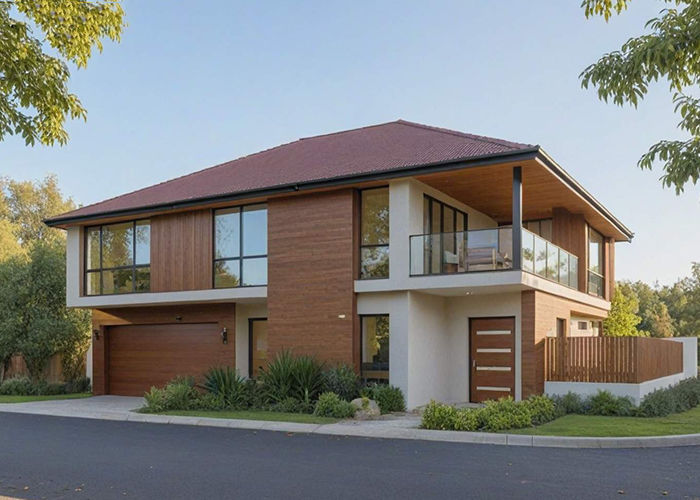

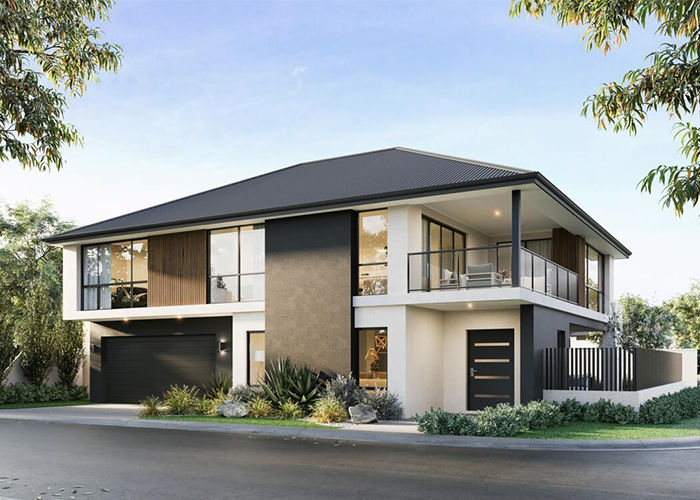

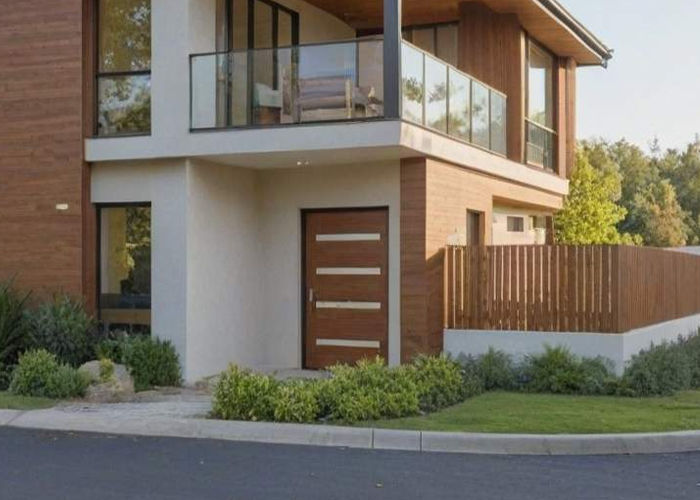

Luxury Prefab Houses 2-Storey Design Waterproof Features With 3 Bedrooms

Venice House​

3 Living  4 bedrooms  3 bathrooms 1 Kitchen  2Garage   342.73sqm

The Venice House (DPBL-25-06) is a premium light steel villa, meticulously crafted by DEEPBLUE SMARTHOUSE, a global leader in prefabricated housing solutions. Their advanced manufacturing capabilities ensure the highest standards of quality, durability, and efficiency.

Product parameters:

Specifications

1. Structure: 0.75mm/0.95mm/1.15mm light gauge steel
2. Foundation: you need to prepare by yourself. Concrete foundation, or other foundation
3. Roof: Colorbond sheet, asphalt shingle, ceramic tile, stone-metal sheet
4. External wall: EPS sandwich panel, ALC panel, metal PU sandwich panel, pre-painted fiber cement board, CFC board, WPC board
5. Internal wall: Gypsum board, MGO board, integrated wall panel, etc.
6. Ceiling: Gypsum board, MGO board, integrated wall panel, etc.
7. Underneath for floor: CFC sheet, OSB board
8. Insulation: R2.5/3.5/4/5 glass wool, rock wool
9. Flooring: ceramic tile, laminated flooring, PVC flooring, wooden flooring
10: Window: double/single glass Alu. window
11: Door: normal security door, plywood door, alu. door, WPC door, wooden door
12: Electrical and plumbing system
14: Kitchen: wall cabinet, top cabinet, sink, faucet, benchtop
15: Bathroom: washbasin, toilet, shower

Premium Materials and Customizable Options:

DEEPBLUE SMARTHOUSE ensures durability and elegance by using top-grade materials:

Steel Structure: Light steel framing for superior strength, durability, and resistance to environmental challenges.
Roofing: Durable options like Colorbond roofing or alternatives to match the design.
Walls: External walls made of CFC sheets or ALC panels; interior walls finished with gypsum boards.
Flooring: Options include CFC floorboards, porcelain tiles, or MDF flooring to suit various preferences.
Windows and Doors: Aluminum double-glazed windows for energy efficiency; MDF or wooden doors for added security.
Kitchen: Modern cabinets, sleek benchtops, sinks, and faucets.
Bathrooms: Premium toilets, showers, and vanities for a luxurious touch.

Design code:

(1)AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Company Information

Deepblue Smarthouse was founded in 2009, a high-tech enterprise which integrated the ability of design, production, sales, transportation, installation and other services as a whole. We always committed to providing every family with a comfortable, safe and affordable home, and also can provide one-stop service for customers in this field. At present, we have completed many overseas real estate projects, large resort projects and so on. Our products have been exported to more than 60 countries and NGO. With 59 patents of invention and utility models, we have built more than 5,000 houses and won many awards in design and architecture

The DeepBlue Smarthouse world is one with advanced production equipment, managed by outstanding professionals, within a sound training environment. Together with our excellent corporate atmosphere we provide you with first-for our customers, that's our commitment to you.

Packaging & Shipping

Well packed export quality package ,shipped by 40hq.
