US/AS Morden Prefab Single Family Home Prefabricated House Mobile Modern Luxury Living

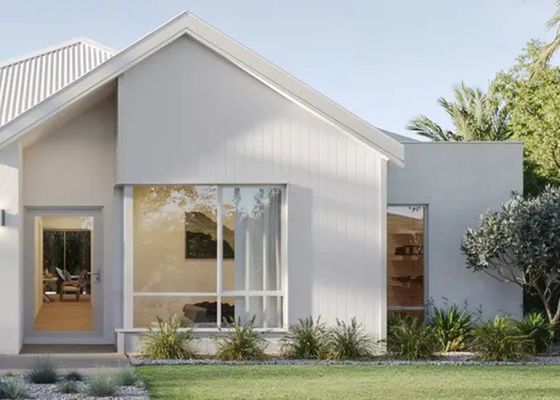

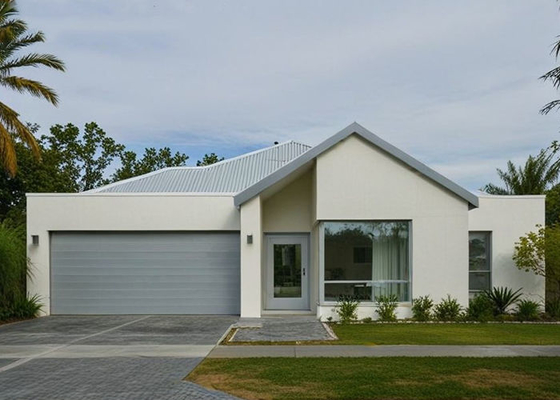

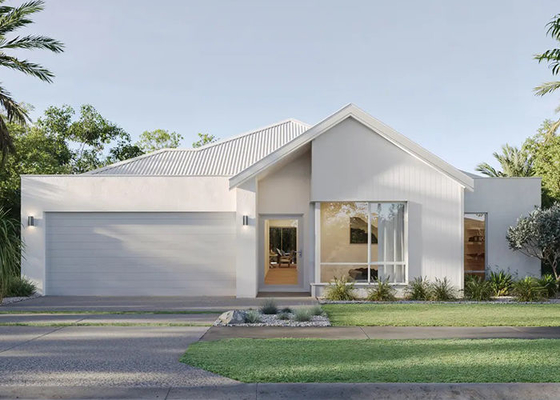

Madrid House​

2 Living  3bedrooms  2 bathrooms 1 Kitchen  2Garage   259.72sqm

The Madrid House is a spacious and well-designed home, the total area is about 259.72Square Meters, offering the perfect combination of comfort, functionality, and style. Designed by DEEPBLUE SMARTHOUSE, this home incorporates high-quality materials and innovative prefabricated construction techniques, making it a durable and cost-effective housing solution.

Product parameters:

Specifications

1. Structure: 0.75mm/0.95mm/1.15mm light gauge steel
2. Foundation: you need to prepare by yourself. Concrete foundation, or other foundation
3. Roof: Colorbond sheet, asphalt shingle, ceramic tile, stone-metal sheet
4. External wall: EPS sandwich panel, ALC panel, metal PU sandwich panel, pre-painted fiber cement board, CFC board, WPC board
5. Internal wall: Gypsum board, MGO board, integrated wall panel, etc.
6. Ceiling: Gypsum board, MGO board, integrated wall panel, etc.
7. Underneath for floor: CFC sheet, OSB board
8. Insulation: R2.5/3.5/4/5 glass wool, rock wool
9. Flooring: ceramic tile, laminated flooring, PVC flooring, wooden flooring
10: Window: double/single glass Alu. window
11: Door: normal security door, plywood door, alu. door, WPC door, wooden door
12: Electrical and plumbing system
14: Kitchen: wall cabinet, top cabinet, sink, faucet, benchtop
15: Bathroom: washbasin, toilet, shower

Premium Materials and Customizable Options:

DEEPBLUE SMARTHOUSE ensures durability and elegance by using top-grade materials:

Steel Structure: Light steel framing for superior strength, durability, and resistance to environmental challenges.
Roofing: Durable options like Colorbond roofing or alternatives to match the design.
Walls: External walls made of CFC sheets or ALC panels; interior walls finished with gypsum boards.
Flooring: Options include CFC floorboards, porcelain tiles, or MDF flooring to suit various preferences.
Windows and Doors: Aluminum double-glazed windows for energy efficiency; MDF or wooden doors for added security.
Kitchen: Modern cabinets, sleek benchtops, sinks, and faucets.
Bathrooms: Premium toilets, showers, and vanities for a luxurious touch.

Design code:

(1)AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Company Information

Founded in 2009, Deepblue Smarthouse is a high-tech enterprise integrating design, manufacturing, sales, logistics, and installation into a seamless one-stop service. Committed to providing safe, comfortable, and affordable homes, we have successfully delivered large-scale overseas real estate and resort projects, with products exported to 60+ countries and NGOs. Backed by 81 patents and numerous design awards, we have built over 10,000 homes worldwide. Powered by advanced equipment, a professional team, and a culture of continuous training, we remain steadfast in our core promise: putting customers first.

The DeepBlue Smarthouse world is one with advanced production equipment, managed by outstanding professionals, within a sound training environment. Together with our excellent corporate atmosphere we provide you with first-for our customers, that's our commitment to you.

Packaging & Shipping

Well packed export quality package ,shipped by 40hq.
