US / AS Modular Prefabricated Prefab Tiny House On Wheels With Bathroom

US/AS Modular & Prefabricated Prefab Tiny House On Wheels With Bathroom

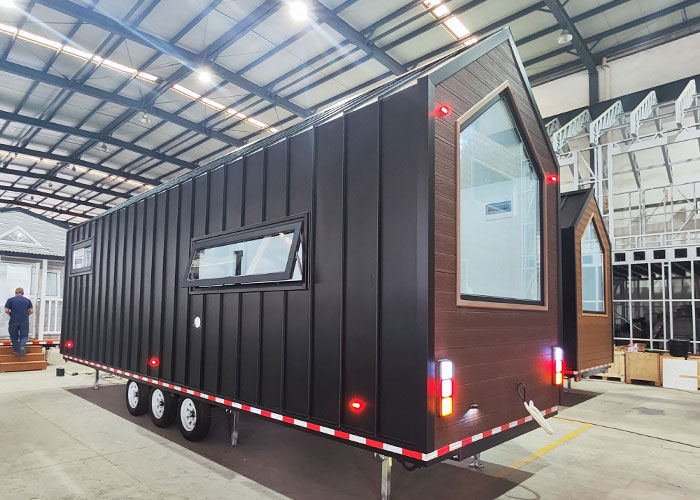

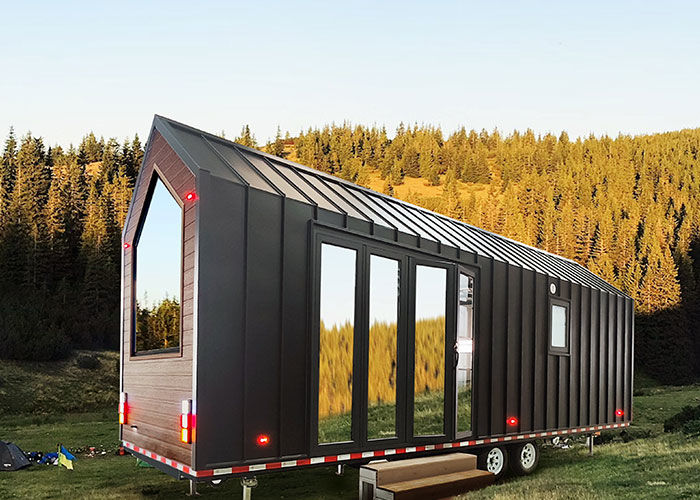

Queensland Tiny House on wheels

1 bedroom 1 bathroom 1 Kitchen 1Living 18.8m²

DEEPBLUE prides itself on using high-quality materials, especially in the External Wall system, which includes options like 14mm Pre-painted PU or 0.8mm Al-Mg-Mn Metal Cladding. This ensures durability and longevity, allowing residents to enjoy their Tiny House for years to come.

Steel Frame Wall/Roof Truss: Engineered from robust AS1397 G550 AZ150 0.75mm steel frame, providing a solid foundation for structural integrity and durability.
Insulation: Incorporating R2.5 Glass Wool for walls and R3.5 Glass Wool for the roof, facilitating exceptional thermal regulation to maintain interior comfort in all weather conditions.
Roofing System: Enhanced with Al-Mg-Mn Metal Cladding and WPC cladding, seamlessly combining resilience with aesthetic appeal to withstand the rigors of travel and outdoor living.
Ceiling: Embellished with 8 mm Integrated Wall Panel, imparting a sleek and contemporary finish to the interior while enhancing insulation properties.
External Wall System: Offering a selection of materials ranging from 14mm Pre-painted PU to 0.8mm Al-Mg-Mn Metal Cladding, providing flexibility for customization based on individual preferences.
Floor System: Comprising 15mm CFC sheeting for stability, complemented by 10mm MDF flooring in dry areas and 4.5mm SPC flooring in wet areas, ensuring a comfortable and practical living environment.
Windows & External Doors: Incorporating Australian standard Aluminum Double Glass Windows & Doors, offering enhanced security, energy efficiency, and ample natural light penetration.
The Queensland Tiny House On Wheels epitomizes the essence of freedom and exploration, offering a cozy sanctuary for outdoor enthusiasts. With its thoughtful design and premium construction, it promises an unparalleled experience, seamlessly blending the comforts of home with the adventure of the open road.

Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Deepblue Smarthouse is a leading Chinese company that specializes in designing and constructing prefab homes using light steel frame technology. Our comprehensive end-to-end building services cover everything from design and engineering to manufacturing,sourcing kitset of materials for whole buildings, and related services. As a one-stop solution provider, we are committed to delivering efficient, sustainable, and cost-effective building solutions for our clients, including housing developers, builders, and owner-builders.

Specifications:
ISO standard steel structure house .one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance. green, energy-saving. economically.


Resistant to various weather conditions, due to its light gauge steel framing system, DeepBlue Mobile Homes can resist winds up to 50m/s, 50cm snow loads as well withstand earthquakes due to its special steel structure technology.
The DeepBlue Mobile Houses manufacturing technology is truly a mature product characterized by flexibility and innovative design and solution.
