Prefab Trailer House On Wheels Sustainable Living Modular Home Light Steel Frame

Prefab Trailer House On Wheels Sustainable Living Modular Home Light Steel Frame

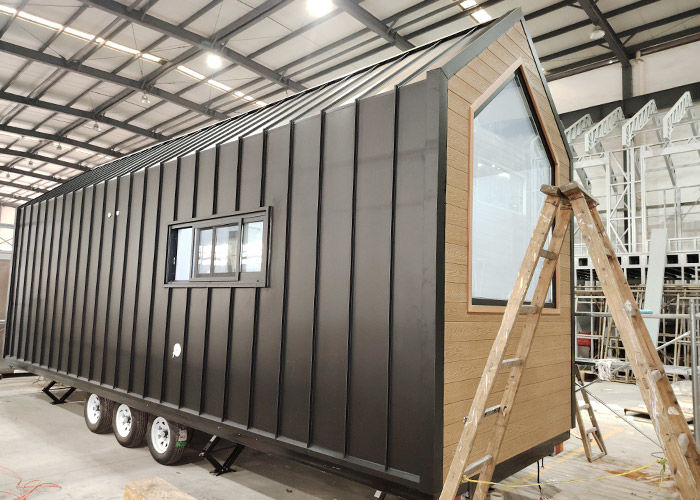

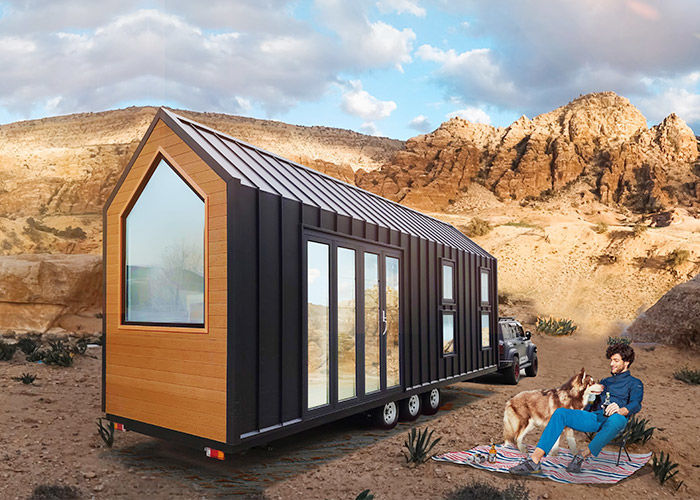

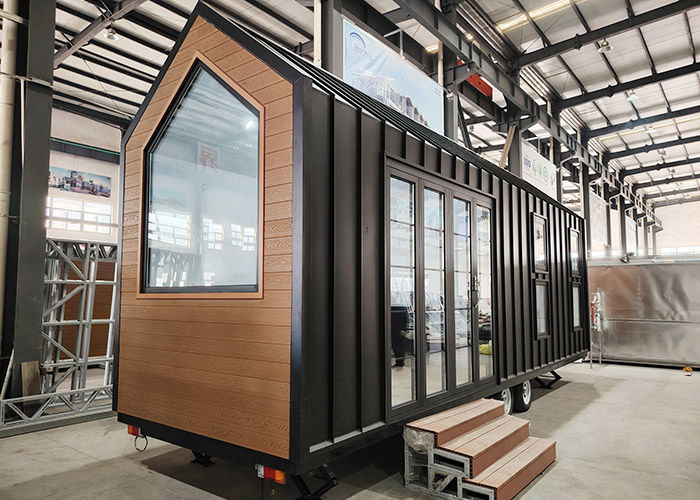

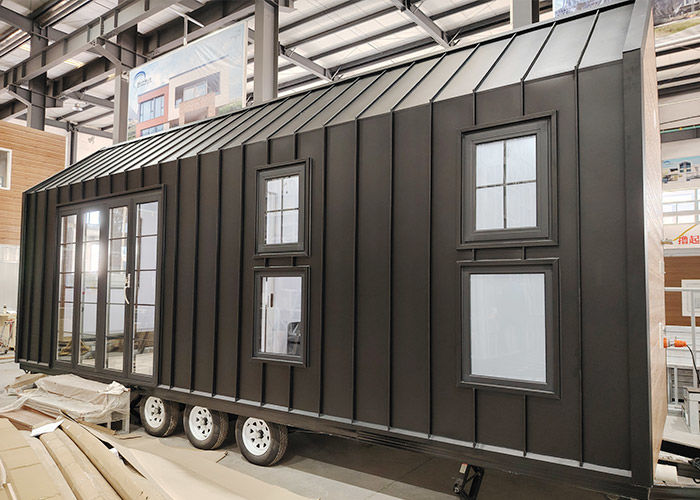

Queensland Tiny House on wheels

1 bedroom 1 bathroom 1 Kitchen 1Living  18.8m²

Designed with practicality in mind, this Tiny House boasts a well-thought-out layout, including a kitchen, a cozy living area, a private bedroom, and a convenient bathroom. It's the perfect retreat for two, whether you're embarking on a cross-country journey or seeking solace by the seaside.

Layout-wise, it's thoughtfully arranged to accommodate a kitchen, a cozy living area, a private bedroom, and a convenient bathroom, making it ideal for dual occupancy. Whether you're cruising through the countryside or parked by the beach, this Tiny House is your perfect travel companion.

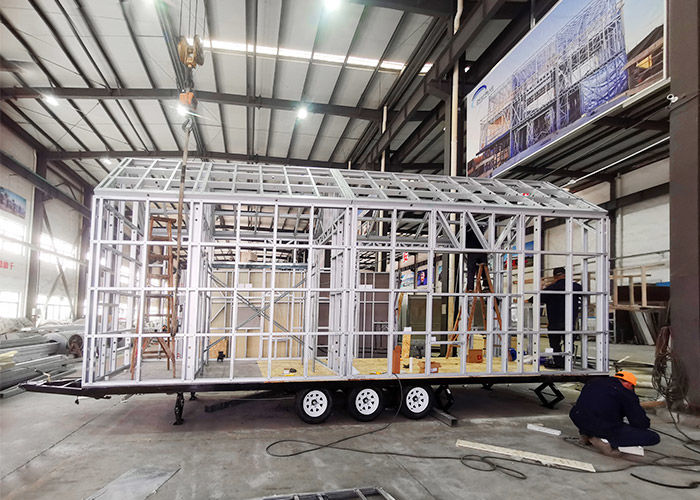

Steel Frame Wall/Roof Truss: Engineered with AS1397 G550 AZ150 0.75mm steel frame, providing unmatched strength and durability for your nomadic lifestyle.
Insulation: Featuring R2.5 Glass Wool for walls and R3.5 Glass Wool for the roof, ensuring optimal comfort in any climate.

Roofing System: Equipped with Al-Mg-Mn Metal Cladding and WPC cladding, offering both resilience and aesthetic appeal.

Ceiling: Enhanced with 8mm Integrated Wall Panel, delivering a sleek and modern ambiance to your living space.

External Wall System: Options include 14mm Pre-painted PU or 0.8mm Al-Mg-Mn Metal Cladding, or personalized materials to suit your preferences.

Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.

Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Deepblue Smarthouse is a leading Chinese company that specializes in designing and constructing prefab homes using light steel frame technology. Our comprehensive end-to-end building services cover everything from design and engineering to manufacturing,sourcing kitset of materials for whole buildings, and related services. As a one-stop solution provider, we are committed to delivering efficient, sustainable, and cost-effective building solutions for our clients, including housing developers, builders, and owner-builders.

Specifications:
ISO standard steel structure house .one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance. green, energy-saving. economically.


Resistant to various weather conditions, due to its light gauge steel framing system, DeepBlue Mobile Homes can resist winds up to 50m/s, 50cm snow loads as well withstand earthquakes due to its special steel structure technology.
The DeepBlue Mobile Houses manufacturing technology is truly a mature product characterized by flexibility and innovative design and solution.
