|Place of Origin:||NINGBO,CHINA|
|Minimum Order Quantity:||1SET|
|Packaging Details:||Bare bundle / 40HQ|
|Frame Mterial:||0.95mm Steel Frame With AZ150 Zinc Coating||Insulation:||R3.5 Glass Wool|
|Ceiling Material:||MGOboard/ Gypsum Board+others||External Wall:||100 Or 50mm ALC Panel/WPC Board/fibre Cement|
|Door:||Metal Security Door/Pvc Sliding Door||Roofing:||EPS Sandwich Panel/steel Roofing/asphalt|
|Other Fitting:||Toilet, Washbasin,shower ,kitchen,etc||Floor:||Laminate/wooden/tile|
booths garden studios,
contemporary garden studios,
Mobile Prefab Garden Studio
Main structure: Light Gauge Steel
Wall cladding: ALC panel/fiber cement cladding etc....
Insulation material: glass wool or also EPS/XPS/PU sandwich panel
Ceiling material: MGO board/gypsum board
Roof: EPS sandwich panel/steel roofing/asphalt shingle
Flooring: laminate flooring/wooden/PVC carpet
Door: steel security door/WPC or wooden door
Window: aluminum alloy/PVC
Other fittings: toilet, washbasin, shower, kitchen, etc.
Lifetime: 100 years for structure

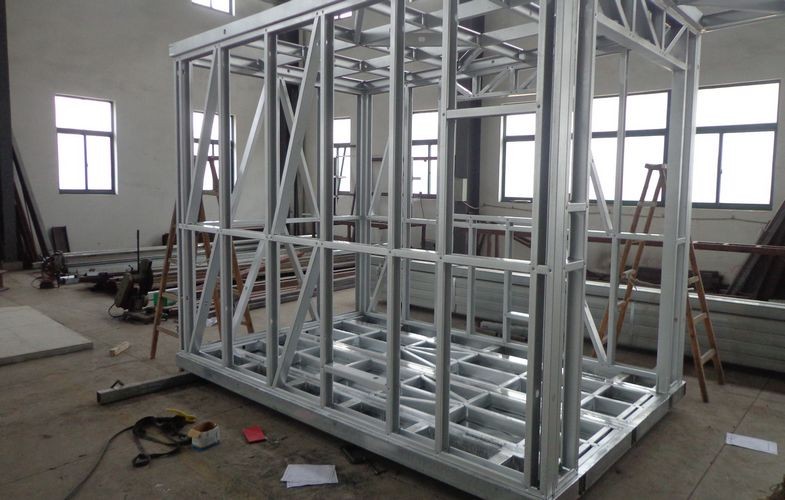

Light steel frame
The color of the light steel
1.AU engineer approved;
2.earthquake, cyclone and fireproof;
4.green, Energy save.
main light steel, and other parts material
ISO standard steel structure house .one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance.green, energy saving. economically.
Why Choose Light Gauge Steel Structure?
1) Lifetime for structure: 100 years.
2) Earthquake resistance: mix more than 8 grades.
3) Wind resistance:max 60m/s.
4) Fire resistance: all the materials used can be fire resistance.
5) Snow resistance: max 2.9KN/m²as required
6) Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7) High acoustic insulation:60db of exterior wall 40db of interior wall
8) Insect prevention: Free from the damages by insects, such as white ants
9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11) Installation: the average is one worker one day install one SQM.
12) Installation guide: dispatch engineer to guide on site.
(1) AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2) AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3) BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4) ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
Deepblue Prefab Villa is based on the most advanced Light Gauge Steel Frame Technology, our products
customized design service & personalized option
If You Need: prefabricated kit home; prefab kit home. steel structure homes.steel frame house
Only Need You To Provide Us: house area, how many floors and bedrooms, luxury or normally, or low-cost configuration.
We Can Provide You: villa; bungalow; low-cost house; granny flat; apartment etc.many style house.
The DeepBlue Smarthouse world is one with advanced production equipment, managed by outstanding professionals, within a sound training environment. Together with our excellent corporate atmosphere, we provide you with first-for our customers, that's our commitment to you.
Packaging & Shipping
Granny Flat's packing: well-packed export quality package, shipped by 40hq.
Answer for steel structure house
1. Q: What is the advantage of this steel structure system house(compare with the traditional brick house)?
A: Long lifetime; Good earthquake-proof, Green and energy saving; Fast and easy to install etc……
2. Q: What is the lifetime for your houses?
A: The durable for the structure is more than 70 years.
3. Q: What is the intensity and thickness of your steel structure material?
A: All our steel structure intensity is S550. We can provide 0.75mm,0.95mm,1.15mm steel material.
4. Q: How about your production equipment and structure design software?
A: Our production equipment is the most advanced import from New-Zealand. Our structure design software also imports from abroad-PRO DESIGN.
5. Q: What are the main technical data of your houses?
A: We can send you the specification and technology details.
