Highly Customizable Light Gauge Steel Construction Modular Houses AS/NZS

Highly Customizable Light Gauge Steel Construction Modular Houses AS/NZS

Shousnan​ House
4 bedrooms 1Kitchen 3 bathrooms 2 living room 2 garage 394.4m²

Introducing Shousnan House, the epitome of modern living, designed and manufactured by DEEPBLUE SMARTHOUSE using light steel frame house construction techniques. This exceptional villa offers not only the durability and efficiency of a light steel frame house but also the finest interior finishes, including kitchen, bathrooms, and living spaces.

Shousnan House, with its impressive dimensions of 12710×22870mm, stands tall as a testament to contemporary architectural design. Its total area of 394.4 square meters encompasses a thoughtfully planned layout, ensuring both comfort and functionality for its residents.

Step into the ground floor area of 213.58 square meters, and you'll be greeted by the spacious and inviting living spaces. The open-plan design seamlessly integrates the living, dining, and kitchen areas, creating a harmonious flow throughout.

Floorplan:

Name: Shousnan
Model: DPBL-23-09
Size: 12710×22870mm
Ground floor area:213.58㎡
First floor area:180.82㎡
Toal area:394.4㎡
Patio:3.96㎡




Shousnan House offers four generously sized bedrooms on the first floor, providing ample space for personal retreat and relaxation. Each bedroom is meticulously designed, combining comfort and style. The bathrooms, three in total, are beautifully appointed, featuring modern fixtures and luxurious amenities, ensuring a spa-like experience within the comforts of your own home.

With Shousnan House, no detail has been overlooked, including the provision of two garages for convenient vehicle storage. Additionally, a charming patio spanning 3.96 square meters offers an outdoor oasis where you can unwind and enjoy the surrounding natural beauty.

DEEPBLUE SMARTHOUSE takes pride in its commitment to quality and sustainability, and Shousnan House exemplifies this ethos. The light steel frame construction method ensures strength, durability, and energy efficiency, while also reducing the environmental impact.

When you choose Shousnan House, you not only acquire a remarkable residential structure but also gain access to DEEPBLUE SMARTHOUSE's expertise in interior design and furnishings. Our team of professionals will assist you in selecting the finest soft materials, transforming your house into a cozy and stylish home.

Experience the epitome of modern living with Shousnan House, where cutting-edge design, meticulous craftsmanship, and thoughtful functionality seamlessly come together. Embrace a new era of comfort, luxury, and sustainability in this remarkable light steel frame villa.

Description:
Roof structure: light gauge steel truss system

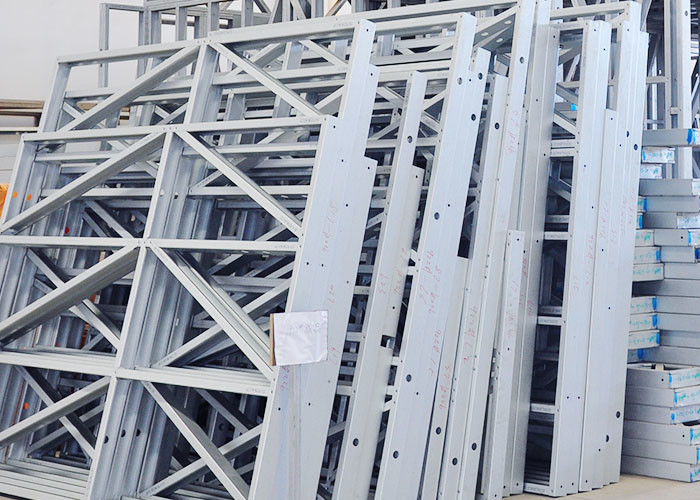

Main structure: light gauge steel framing system
Cladding: PU insulation steel sandwich panel
interior lining: fiber cement board
Insulation: high-performance glass wool
Flooring: wooden or bamboo flooring
Ceiling: PVC ceiling panel.
Lighting: C.E, AS/NZS, UL standard light or others
Exterior Door: Aluminium sliding doors


Applications:
Hotel, House, Office etc.
Why Choose Light Gauge Steel Structure?

Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Specifications:
ISO standard steel structure house .one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance. green, energy-saving. economically.
Why Choose Light Gauge Steel Structure?
1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.
Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Resistant to various weather conditions, due to its light gauge steel framing system, DeepBlue Mobile Homes can resist winds up to 50m/s, 50cm snow loads as well withstand earthquakes due to its special steel structure technology.
The DeepBlue Mobile Houses manufacturing technology is truly a mature product characterized by flexibility and innovative design and solution.


Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.

Your first choice, Deepblue Prefabrica
