Luxury Modular Hotel Unit Prefab Light Steel Frame House For Living

Luxury Modular Hotel Unit Prefab Light Steel Frame House For Living

Star-Rated Hotel-L

2 bedrooms 2 bathrooms 1 living room 0 garage 109.4m²

It is a solution for resort villa hotel, with modern T and L shapes. All designs are with big glass terraces, you can enjoy wide-open view here, which give you an extraordinary holiday experience. There is bathroom in each storey, suitable for 3-5 people to live.

Floorplan:

Model: Star-Rated Hotel-L
Size: L10700×W8000mm
Ground floor area: 53.2 ㎡
First floor area: 47.74 ㎡
Total area:100.94㎡
Deck 1 area: 5.46㎡

Description:

Roof structure: light gauge steel truss system

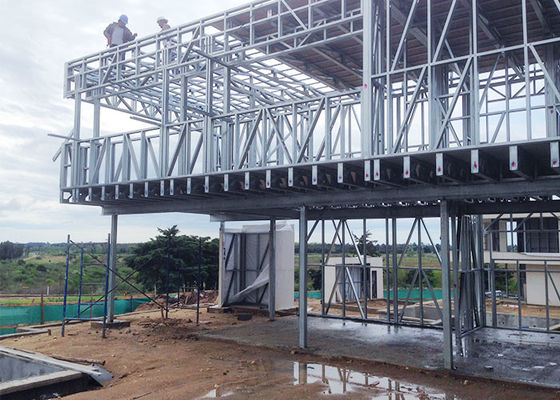

Main structure: light gauge steel framing system
Cladding: PU insulation steel sandwich panel
interior lining: fiber cement board
Insulation: high-performance glass wool
Flooring: wooden or bamboo flooring
Ceiling: PVC ceiling panel.
Lighting: C.E, AS/NZS, UL standard light or others
Exterior Door: Aluminium sliding doors

Applications:

Hotel, House, Office etc.

Why Choose Light Gauge Steel Structure?

Design code:

(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Specifications:
ISO standard steel structure house .one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance. green, energy-saving. economically.

Why Choose Light Gauge Steel Structure?
1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.
Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Resistant to various weather conditions, due to its light gauge steel framing system, DeepBlue Mobile Homes can resist winds up to 50m/s, 50cm snow loads as well withstand earthquakes due to its special steel structure technology.
The DeepBlue Mobile Houses manufacturing technology is truly a mature product characterized by flexibility and innovative design and solution.

Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.

Your first choice, Deepblue Prefabrica
