EU/AU Standard Light Steel Frame Mobile House Mobile Homes Granny Fat

Place of Origin NingBo China
Brand Name DEEPBLUE SMARTHOUSE
Certification AS/NZS,UL,AISI,
Model Number Foldable house 2130
Minimum Order Quantity 2 sets
Price Negotiation
Packaging Details Bare bundle / 40HQ
Delivery Time 30days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 12000houses/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wall Frame AZ150 G550 Light Steel 0.75mm Ext. Wall Cladding WPC Cladding
Interior Wall Finish Integrated Wall Panel Kitchen Cabinet 18mm E0 Particle Board
Sink Stainless Steel Sink With Faucet Type Foldable House
High Light

Single Wide Prefab Mobile House 0.75mm

,

0.75mm Foldable Prefab Mobile Homes

,

Light Steel Frame Prefab Loft Homes

Leave a Message
Product Description

EU/AU Standard Light Steel Frame Mobile House Mobile Homes Granny Fat


EU/AU Standard Light Steel Frame Mobile House Mobile Homes Granny Fat 0 1 bedrooms EU/AU Standard Light Steel Frame Mobile House Mobile Homes Granny Fat 1 1 bathrooms EU/AU Standard Light Steel Frame Mobile House Mobile Homes Granny Fat 2 1 living room EU/AU Standard Light Steel Frame Mobile House Mobile Homes Granny Fat 3 1kichen EU/AU Standard Light Steel Frame Mobile House Mobile Homes Granny Fat 440


Foldable house 2130#

DEEPBLUE foldable house, with advanced folding technology, has completed about 80% of the pre-installation in the factory, folded and loaded into the container for transportation. After arriving at the site, expand the main structure of the house, simply install the furniture then it can be put into use.

Description:

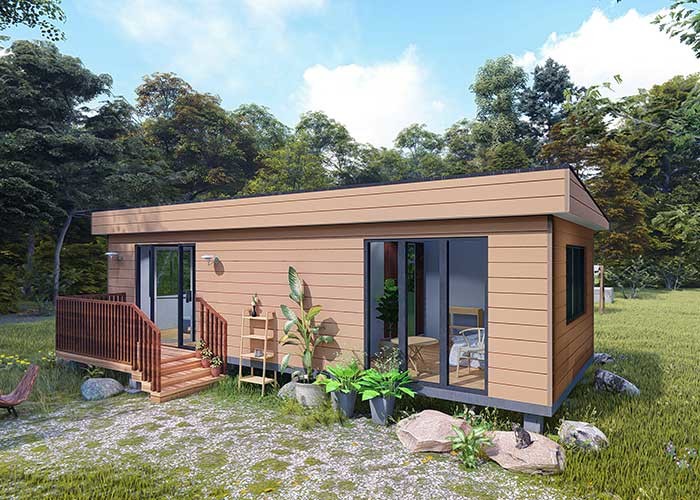

The Foldable House is 10 meters long and 4 meters wide. The foldable house is have a washrooms. A wardrobe can be built next to the washroom, and a desk can be placed opposite the bed, which meets the needs of daily living and is economical.

The bathroom and kitchen separate the bedroom, so that the bedroom has private space.

EU/AU Standard Light Steel Frame Mobile House Mobile Homes Granny Fat 5


Floorplan



Model: Foldable house 2130#
House Width:4000mm
House Length:10000mm
Area:40㎡




EU/AU Standard Light Steel Frame Mobile House Mobile Homes Granny Fat 6



In a world where speed, efficiency, and adaptability are paramount, the realm of architecture and construction has seen a remarkable transformation. DEEPBLUE SMARTHOUSE emerges as a trailblazer in this domain with its ingenious creation – the Foldable House Series. Tailored for rapid deployment, these modular structures encompass an array of applications, from Granny flats to Foldable Hospitals, employee dormitories, and even temporary shelters. Each component is meticulously engineered to unfold seamlessly during installation and offer convenient transportation options, marking a new era in construction innovation.



The Foldable House Series by DEEPBLUE SMARTHOUSE is a testament to the intersection of architectural brilliance and technological advancement. With the rise of urgent housing and infrastructure needs, these foldable structures answer the call for swift and reliable solutions. The series' versatility shines through in its diverse applications, making it an indispensable tool for addressing a range of challenges.

EU/AU Standard Light Steel Frame Mobile House Mobile Homes Granny Fat 7

The concept is elegantly simple yet profoundly effective. Every element of the Foldable House Series is precision-calculated and meticulously designed for easy expansion and installation. This design philosophy allows for rapid assembly, saving crucial time and resources. From the Granny flats that provide independent living spaces for elderly family members to the Foldable Hospitals that can be quickly established to accommodate medical needs, these structures exemplify adaptability in its truest form.



Building materials:

4. Steel Batten 22 mm steel roof battens & batten 22mm steel
ceiling battens
5. High tensile Corrugated colored roof sheets in 0.42mm thickness,
gable flashings, ridge capping, valleys, barge capping & all fixings if
applicable.
6. Wall cladding: 8mm fiber cement board as cladding
7. Interior lining: 8mm fiber cement board
8. Aluminum sliding windows & sliding doors including standard fly
screens toAustralian Standards and as per plan specifications in
black color.
9. Glass wool R2.5 to main roof area unless otherwise specified.
10. Glass wool R3.5 breathable insulations to all exterior walls & gable
ends if applicable
11. Entrance door- Aluminum sliding door
12. Bathroom door –alum. door with steel frame and weather seal
13. Internal doors- plywood interior door.
14. Flooring: 9mm Laminated flooring
15. Cornering: 90mm coved plasterboard cornice
16. Skirting –MDF skirting
17. Robe & Linen cupboard support – gypsum board cornering.
18. 9mm gypsum board ceiling
19. 8mm cfc soffit lining
20. All P/C items: toilet, shower and washbasin w/mirror
21. Power points as per plan
22. Joinery as per plan


EU/AU Standard Light Steel Frame Mobile House Mobile Homes Granny Fat 8

Applications:
Hotel, House, Office, etc.




Product Description:
DeepBlue earthquake proof prefabricated bungalow is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers.
the materials are the following:

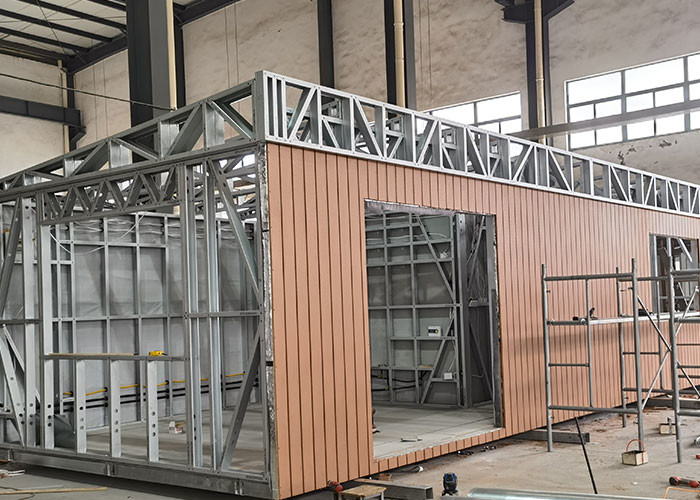

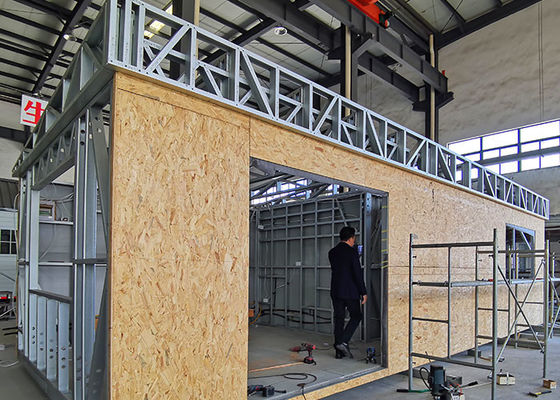

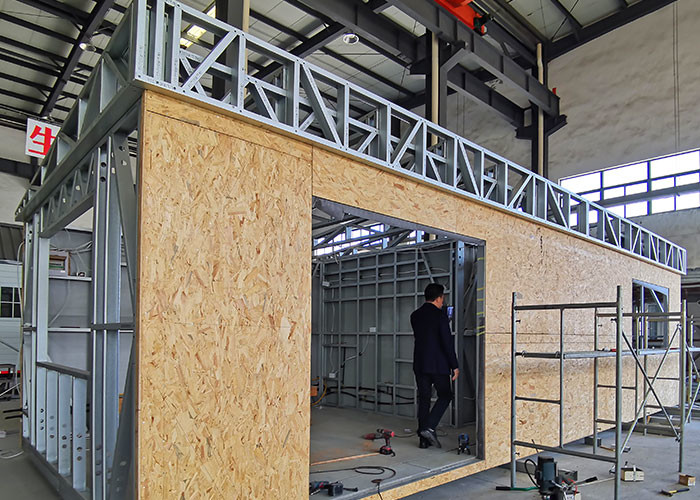

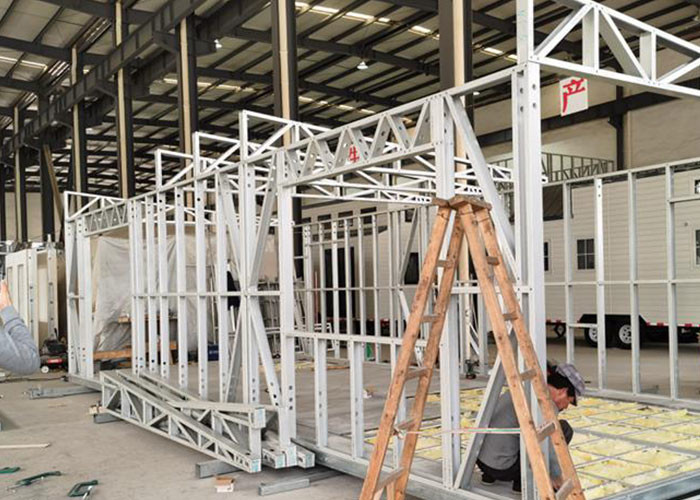

1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard.
the structure can be design to resist 50m/s wind and 9degree earthquake.
2. Roof structure: 89mm light gauge steel truss system.
3. Chassis: 89mm light gauge steel flooring chassis
4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, Pvc carpet, etc.
5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration
6. interior lining: 9m fiber cement board, water-proof, termite-proof, security and healthy
7. ceiling: 8mm Pvc ceiling panel

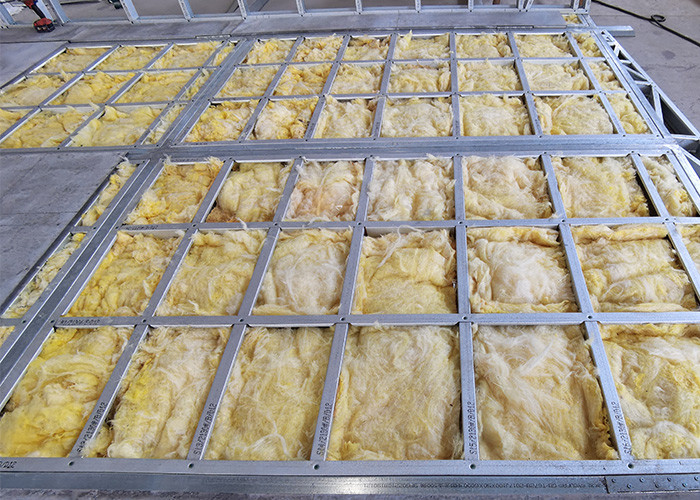

8. insulation: 89mm glass wool insulation with good soundproof performance.
9.windows: PVC sliding windows
10.exterior door: high-quality aluminum sliding windows
11.interior door: painted wood door
12.bathroom: shower, washbasin, toilet included
13. roofing: corrugated steel roofing with the gutter system
14. veranda deck: W.P.C veranda flooring.

EU/AU Standard Light Steel Frame Mobile House Mobile Homes Granny Fat 9
Specifications:
ISO standard steel structure house .one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance. green, energy-saving. economically.


Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.

Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

EU/AU Standard Light Steel Frame Mobile House Mobile Homes Granny Fat 10


Resistant to various weather conditions, due to its light gauge steel framing system, DeepBlue Mobile Homes can resist winds up to 50m/s, 50cm snow loads as well withstand earthquakes due to its special steel structure technology.
The DeepBlue Mobile Houses manufacturing technology is truly a mature product characterized by flexibility and innovative design and solution.

EU/AU Standard Light Steel Frame Mobile House Mobile Homes Granny Fat 11
EU/AU Standard Light Steel Frame Mobile House Mobile Homes Granny Fat 12
Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.
