Low-Cost Prefab Commercial Buildings / Energy Saving Prefab Metal Building

Low-Cost Prefab Commercial Buildings / Energy Saving Prefab Metal Building

Quick Detail:

Description:

Main structure: Light Gauge Steel

Wall cladding: ALC panel/fibre cement cladding+MGO board/gypsum board

Insulation material: glass wool or also EPS/XPS/PU sandwich panel

Ceiling material: MGO board/gypsum board

Roof: EPS sandwich panel/steel roofing/asphalt shingle

Flooring: laminate flooring/wooden/PVC carpet

Door: steel security door/WPC or wooden door

Window: aluminum alloy/PVC

Other fittings: toilet, washbasin, shower, kitchen, etc.

Lifetime: 100 years for structure

Applications:

Hotel, House, Office, Villa, etc

Specifications:

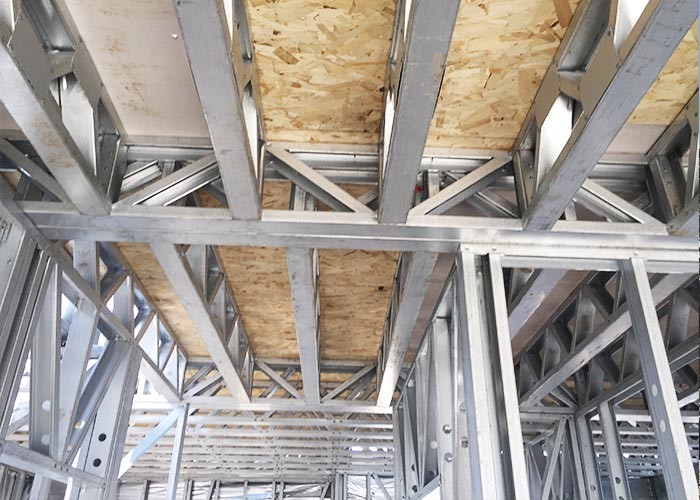

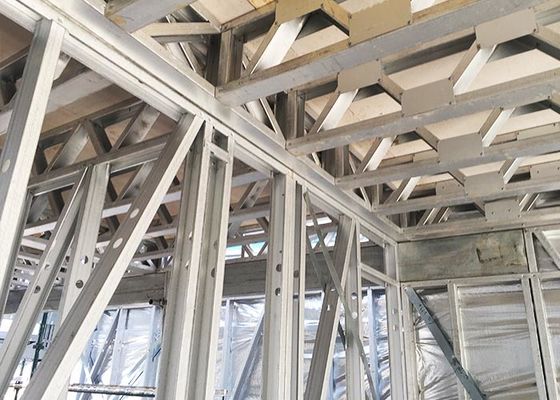

low-cost steel frame apartment building:

ISO standard light gauge steel for the main structure. fireproof, heat insulation, wind, and earthquake resistance.green, energy saving. also economically.

Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.[0.75~1.2mm , Z275galvanized steel profile, strength:550Mpa ]

2)Earthquake resistance: mix more than 8 grades.

3)Wind resistance:max 60m/s.

4)Fire resistance: all the materials used can be fire resistance.

5)Snow resistance: max 2.9KN/m²as required

6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.

7)High acoustic insulation:60db of exterior wall 40db of interior wall

8)Insect prevention: Free from the damages by insects, such as white ants

9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean

10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.

11)Installation: the average is one worker one day install one SQM.

12)Installation guide: dispatch engineer to guide on site.

Design code:

(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.

(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.

(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.

(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Service Process

customized design service & personalized option

If You Need: prefabricated kit home; prefab kit home. steel structure homes.steel frame house

Only Need You To Provide Us: house area, how many floors and bedrooms, luxury or normally, or low-cost configuration.

We Can Provide You: villa; bungalow; low-cost house; granny flat; apartment etc.many style house.

Company information

The DeepBlue Smarthouse world is one with advanced production equipment, managed by outstanding professionals, within a sound training environment. Together with our excellent corporate atmosphere, we provide you with first-for our customers, that's our commitment to you.

FAQ

answer for the apartment :

1. Q: What is the advantage of this steel structure system house(compare with the traditional brick house)?

    A: Long lifetime; Good earthquake-proof, Green and energy saving; Fast and easy to install etc……

2. Q: What is the lifetime for your houses?

    A: The durable for the structure is more than 70 years.

3. Q: What is the intensity and thickness of your steel structure material?

    A: All our steel structure intensity is S550. We can provide 0.75mm,0.95mm,1.15mm steel material.

4. Q: How about your production equipment and structure design software?

    A: Our production equipment is the most advanced import from New-Zealand. Our structure design software also imports from abroad-PRO DESIGN.

5. Q: What are the main technical data of your houses?

    A: We can send you the specification and technology details.
