Modern Prefabricated Villa Manufactured Home Prefabricated Light Steel Frame House Building

Modern Prefabricated Villa Manufactured Home Prefabricated Light Steel Frame House Building

villawood ​:



Project date: 2015-2017
Project location: Sydney,Australia
200sets 2floors homes
Area: Over 50000sqm
Supplier:DeepBlue

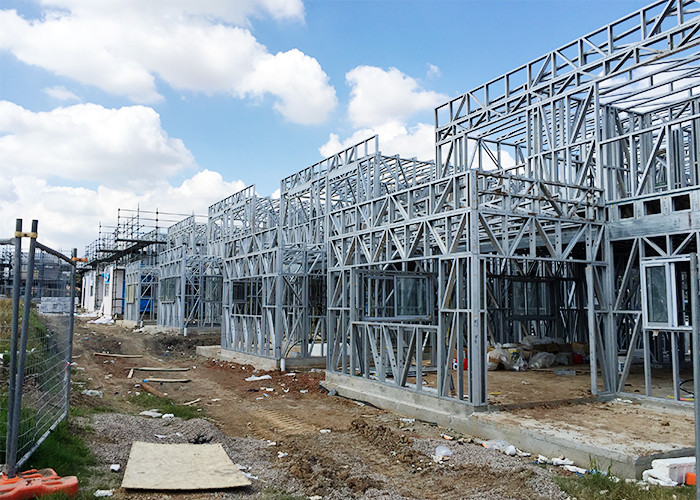

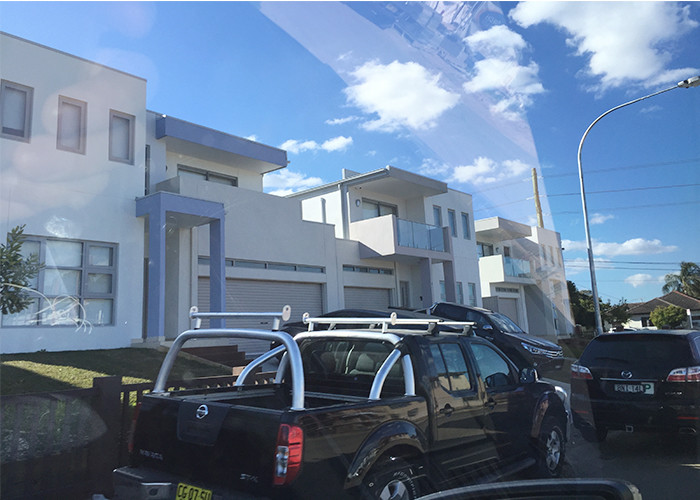

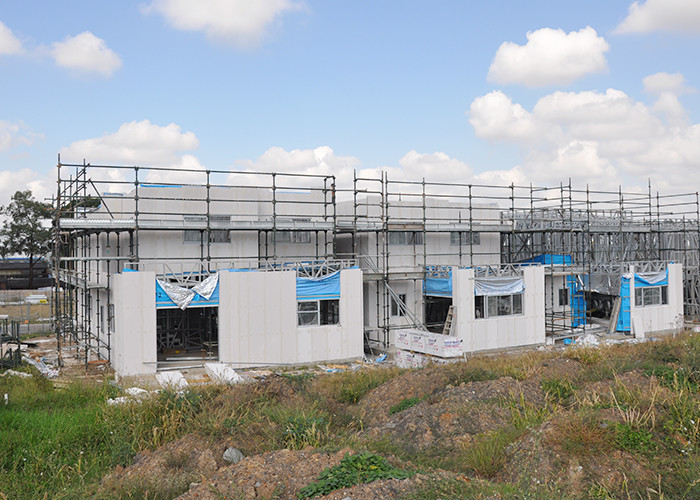

Nestled in the vibrant city of Sydney, Australia, the Villawood Townhouse Project is a testament to modern architectural excellence and innovative urban living. Developed and realized between 2015 and 2017, this remarkable project comprises 200 two-story homes, each thoughtfully designed to cater to the evolving needs of contemporary lifestyles. With a total area spanning over 50,000 square meters, Villawood stands as an epitome of stylish, sustainable, and community-centric housing.

Description:

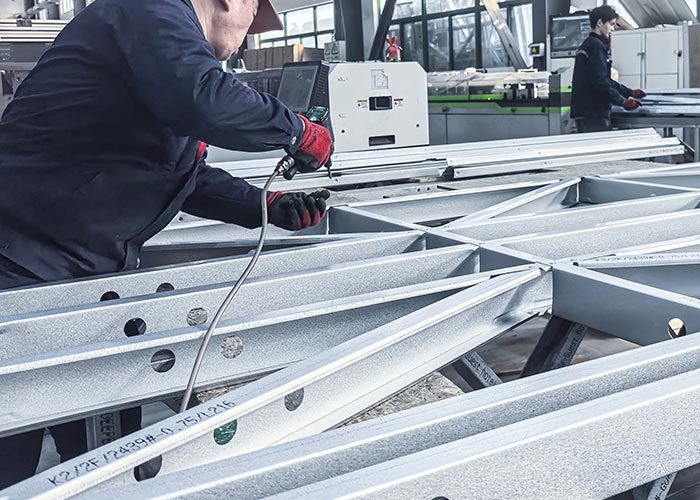

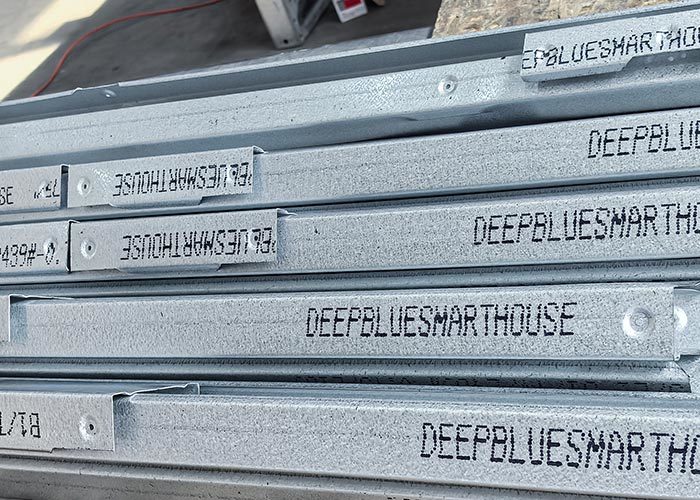

Main structure: Light Gauge Steel

Wall material: ALC panel/fiber cement cladding+MGO board/gypsum board

Insulation material: Insulation material

Ceiling material: MGO board/gypsum board

Floor/foundation material: laminate flooring/wooden/PVC carpet

Door: steel security door/WPC or plywood door

Window: aluminum alloy/PVC

Roofing: EPS sandwich panel/steel roofing/asphalt shingle

Other fittings: toilet, washbasin, shower, kitchen, etc.

Lifetime: 100 years for structure

Key Features:

Modern Design: The architecture of Villawood embodies a modern aesthetic with clean lines, spacious interiors, and contemporary finishes. These townhouses are designed to meet the high standards of modern living.

Sustainable Living: The project is committed to sustainability, with features like energy-efficient systems and eco-friendly construction materials. Residents can enjoy eco-conscious living without compromising on comfort.

DeepBlue Quality: The success of Villawood can be attributed to its partnership with DeepBlue, a trusted and innovative supplier known for its commitment to quality and excellence in the construction industry.

Specifications:
ISO standard steel structure house .one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance. green, energy-saving. economically.
Why Choose Light Gauge Steel Structure?
1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.
Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Resistant to various weather conditions, due to its light gauge steel framing system, DeepBlue Mobile Homes can resist winds up to 50m/s, 50cm snow loads as well withstand earthquakes due to its special steel structure technology.
The DeepBlue Mobile Houses manufacturing technology is truly a mature product characterized by flexibility and innovative design and solution.


Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.

Your first choice, Deepblue Prefabrica
