·Beach Bungalow
3 bedrooms
1 bathroom
0 car space
50 m²

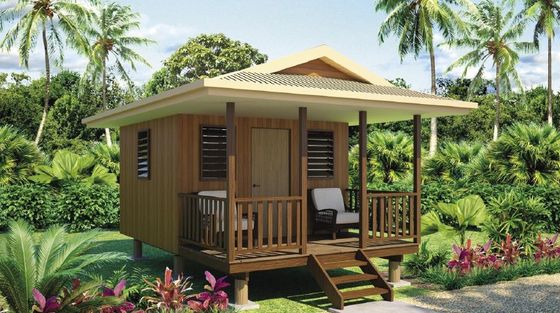

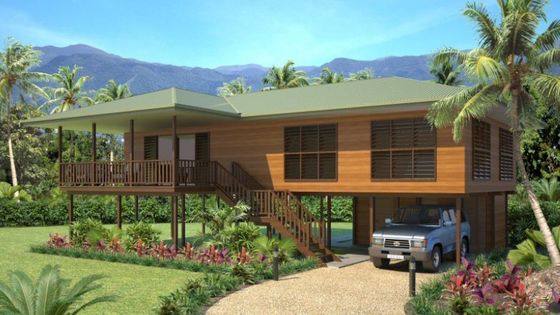

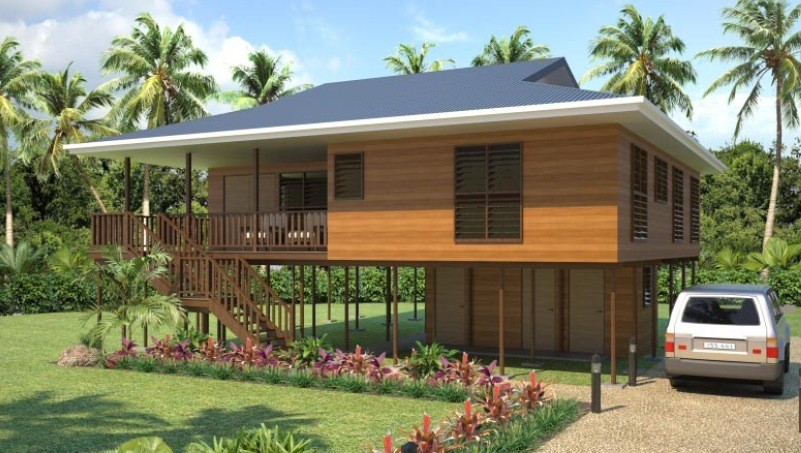

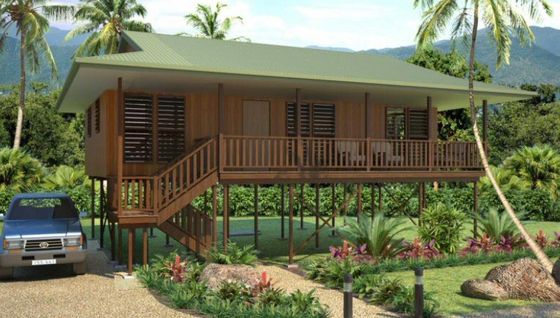

Light Steel Wooden House Bungalow / Luxury Beach Bungalows For Thailand
-
With a perfect balance of shared living spaces and private retreats;
-
Seamless transitions between inside and outside areas；
-
Giving you the freedom to entertain the way you like.
Floorplan
- Four bedrooms provide you with a more intimate living space.
- The dining room, balcony and veranda create a happy journey.
- Everything only provides you with the best enjoyment and ultimate relaxation.
Quick Detail:
|
Name
|
Wooden bungalow
|
Application
|
Wooden bungalow for holiday living
|
|
Color
|
Yellow, white, etc depend on customer’s request
|
Feature
|
1.quickly to assemble on site
2.good earthquake-proof
3.green, energy save
4.design for customers
|
|
Material
|
light steel and other parts material
|
Certificate
|
CE,ISO,SAA,ETC
|
Description:
Main structure: Light Gauge Steel
Wall cladding: ALC panel/fibre cement cladding+MGO board/gypsum board
Insulation material: glass wool or also EPS/XPS/PU sandwich panel
Ceiling material: MGO board/gypsum board
Roof: EPS sandwich panel/steel roofing/asphalt shingle
Flooring: laminate flooring/wooden/PVC carpet
Door: steel security door/WPC or wooden door
Window: aluminum alloy/PVC
Other fittings: toilet, washbasin, shower, kitchen, etc.
Lifetime: 100 years for structure
Applications:
the toilet, washbasin, shower, kitchen, etc.
Material Configuration:
| No. |
Item |
Materials |
Luxury house |
No. |
Item |
Materials |
Luxury house |
| 1 |
Foundation |
Fixing to Foundation |
chemical bolt |
6 |
Roof system |
roofing |
ceramic/asphalt shingle |
| cushion tape between frame and foundation |
asphalt tape |
water-proof layer |
the heavy duty asphalt layer |
| 2 |
House Structure System |
The main structure for the house |
1.15mm thick *89mm wide Steel frame |
strength board |
15mm OSB board |
| Floor Joist (if multi-stories) |
1.15mm steel joist |
Insulation/batt |
heavy duty glass wool |
| Connection |
self-drilling stress |
eaves board |
12mm MgO board |
| 3 |
Exterior Wall |
Ext. wall Cladding |
50MM ALC PANEL or PU sandwich panel |
downpipe system |
PVC downpipe system |
| Reinforce layer |
12mm OSB board |
7 |
Kitchen and bathroom |
Kitchen cabinet |
high-quality cabinet |
| Vapor barrier |
DUPONT Vapor barrier sheet |
wall cabinet |
high-quality wall cabinet |
| Insulation/batt |
heavy duty glass wool |
countertop |
stone countertop |
| inter of ext .wall |
double 12mm plasterboard |
Sink |
high-quality stainless sink with faucet |
| 4 |
Interior Partition wall |
siding |
double 12mm plasterboard |
toilet |
high-quality toilet |
| cornering |
high quality plaster cornering |
bathtub |
high-quality bathtub |
| Skirting |
solid wood and tile |
shower |
high-quality shower |
| 5 |
Floor System |
subfloor for ground floor (Wet area ) |
NULL |
8 |
Doors and windows, plumbing |
Exterior door |
security door |
| Subfloor for another floor ( Wet area ) |
20mm fiber cement board |
windows |
double glass Alum. Windows |
| flooring for ground floor (dry area) |
wooden flooring |
interior door |
high-quality plywood door |
| flooring for gound floor ( wet area) |
high-quality ceramic tile |
hot&cold water pipe |
high-quality PPR PIPE |
| Flooring for another floor (wet area) |
high-quality ceramic tile |
Downpipe |
high-quality PVC downpipe |
| Flooring for other floors dry area |
wooden flooring |
9 |
Electrical system and multi media |
telphone cable |
included |
| Insulation |
glass wool |
TV. CABLE |
included |
| The ceiling for dry area |
12mm plaster board |
internet cable |
included |
| the ceiling for wet area |
PVC ceiling |
electrical cables |
included |
| stairs (If have) |
steel stairs with armrest |
lighting |
ceiling light |
| notice: |
distribution box |
Included |
| 1 |
EX.W mean EX.works, pls find explaination from wikipedia |
switch |
Included |
| 2 |
This price does not include foundation, cement works, and any other cost. |
11 |
Others |
INSTALLATION FEE |
Optional |
| 3 |
This price does not include the design fee. |
SUPERVISOR |
Optional |
| 4 |
This price does not include any furnitures and others. |
| 5 |
This price is only for listed materials |
| 6 |
All electrical is based on Chinese standard types of equipment. |
| 7 |
The total windows area is no more than 15% of the building area. The ceiling height is calculated 2.5m. |
| 8 |
The final price needs to be confirmed based on final drawings and order-confirm-letter. |
| 9 |
If you have any questions, pls contact DEEPBLUE. |
Why Choose Light Gauge Steel Structure?
1) Lifetime for structure: 100 years.
2) Earthquake resistance: mix more than 8 grades.
3) Wind resistance: max 60m/s.
4) Fire resistance: all the materials used can be fire resistance.
5) Snow resistance: max 2.9KN/m²as required
6) Heat insulation: 100 mm in thickness can match 1 m thickness of the brick wall.
7) High acoustic insulation: 60db of exterior wall 40db of interior wall
8) Insect prevention: Free from the damages by insects, such as white ants
9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11) Installation: the average is one worker one day install one SQM.
12) Installation guide: dispatch engineer to guide on site.
Design Code:
1) AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
2) AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
3) BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
4) ENV1993-1-3 means Euro code 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
Your first choice, Deepblue Prefabricated house in China.
