Green Modular Homes/Steel Prefabricated Villa Construction With Insulation Material In Standard

Green Modular Homes/Steel Prefabricated Villa Construction With Insulation Material In Standard

Green Modular Homes/Steel Prefabricated Villa Construction With Insulation Material In Standard

Product Details:

Place of Origin: NINGBO,CHINA
Brand Name: DEEPBLUE
Certification: AS/NZS,UL,AISI,
Model Number: DP-V05-233

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: 200-800USD/SQM
Packaging Details: Bare bundle / 40HQ
Delivery Time: 30-45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 12000houses/year
Contact Now
Detailed Product Description
Frame Mterial: 0.75mm/0.95mm/1.15mm Steel Frame With AZ150 Zinc Coating External Wall: 100 Or 50 Mm ALC Panel/WPC Board/fibre Cement
Insulation: Glass Wool/EPS/XPS/PU Sandwich Panel Ceiling Material: MGO Board/ Gypsum Board+others
Floor: Laminate/wooden/tile Door: Metal Security Door/PVC Sliding Door
Roofing: EPS Sandwich Panel/steel Roofing/asphalt Other Fitting: Toilet, Washbasin,shower ,kitchen,etc
High Light:

contemporary modular homes

,

steel frame houses

Green Modular Homes/Steel Prefabricated Villa Construction With Insulation Material In Standard



Quick Detail:



Name

prefabricated villa

Application

Villa for living

Color

white

Feature

1.quickly to assemble on-site;

2.good earthquake proof;

3.green and energy save;

Material

light steel and other parts material

Certificate

CE,ISO,SAA,ETC



Green Modular Homes/Steel Prefabricated Villa Construction With Insulation Material In Standard 0



Description:



Main structure: Light Gauge Steel

Wall material: ALC panel/fiber cement cladding+MGO board/gypsum board

Insulation material: Insulation material

Ceiling material: MGO board/gypsum board

Floor/foundation material: laminate flooring/wooden/PVC carpet

Door: steel security door/WPC or plywood door

Window: aluminum alloy/PVC

Roofing: EPS sandwich panel/steel roofing/asphalt shingle

Other fittings: toilet, washbasin, shower, kitchen, etc.

Lifetime: 100 years for structure




Applications:



House, Office, Villa, etc.





Specifications



Product Description



DeepBlue steel structural prefab villa is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers. the materials are the following: 1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard.  the structure can be design to resist 50m/s wind and 9degree earthquake.

2. Roof structure: 89mm light gauge steel truss system.

3. Chassis: 89mm light gauge steel flooring chassis 4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, PVC carpet, etc. 5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration 6. interior lining: 9m fiber cement board,water-proof,termite-proof, security and healthy

7. ceiling: 8mm PVC ceiling panel

8. insulation: 89mm glass wool insulation with good soundproof performance.

9.windows: PVC sliding windows

10.exterior door: high-quality aluminum sliding windows 11.interior door: painted wood door 12.bathroom: shower, washbasin, toilet included 13. roofing: corrugated steel roofing with gutter system 14. veranda deck: W.P.C veranda flooring.





ISO standard light gauge steel for the main structure.fireproof, heat insulation, wind, and earthquake resistance.green, energy saving. also economically.





Why Choose Light Gauge Steel Structure?



1)Lifetime for structure: 100 years.[0.75~1.2mm , Z275galvanized steel profile, strength:550Mpa ]

2)Earthquake resistance: mix more than 8 grades.

3)Wind resistance:max 60m/s.

4)Fire resistance: all the materials used can be fire resistance.

5)Snow resistance: max 2.9KN/m²as required

6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.

7)High acoustic insulation:60db of exterior wall 40db of interior wall

8)Insect prevention: Free from the damages by insects, such as white ants

9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean

10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.

11)Installation: the average is one worker one day install one SQM.

12)Installation guide: dispatch engineer to guide on site.

Company Introduction:

Since Yinhua Cheney founded the company in 2009, we have been proud to provide affordable manufactured and modular homes, apartments, commercial buildings, military barracks, and college dormitories to people all across the world. From humble beginnings, we have since built more than 5000 homes and won multiple awards for both design and construction. Today we build, sell, finance, lease, and ensure our building from China to the world
(1) With over 10 years of experience in the Prefab housing Business;
(2)Exporting prefab houses to more than 60 countries and NGO, including USA, Australia, France, Africa, South America, United Nation;
(3)Owner of 59 patents;
(4)including our revolutionary Unique folding design patent;
(5)Supply both Luxury house and social housing;
(6)Excellent understanding in Developer/Builder relationship requirements
(7)Expert at low-cost housing solutions for government



Green Modular Homes/Steel Prefabricated Villa Construction With Insulation Material In Standard 1

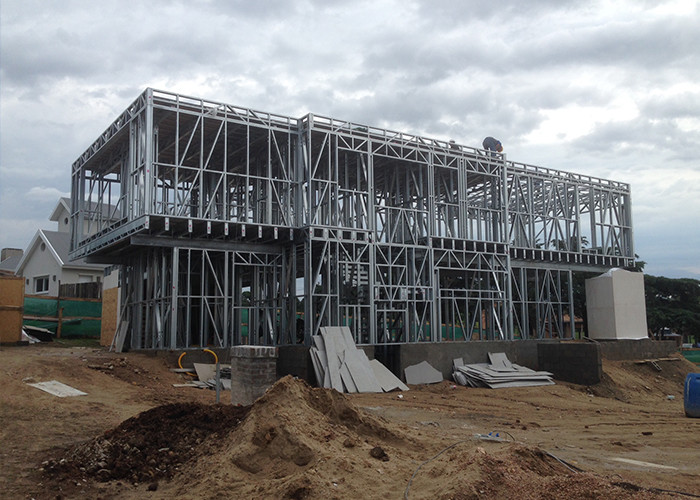

Production in DeepBlue factory:



Green Modular Homes/Steel Prefabricated Villa Construction With Insulation Material In Standard 2

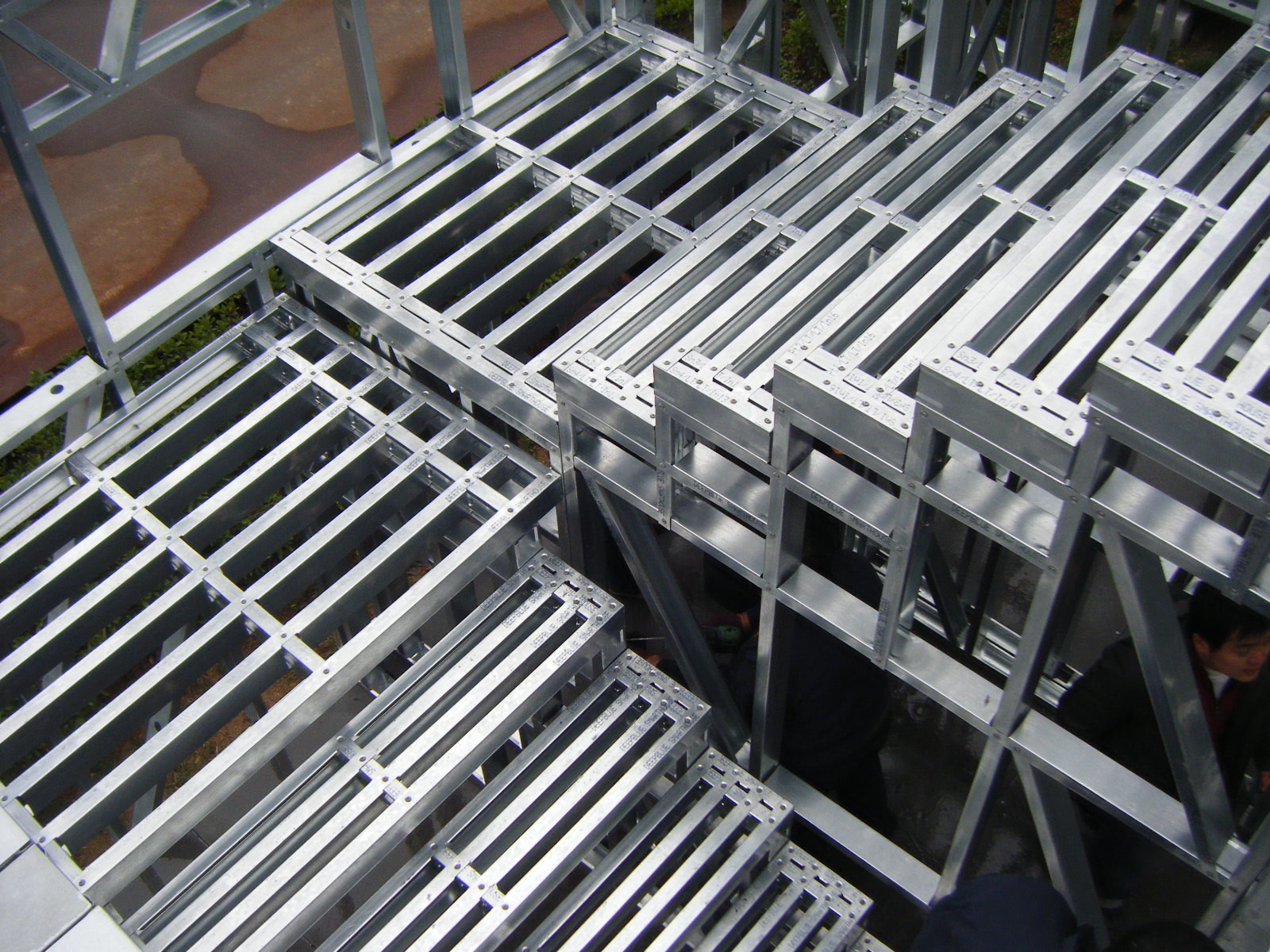

How To Assemble:



Green Modular Homes/Steel Prefabricated Villa Construction With Insulation Material In Standard 3





Design code:



(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.



(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.



(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.



(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

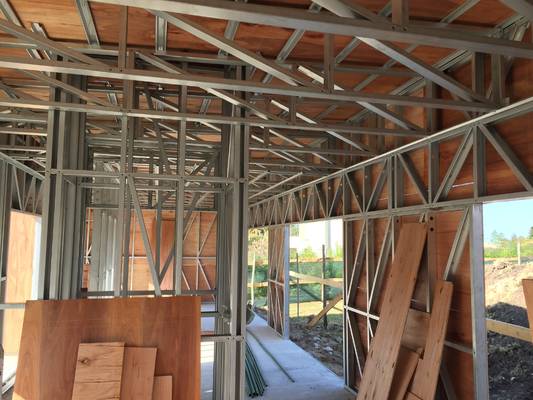

Technology Details:



 Green Modular Homes/Steel Prefabricated Villa Construction With Insulation Material In Standard 4





If You Need: prefabricated kit home; prefab kit home. steel structure homes.steel frame house



Only Need You To Provide Us: house area, how many floors and bedrooms, luxury or normally, or low-cost configuration.



We Can Provide You: villa; bungalow; low-cost house; granny flat; apartment etc.many buildings.
