|Place of Origin:||NINGBO,CHINA|
|Minimum Order Quantity:||1 SET|
|Packaging Details:||Bare bundle / 40HQ|
|Delivery Time:||30-45 days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||12000 houses/year|
|Frame Mterial:||0.75mm/0.95mm/1.15mm Steel Frame With AZ150 Zinc Coating||External Wall:||100 Or 50mm ALC Panel/WPC Board/fibre Cement|
|Insulation:||Glass Wool/EPS/XPS/PU Sandwich Panel||Ceiling Material:||MGOboard/ Gypsum Board+others|
|Floor:||Laminate/wooden/tile||Roofing:||EPS Sandwich Panel/steel Roofing/asphalt|
|Door:||Metal Security Door/Pvc Sliding Door||Other Fitting:||Toilet, Washbasin,shower ,kitchen,etc|
prefab metal buildings,
prefab steel buildings

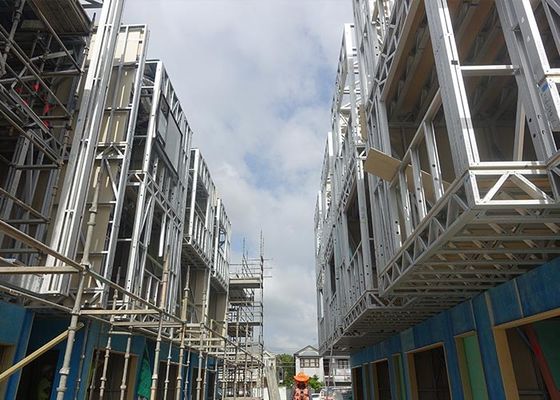

Steel Structure Labor Prefab Apartment Buildings / White Modular Homes
Residents of the apartment
White,red, yellow,etc,depend on customer’s request
1.quickly to assemble on site
2.good earthquake proof
3.green,and energy save
light steel and other parts material
Main structure: Light Gauge Steel
Wall cladding: ALC panel/fibre cement cladding+MGO board/gypsum board
Insulation material: glass wool or also EPS/XPS/PU sandwich panel
Ceiling material: MGO board/gypsum board
Roof: EPS sandwich panel/steel roofing/asphalt shingle
Flooring: laminate flooring/wooden/PVC carpet
Door: steel security door/WPC or wooden door
Window: aluminum alloy/PVC
Other fittings: toilet,washbasin,shower,kitchen etc.
Life time: 100 years for structure
Hotel, House, Office, Villa,etc
low cost steel frame apartment building:
ISO standard light gauge steel for main structure.fireproof,heat insulation,wind and earthquake resistance.green,energy save. also economically.
Why Choose Light Gauge Steel Structure?
1)Lifetime for structure: 100 years.[0.75~1.2mm , Z275galvanized steel profile, strength:550Mpa ]
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance:all the materials used can be fire resistance.
5)Snow resistance:max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation:a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorate materials.
11)Installation:the average is one worker one day install one SQM.
12)Installation guide:dispatch engineer to guide on site.
(1)AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
If You Need: prefabricated kit home; prefab kit home.steel structure homes.steel frame house
Only Need You To Provide Us:house area,how many floor and bedrooms,luxury or normally,or low cost configuation.
We Can Provide You:villa;bungalw;low cost house;granny flat;apartment etc.many style house.
answer for apartment :
1. Q: What is the advantage of this steel structure system house(compare with the traditional brick house)?
A:.Long lifetime;Good earthquake proof,Green and energy saving;Fast and easy to install etc……
2. Q:What is lifetime for your houses?
A:The durable for structure is more than 70 years.
3. Q:What is the intensity and thickness for your steel structure material?
A:All our steel structure intensity are S550. We can provide 0.75mm,0.95mm,1.15mm steel material.
4. Q:How about your production equipment and structure design software?
A:Our production equipment are the most advanced import from New-Zealand. Our structure design software also import from abroad-PRO DESIGN.
5. Q:What are the main technical data of your houses?
A:We can send you the specification and technology details.
