Steel Structural Prefabricated Home / Typhoon Resistance Light Gauge Steel House Prefab house Light Frame House

Steel Structural Prefabricated Home / Typhoon Resistance Light Gauge Steel House Prefab house Light Frame House

DEEPBLUE SMARTHOUSE is a comprehensive provider of prefab home solutions, offering a range of options for developers, builders, architects, and private buyers. They use metal frame construction, which can provide a durable and cost-effective solution for building homes.

Prefab homes are a type of housing that is built offsite in a factory and then assembled on location. They offer a number of benefits, including faster construction times, lower costs, and increased energy efficiency compared to traditional site-built homes. Metal frame prefab homes, in particular, are known for their durability and ability to withstand extreme weather conditions, making them a good choice for a wide range of locations and climates

Quick Detail:

Description:

Main structure: Light Gauge Steel

Wall material: ALC panel/fiber cement cladding+MGO board/gypsum board

Insulation material: Insulation material-glass wool

Ceiling material: MGO board/gypsum board with painting

Floor/foundation material: laminate flooring/wooden/PVC carpet

Door: steel security door/WPC or plywood door

Window: aluminum alloy/PVC

Roofing: steel sheet roofing/asphalt shingle

Other fittings: toilet, washbasin, shower, kitchen, etc.

Lifetime: 100 years for structure


Applications:

House,Villa,etc.

Product Description

DeepBlue steel structural prefab villa  is based on a light gauge steel frame system with high-performance finishing materials.the materials are the following:

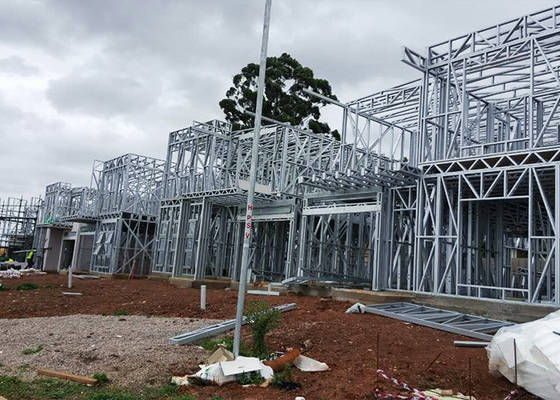

1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard.  the structure can be design to resist 60m/s wind and an 8degree earthquake.

2. Roof structure: 89mm light gauge steel truss system.

3. Chassis: 89mm light gauge steel flooring chassis

4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring etc.

5.Wall cladding: ALC panel/fiber cement board/WPC etc.

6. interior lining: Gypsum board with painting.

7. ceiling: Gypsum board with painting.

8. insulation: 89mm glass wool insulation with good soundproof performance.

9.windows: PVC or ALU. sliding windows

10.exterior door: high-quality aluminum sliding windows

11.interior door: painted wood door

12.bathroom: shower, washbasin, toilet included

13. roofing: corrugated steel roofing with the gutter system

14. veranda deck: W.P.C veranda flooring.

ISO standard light gauge steel for the main structure. fireproof, heat insulation, wind, and earthquake resistance. green, energy save. also economically.

Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.[0.75~1.2mm, Z275galvanized steel profile, strength:550Mpa ]

2)Earthquake resistance: mix more than 8 grades.

3)Wind resistance:max 60m/s.

4)Fire resistance: all the materials used can be fire-resistant.

5)Snow resistance: max 2.9KN/m²as required

6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.

7)High acoustic insulation:60db of exterior wall 40db of interior wall

8)Insect prevention: Free from the damages by insects, such as white ants

9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean

10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.

11)Installation: the average is one worker one day install one SQM.

12)Installation guide: dispatch engineer to guide on site.

How To Assemble:

Design code:

(1)AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.

(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.

(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.

(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Technology Details:

If You Need: prefabricated kit home; prefab kit home.steel structure homes.steel frame house

Only Need You To Provide Us:house area, how many floor and bedrooms,luxury or normally,or low cost configuation.

We Can Provide You:villa;bungalw; low-cost house;granny flat;apartment etc.many buildings.

Company Information

The DeepBlue Smarthouse world is one with advanced production equipment, managed by outstanding professionals, within a sound training environment. Together with our excellent corporate atmosphere, we provide you with first-for our customers, that's our commitment to you.

Packaging & Shipping

Granny Flat's packing: well-packed export quality package,shipped by 40hq.
