AS/NZS Standard Bungalow Prefab Tiny Homes Modern Prefab Dome Chalet Football House

AS/NZS Standard Bungalow Prefab Tiny Homes Modern Prefab Dome Chalet Football House

Football House
1 bedroom 1 bathroom 0 car spaces 56.2 m²

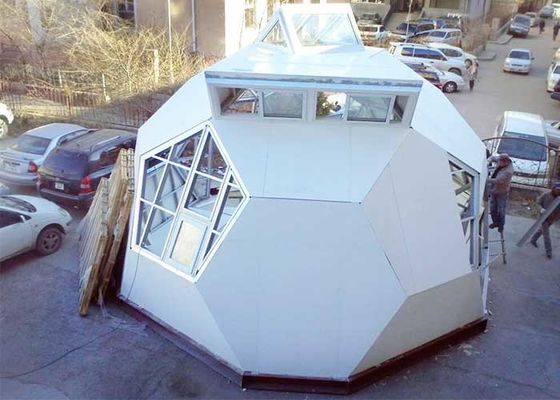

It looks like a dome. It is very modern and has a strong sense of technology.
There is a skylight in the roof, so you can lie in bed and enjoy the beautiful night view.
It is very suitable to be built on the seaside or on the mountain and to experience the natural scenery while also meeting the needs of living.

1. The window has a very special shape.
2. The whole wall is composed of multiple pentagons.
3. There is a skylight on the roof for a night view.

Floor plan













Main structure	Light Gauge Steel
Wall cladding	ALC panel/fibre cement cladding+MGO board/gypsum board
Insulation material	glass wool or also EPS/XPS/PU sandwich panel
Ceiling material	MGO board/gypsum board
Roof	EPS sandwich panel/steel roofing/asphalt shingle
Flooring	laminate flooring/wooden/PVC carpet
Door	steel security door/WPC or wooden door
Window	aluminum alloy/PVC









Specifications



No.	Item	Material	Specification
1	Foundation	Fixing to foundation	Chemical bolt
2	Structure	Steel frame wall	0.75/0.95/1.15mm steel wall
		Roof truss	0.75/0.95/1.15mm steel truss
		Joist (chassis)	0.75/0.95/1.15mm steel joist
3	Roofing system	Batten	35mm batten
		Vapor barrier	Normal vapor barrier
		Tile	Optional
		Insulation	Glasswool
4	Ceiling system	Batten	22mm batten
		Ceiling	Gypsum/MGO board, etc.
		Insulation	Glasswool
5	Exterior wall	Ext. wall cladding	Optional
		Vapor barrier	Normal vapor barrier
		Insulation	Glasswool
6	Interior wall	Lining	Optional
		Insulation	Glasswool
7	Floor system	Underneath of floor	CFC/ALC board, etc.
		Flooring	Optional
		Insulation	Glasswool
8	Kitchen (if in the plan)	Kitchen cabinet	Optional
		Countertop	Optional
		Sink	Optional
9	Bathroom (if in the plan)	Toilet	Optional
		Washbasin	Optional
		Shower	Optional
10	Doors and windows	Exterior door	Optional
		Interior door	Optional
		Window	Optional







Indoor:

There are bedrooms and bathrooms in the room. Available for accommodation and rest Lying in bed, you can see the stars in the sky.

Customers can choose interior decoration styles according to their needs.

Blending with nature:

The Dome Tree House is situated on a large tree by the river. This tree is about 20 years old. Through the connection of stairs. You can see the flowing water of the creek on the treehouse achieving the effect of blending with nature.

Why Choose Light Gauge Steel Structure?

Design code:

(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Our Services

If You Need: prefabricated kit home; prefab kit home. steel structure homes.steel frame house, light steel structure, Tiny House on wheels, social house, apartment building, commercial building...

Only Need You To Provide Us: house area, how many floors and bedrooms, luxury or normally, or low-cost configuration.

We Can Provide You: villa; bungalow; low-cost house; granny flat; apartment etc. many style house.
