Home ProductsPrefab Villa

Prefab Home Kits Sandwich Panel Vintage Luxury Double Ul Prefab Villa

Prefab Home Kits Sandwich Panel Vintage Luxury Double Ul Prefab Villa

    • Prefab Home Kits Sandwich Panel Vintage Luxury Double Ul Prefab Villa
    • Prefab Home Kits Sandwich Panel Vintage Luxury Double Ul Prefab Villa
    • Prefab Home Kits Sandwich Panel Vintage Luxury Double Ul Prefab Villa
    • Prefab Home Kits Sandwich Panel Vintage Luxury Double Ul Prefab Villa
    • Prefab Home Kits Sandwich Panel Vintage Luxury Double Ul Prefab Villa
  • Prefab Home Kits Sandwich Panel Vintage Luxury Double Ul Prefab Villa

    Product Details:

    Place of Origin: Zhejiang, China (Mainland)
    Brand Name: DEEPBLUE
    Certification: AS/NZS,UL,AISI,
    Model Number: VILLA 42

    Payment & Shipping Terms:

    Minimum Order Quantity: 2 SETS
    Price: 200-500 USD/SQM
    Packaging Details: Bare bundle / 40HQ
    Delivery Time: 30-45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 12000 houses/year
    Contact Now
    Detailed Product Description
    Use: Villa,House,Hotel Material: Steel,Sandwich Panel,Various Of Choice
    Product Name: Prefab Villa,prefab Steel House,villa Houses Luxury Size: As You Required
    Type: 2 Floors Structure: Steel Frame
    Main Structure: H-beam Steel,Keel Structure Frame,House Body + Hydroelectric System + Decoration System Application: Steel Fabricated House,Steel Structure Warehouse,Family Use
    Design: Optional Name: 2018 New Product Simplified Modernity Light Steel Modular Homes
    Fire Rated Partition: 4 Hours
    High Light:

    ul prefab villa

    ,

    2 floors prefab villa

    ,

    sandwich panel prefab villa

    Affordable Prefab House Green Prefab Homes Vintage Luxury Double Villa



    Quick Detail:



    Name Double-storey detached villa Application Villa for living
    Colour Customs made Feature

    1.Good wind resistance and seismic resistance

    2.Fast construction speed

    3.low-carbon and environmentally-friendly



    Material Focus on light steel Certificate AS/NZS, UL, AISI



    Prefab Home Kits Sandwich Panel Vintage Luxury Double Ul Prefab Villa 0



    Product Description



    DeepBlue steel structural prefab villa is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers. the materials are the following:

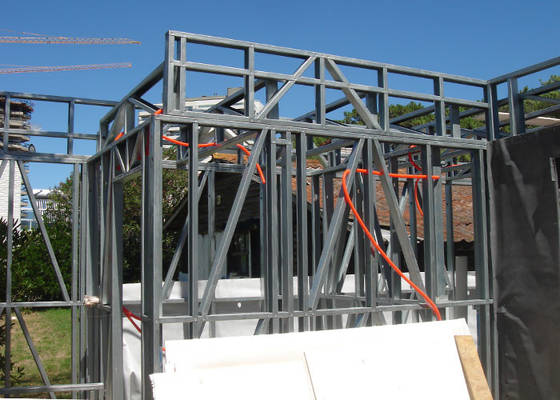

    1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard. the structure can be design to resist 50m/s wind and a 9degree earthquake.

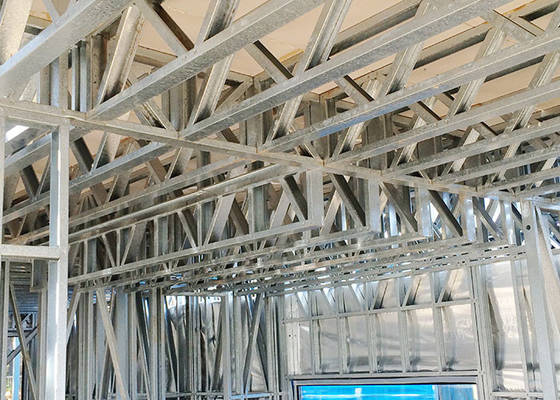

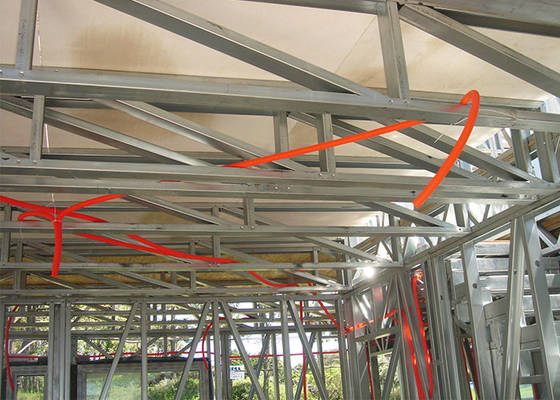

    2. Roof structure: 89mm light gauge steel truss system.

    3. Chassis: 89mm light gauge steel flooring chassis

    4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, PVC carpet, etc.

    5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration

    6. interior lining: 9m fiber cement board,water-proof,termite-proof, security and healthy

    7. ceiling: 8mm PVC ceiling panel

    8. insulation: 89mm glass wool insulation with good soundproof performance.

    9.windows: PVC sliding windows

    10.exterior door: high-quality aluminum sliding windows 11.interior door: painted wood door 12.bathroom: shower, washbasin, toilet included 13. roofing: corrugated steel roofing with gutter system 14. veranda deck: W.P.C veranda flooring.





    Description:





    Main structure: Light Gauge Steel

    Wall material: ALC panel/fiber cement cladding+MGO board/gypsum board

    Insulation material: Insulation material

    Ceiling material: MGO board/gypsum board

    Floor/foundation material: laminate flooring/wooden/PVC carpet

    Door: steel security door/WPC or plywood door

    Window: aluminum alloy/PVC

    Roofing: EPS sandwich panel/steel roofing/asphalt shingle

    Other fittings: toilet, washbasin, shower, kitchen, etc.

    Lifetime: 100 years for structure





    Applications:



    House, Villa, hotel, rumpus room, etc





    ISO standard: light gauge steel for the main structure.fireproof, heat insulation, wind, and earthquake resistance.green, energy saving. also economically.

    Prefab Home Kits Sandwich Panel Vintage Luxury Double Ul Prefab Villa 1

    Why Choose Light Gauge Steel Structure?



    1)The lifetime of structure: 100 years.[0.75~1.2mm, Z275galvanized steel profile, strength:550Mpa ]

    2)Earthquake resistance: min more than 8 grades.

    3)Wind resistance:max 60m/s.

    4)Fire resistance: all the materials that are used can be fire-resistant.

    5)Snow resistance: max 2.9KN/m² as required.

    6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.

    7)High acoustic insulation:60db of exterior wall 40db of the interior wall.

    8)Insect prevention: Free from the damages by insects, such as white ants.

    9)Ventilation: a combination of natural ventilation or air supply to keep the indoor air fresh and clean.

    10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.

    11)Installation: the average is one worker one day install one SQM.

    12)Installation guide: dispatch engineer to guide on site.



    Company Introduction:

    Since Yinhua Cheney founded the company in 2009, we have been proud to provide affordable manufactured and modular homes, apartments, commercial buildings, military barracks, and college dormitories to people all across the world. From humble beginnings, we have since built more than 5000 homes and won multiple awards for both design and construction. Today we build, sell, finance, lease, and ensure our building from China to the world.
    (1) With over 10 years of experience in the Prefab housing Business;
    (2)Owner of 59 patents;

    (3)Exporting prefab houses to more than 60 countries and NGOs, including USA, Australia, France, Africa, South America, United Nation;
    (4)including our revolutionary Unique folding design patent;
    (5)Supply both Luxury house and social housing;
    (6)Excellent understanding in Developer/Builder relationship requirements;
    (7)Expert at low-cost housing solutions for government;







    Prefab Home Kits Sandwich Panel Vintage Luxury Double Ul Prefab Villa 2Prefab Home Kits Sandwich Panel Vintage Luxury Double Ul Prefab Villa 3Prefab Home Kits Sandwich Panel Vintage Luxury Double Ul Prefab Villa 4



    Design code:



    (1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.



    (2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.



    (3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.



    (4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.



    Technology Details:



    If You Need: prefabricated kit home; prefab kit home. steel structure homes.steel frame house



    Only Need You To Provide Us: house area, how many floors and bedrooms, luxury or normally, or low-cost configuration.



    We Can Provide You: villa; bungalow; low-cost house; granny flat; apartment etc. many buildings.

    Prefab Home Kits Sandwich Panel Vintage Luxury Double Ul Prefab Villa 5
