Modular Portable Light Steel Villa House Luxury Prefab Houses Insulation Material

Chinese supplier Luxury Modular portable homes prefab house Light steel villa

Prefab house

  4 bedrooms     4 bathrooms     1 living room    300 m²

Description:

Main structure: Light Gauge Steel

Wall material: ALC panel/fiber cement cladding+MGO board/gypsum board

Insulation material: Insulation material

Ceiling material: MGO board/gypsum board

Floor/foundation material: laminate flooring/wooden/PVC carpet

Door: steel security door/WPC or plywood door

Window: aluminum alloy/PVC

Roofing: EPS sandwich panel/steel roofing/asphalt shingle

Other fittings: toilet, washbasin, shower, kitchen, etc.

Life time: 100 years for structure

There is a large living room on the first floor, which provides a large entertainment area for the children. In this way, you can play at home in rainy days. There are four bedrooms in total, which are suitable for the family's life, and the guests at home have convenient accommodation. The four bathrooms can be better used and meet the needs as much as possible. The overall house design is a more ingenious use of space, unique design. More distinctive

Floor plan

104#villa has two plans of options

• Welcoming side entrance to the home.
• Each bedroom's own bathroom guarantees privacy.
• The living rooms on the first and second floors meet the different needs of the family.
• Second-floor void allowing light to flow through the home.

Quick Detail:

Specifications



Product Description

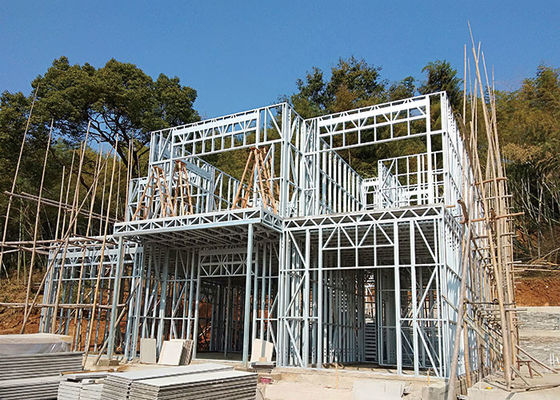

DeepBlue steel structural prefab villa is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers. the materials are the following: 1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard.  the structure can be design to resist 50m/s wind and 9degree earthquake.

2. Roof structure: 89mm light gauge steel truss system.

3. Chassis: 89mm light gauge steel flooring chassis 4. flooring: 18mm fiber cement board with vapor barrior and bamboo flooring or wooden flooring, pvc carpet, etc. 5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration 6. interior lining: 9m fiber cement board,water-proof,termite-proof, security and healthy

7. ceiling: 8mm pvc ceiling panel

8. insulation: 89mm glasswool insulation with good sound proof performance.

9.windows: PVC sliding windows

10.exterior door: high-quality aluminim sliding windows 11.interior door: painted wood door 12.bathroom: shower, wash basin, toilet inculded 13. roofing: corrugated steel roofing with gutter system 14. veranda deck: W.P.C veranda flooring.

ISO standard light gauge steel for the main structure.fireproof, heat insulation, wind, and earthquake resistance.green, energy saving. also economically.

Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.[0.75~1.2mm, Z275galvanized steel profile, strength:550Mpa ]

2)Earthquake resistance: mix more than 8 grades.

3)Wind resistance:max 60m/s.

4)Fire resistance: all the materials used can be fire-resistant.

5)Snow resistance: max 2.9KN/m²as required

6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.

7)High acoustic insulation:60db of exterior wall 40db of interior wall

8)Insect prevention: Free from the damages by insects, such as white ants

9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean

10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.

11)Installation: the average is one worker one day install one SQM.

12)Installation guide:dispatch engineer to guide on site.

Company Introduction:

Since Yinhua Chen founded the company in 2009, we have been proud to provide affordable manufactured and modular homes, apartments, commercial buildings, military barracks, and college dormitories to people all across the world. From humble beginnings, we have since built more than 5000 homes and won multiple awards for both design and construction. Today we build, sell, finance, lease, and insure our building from China to the world
(1) With over 10 years of experience in the Prefab housing Business;
(2)Exporting prefab houses to more than 60 countries and NGO,includingUSA, Australia, France, Africa, South America, United Nation;
(3)Owner of 59 patents;
(4)including our revolutionary Unique folding design petent;
(5)Supply both Luxury house and social housing;
(6)Excellent understanding of Developer/Builder relationship requirements
(7)Expert at low-cost housing solutions for government

Production in DeepBlue factory:

Design code:

(1)AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.

(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.

(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold formed thin gauge sections published by BSI in the UK.

(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Technology Details:

Packing&Shiping:

If You Need: prefabricated kit home; prefab kit home.steel structure homes.steel frame house

Only Need You To Provide Us: house area, how many floors and bedrooms, luxury or normally, or low-cost configuation.

We Can Provide You: villa;bungalw; low-cost house; granny flat; apartment etc.many buildings.
