|Place of Origin:||NINGBO,CHINA|
|Model Number:||LOT 128|
|Minimum Order Quantity:||1SET|
|Packaging Details:||Bare bundle / 40HQ|
|Payment Terms:||T/T, L/C, Western Union|
|Frame Mterial:||0.75mm/0.95mm/1.15mm Steel Frame With AZ150 Zinc Coating||External Wall:||100 Or 50mm ALC Panel/WPC Board/fibre Cement|
|Insulation:||Glass Wool/EPS/XPS/PU Sandwich Panel||Ceiling Material:||MGOboard/ Gypsum Board+others|
|Floor:||Laminate/wooden/tile||Door:||Metal Security Door/Pvc Sliding Door|
|Roofing:||EPS Sandwich Panel/steel Roofing/asphalt||Other Fitting:||Toilet, Washbasin,shower ,kitchen,etc|
pre manufactured homes,
steel frame houses

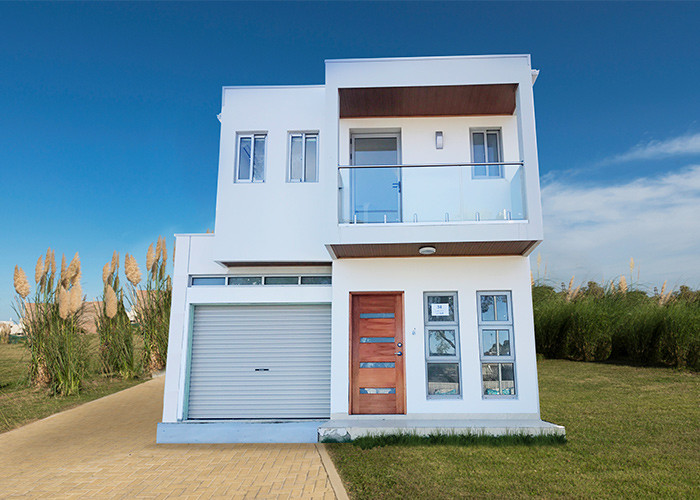

Stable Prefabricated Residential Buildings With lightweight steel houses
3 bedrooms 2 bathrooms 2 living room 154 m²
|Name||prefabricated villa||Application||Villa for living|
|Color||white,gray and other||Feature||
1.quickly to assemble on site;
|Material||light steel and other parts material||Certificate||CE,ISO,SAA,ETC|
Main structure: Light Gauge Steel
Wall material: ALC panel/fibre cement cladding+MGO board/gypsum board
Insulation material: Insulation material
Ceiling material: MGO board/gypsum board
Floor/foundation material: laminate flooring/wooden/PVC carpet
Door: steel security door/WPC or plywood door
Window: aluminum alloy/PVC
Roofing: EPS sandwich panel/steel roofing/asphalt shingle
Other fittings: toilet,washbasin,shower,kitchen etc.
Life time: 100 years for structure
House, Office, Villa,etc.
DeepBlue steel structural prefab villa is based on light gauge steel frame system with high performance finishing materials. The whole house can be assembled within couple of hours by 4workers. the materials are the following:
1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard. the structure can be design to resist 50m/s wind and 9degree earthquake.
2. Roof structure: 89mm light gauge steel truss system.
3. Chassis : 89mm light gauge steel flooring chassis
4. flooring: 18mm fiber cement board with vapor barrior and bamboo flooring or wooden flooring , pvc carpet etc.
5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration
6. interior lining: 9m fiber cement board ,water-proof ,termite-proof ,security and healthy
7. ceiling: 8mm pvc ceiling panel
8. insulation: 89mm glasswool insulation with good sound proof performance.
9.windows: PVC sliding windows
10.exterior door: high quality aluminim sliding windows
11.interior door: painted wood door
12.bathroom: shower, wash basin, toilet inculded
13. roofing: corrugated steel roofing with gutter system
14. veranda deck: W.P.C veranda flooring.
ISO standard light gauge steel for main structure.fireproof,heat insulation,wind and earthquake resistance.green,energy save. also economically.
Why Choose Light Gauge Steel Structure?
1)Lifetime for structure: 100 years.[0.75~1.2mm , Z275galvanized steel profile, strength:550Mpa ]
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance:all the materials used can be fire resistance.
5)Snow resistance:max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation:a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorate materials.
11)Installation:the average is one worker one day install one SQM.
12)Installation guide:dispatch engineer to guide on site.
process of construction:
Production in DeepBlue factory:
(1)AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
If You Need: prefabricated kit home; prefab kit home.steel structure homes.steel frame house
Only Need You To Provide Us:house area,how many floor and bedrooms,luxury or normally,or low cost configuation.
We Can Provide You:villa;bungalw;low cost house;granny flat;apartment etc.many buildings.
Your first choice,Deepblue Prefabricated house in China.
Contact Person: Vincent
