Modern Prefabricated Villa / Prefabricated Light Steel Frame House Building

Place of Origin NINGBO,CHINA
Brand Name DEEPBLUE
Certification AS/NZS,UL,AISI,
Model Number DP-716
Minimum Order Quantity 200 sqm
Price 370-450USD/SQM
Packaging Details Bare bundle / 40HQ
Delivery Time 30-45 days
Payment Terms T/T, L/C, Western Union
Supply Ability 12000 houses/year
Product Details
Frame Mterial 0.75mm/0.95mm/1.15mm Steel Frame With AZ150 Zinc Coating External Wall 100 Or 50mm ALC Panel/WPC Board/fibre Cement
Insulation Glass Wool/EPS/XPS/PU Sandwich Panel Ceiling Material MGOboard/ Gypsum Board+others
Floor Laminate/wooden/tile Door Metal Security Door/Pvc Sliding Door
Roofing EPS Sandwich Panel/steel Roofing/asphalt Other Fitting Toilet, Washbasin,shower ,kitchen,etc
High Light

pre manufactured homes

,

contemporary modular homes

Leave a Message
Product Description

Modern Prefabricated Villa / Prefabricated Light Steel Frame House Building​

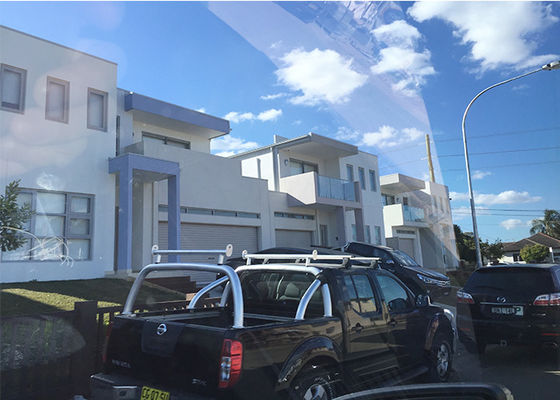

villawood ​:



Project date: 2015-2017
Project location: Sydney,Australia
200sets 2floors homes
Area: Over 50000sqm
Supplier:DeepBlue



Modern Prefabricated Villa / Prefabricated Light Steel Frame House Building 0

Modern Prefabricated Villa / Prefabricated Light Steel Frame House Building 1

Description:



Main structure: Light Gauge Steel

Wall material: ALC panel/fiber cement cladding+MGO board/gypsum board

Insulation material: Insulation material

Ceiling material: MGO board/gypsum board

Floor/foundation material: laminate flooring/wooden/PVC carpet

Door: steel security door/WPC or plywood door

Window: aluminum alloy/PVC

Roofing: EPS sandwich panel/steel roofing/asphalt shingle

Other fittings: toilet, washbasin, shower, kitchen, etc.

Lifetime: 100 years for structure



Modern Prefabricated Villa / Prefabricated Light Steel Frame House Building 2

Modern Prefabricated Villa / Prefabricated Light Steel Frame House Building 3



Applications:



House, Office, Villa, etc.





DeepBlue steel structural prefab villa is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers. the materials are the following:

1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard.  the structure can be design to resist 50m/s wind and 9degree earthquake.

2. Roof structure: 89mm light gauge steel truss system.

3. Chassis: 89mm light gauge steel flooring chassis

4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, PVC carpet, etc.

5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration

6. interior lining: 9m fiber cement board,water-proof,termite-proof, security and healthy

7. ceiling: 8mm PVC ceiling panel

8. insulation: 89mm glass wool insulation with good soundproof performance.

9.windows: PVC sliding windows

10.exterior door: high-quality aluminum sliding windows

11.interior door: painted wood door

12.bathroom: shower, washbasin, toilet included

13. roofing: corrugated steel roofing with a gutter system

14. veranda deck: W.P.C veranda flooring.

ISO standard light gauge steel for the main structure. fireproof, heat insulation, wind, and earthquake resistance.green, energy saving. also economically.





Modern Prefabricated Villa / Prefabricated Light Steel Frame House Building 4
Specifications:
ISO standard steel structure house .one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance. green, energy-saving. economically.
Why Choose Light Gauge Steel Structure?
1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.
Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Modern Prefabricated Villa / Prefabricated Light Steel Frame House Building 5


Resistant to various weather conditions, due to its light gauge steel framing system, DeepBlue Mobile Homes can resist winds up to 50m/s, 50cm snow loads as well withstand earthquakes due to its special steel structure technology.
The DeepBlue Mobile Houses manufacturing technology is truly a mature product characterized by flexibility and innovative design and solution.
Modern Prefabricated Villa / Prefabricated Light Steel Frame House Building 6
Modern Prefabricated Villa / Prefabricated Light Steel Frame House Building 7
Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.

Your first choice, Deepblue Prefabrica
