|Place of Origin:||NINGBO,CHINA|
|Brand Name:||DEEPBLUE SMARTHOUSE|
|Model Number:||Hutong Yard|
|Minimum Order Quantity:||1unit|
|Delivery Time:||30-45 working days|
|Payment Terms:||Western Union, T/T, L/C|
|Insulation Material:||EPS/XPS/PU Sandwich Panel Or Glass Wool||Main Materials:||Light Gauge Steel|
|Other Fittings:||Toilet,washbasin,shower,kitchen Etc.||Ceiling Material:||MGO Board/gypsum Board|
|Use:||Hotel, House, Office, Shop, Villa, Workshop,Plant, Other||Color:||Option|
Personalized light steel structure Prefab luxury villa Homes Earthquake - Proof Australia standard Chinese style
|Name||Chinese style holiday villa house||Application||for living ,for rent , for holiday|
|Color||according to customer’s request||Feature||1.U.K engineer approved;
2.Earthquake,cyclone and fire proof;
|Material||light steel frame and other parts materials||Certificate||CE,ISO,SAA,ETC|
installation process is as simple as 16 easy to follow steps :
1. house design 2.frame production 3.frame assembling 4.frames storage 5.frames transportation
6.frames on site 7.foundation 8.ground floor assemble 9.joint frame assembly 10.2F flooring installation
11. 2F frame installation 12.Trusses installation 13.roofing installation 14.exterior wall installation 15.interior wall installation 16.interior decoration

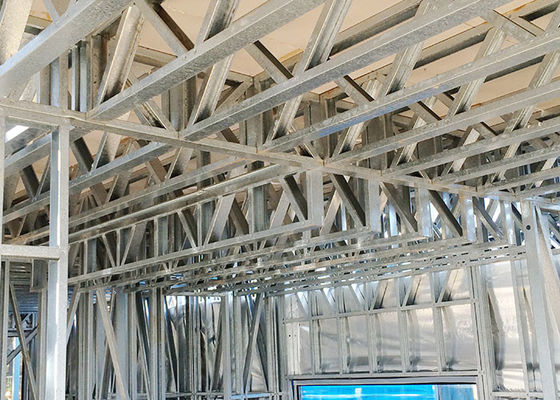

The advantage of the light steel structure :
1) Lifetime for structure: 100 years.
2) Earthquake resistance: mix more than 8 grades.
3) Wind resistance: max 60m/s.
4) Fire resistance: all the materials used can be fire resistance.
5) Snow resistance: max 2.9KN/m²as required
6) Heat insulation: 100 mm in thickness can match 1 m thickness of brick wall.
7) High acoustic insulation: 60db of exterior wall 40db of interior wall
8) Insect prevention: free from the damages by insects, such as white ants
9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorate materials.
11) Installation: the average is one worker one day install one SQM.
12) Installation guide: dispatch engineer to guide on site.
Design code :
1) AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
2) AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
3) BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.
4) ENV1993-1-3 means Euro code 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
We frame it.
DEEPBLUE uses state-of-the-art computer aided design with cold form steel production. We create engineered steel frame designs which are sent to the roll-forming machine to press, cut and panelise. The process is clinical, fast and virtually waste free.
You finish it.
The steel frames are shipped as panels across the world. With a foundation to anchor them on, a completed frame is typically assembled and anchored in a day, leaving you with a stronger, lighter frame that puts time back into your build.
