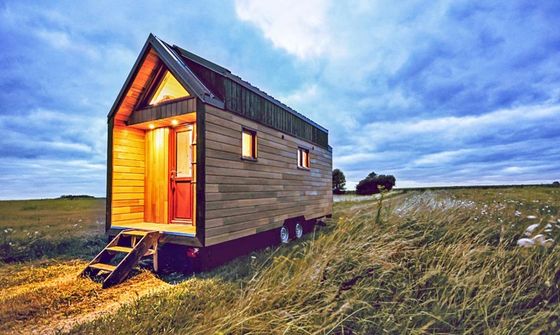

Light Gauge Steel Structure Prefabricated Small Homes Full Kitchen With Stove

Light Gauge Steel Structure Prefabricated Small Homes Full Kitchen With Stove


 1 bedroom     1 bathroom 1 living room    26.42m²

Forget the city stress, why not stay in a jungle! We have the perfect place for the family or country experience.
ODESSY is very functional and well thought out. All the amenities of home, but in a more condensed version.
Full kitchen with stove, and pentrough. Dinette table for nice dinners or excellent work space with lots of
natural light. The sofa is large and comfortable and makes for excellent TV and movie watching. The
bathroom is petite but has everything you need, a stand-up shower with hot water and a separate toilet. All of
this in a very styled out finish!




Floor plan

• Total area: 29 m²

External size:2.35 m×7.4m

Internal size:2.08 m×6.48m

Total weight:<3.5 tons

Highly:<4 m

Introduce: sofa, bed, bath

Use: homestay hotel, garden studio, workroom

• Activity:2150×2090

Bath:860×2100

Bed:2150×2790


Why Choose Light Gauge Steel Structure?
1) Lifetime for structure: 100 years.
2) Earthquake resistance: mix more than 8 grades.
3) Wind resistance:max 60m/s.
4) Fire resistance: all the materials used can be fire-resistant.
5) Snow resistance: max 2.9KN/m²as required
6) Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7) High acoustic insulation:60db of exterior wall 40db of interior wall
8) Insect prevention: Free from the damages by insects, such as white ants
9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11) Installation: the average is one worker one day install one SQM.
12) Installation guide: dispatch engineer to guide on site.
Design code:
(1) AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2) AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3) BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4) ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
If You Need: prefabricated kit home; prefab kit home. steel structure homes.steel frame house
Only Need You To Provide Us: house area, how many floor and bedrooms, luxury or normally, or low-cost configuation.



Packaging & Shipping

Granny Flat's packing: well-packed export quality package, shipped by 40hq.
