Customized 2-Stoery Villa Light Steel House Prefab Modular House USA Standard
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| External Wall | 100 Or 50 Mm ALC Panel/WPC Board/fiber Cement | Frame Material | 0.75 Mm/0.95 Mm/1.15 Mm Steel Frame With AZ150 Zinc Coating |
|---|---|---|---|
| Ceiling Material | MGO Board/ Gypsum Board+others | Insulation | Glass Wool/EPS/XPS/PU Sandwich Panel |
| Roofing | EPS Sandwich Panel/steel Roofing/asphalt | Floor | Laminate/wooden/tile |
| Highlight | contemporary modular homes,steel frame houses |
||
Product Description
Customized 2-Stoery Villa Light Steel House Prefab Modular House USA Standard
The floor plan:
| MEASUREMENTS | ||
| Ground Floor | 9.8sq | 91.0㎡ |
| First Floor | 11.7sq | 108.9㎡ |
| Garage | 3.7sq | 34.6㎡ |
| Outdoor Living | 2.5sq | 22.7㎡ |
| Porch | 0.4sq | 3.4sq |
| Total Area | 28.0sq | 260.5㎡ |
| Minimum Lot Width | 10.0m | |
| Home Length | 20.6m | |
| Home Width | 8.3m |
|
Description:

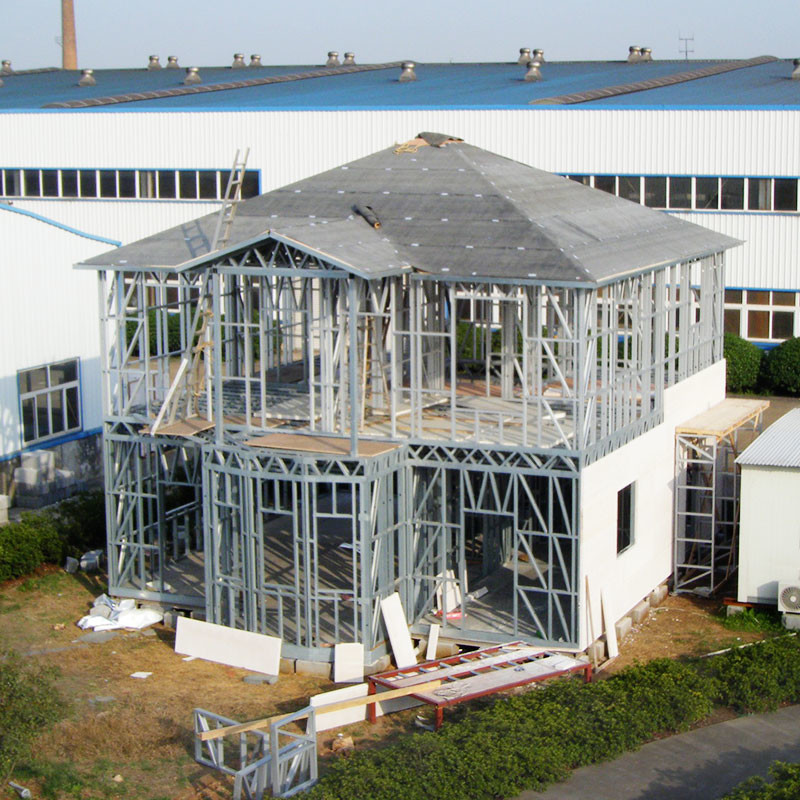

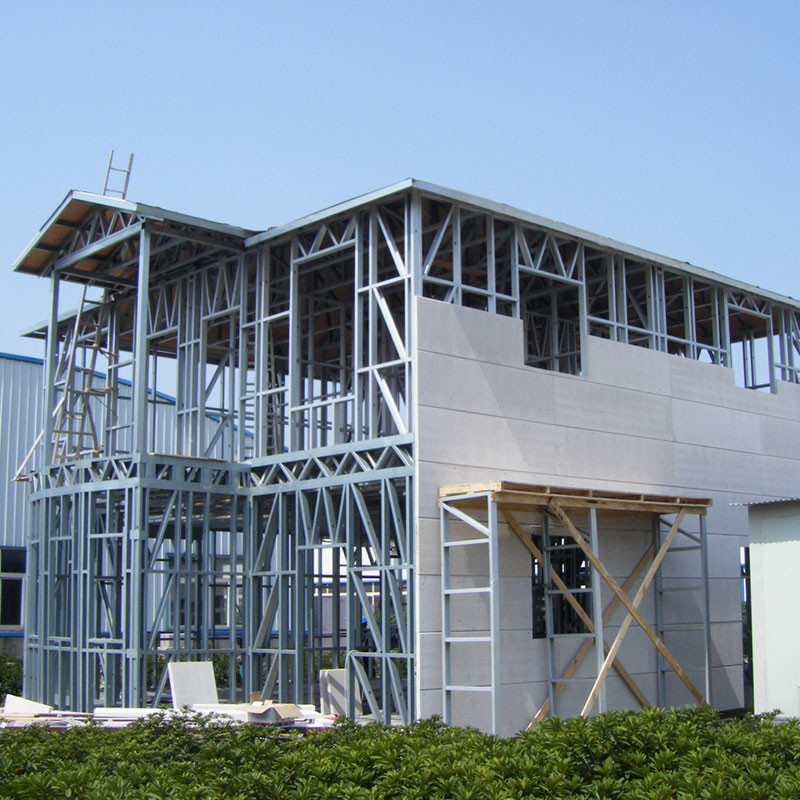

Main structure: Light Gauge Steel.
Wall material: ALC panel/fiber cement cladding+MGO board/gypsum board.
Insulation material: glass wool/EPS/XPS/PU sandwich panel.
Ceiling material: MGO board/gypsum board.
Floor/foundation material: laminate flooring/wooden/PVC carpet.
Door: steel security door/WPC or plywood door.
Window: aluminum alloy/PVC.
Roofing: EPS sandwich panel/steel roofing/asphalt shingle.
Other fittings: toilet, washbasin, shower, kitchen, etc.
Lifetime: 100 years for structure.
Why Choose Light Gauge Steel Structure?
1) Lifetime for structure: 100 years.
2) Earthquake resistance: mix more than 8 grades.
3) Wind resistance: max 60m/s.
4) Fire resistance: all the materials used can be fire resistance.
5) Snow resistance: max 2.9KN/m²as required
6) Heat insulation: 100 mm in thickness can match 1 m thickness of the brick wall.
7) High acoustic insulation: 60db of exterior wall 40db of interior wall
8) Insect prevention: Free from the damages by insects, such as white ants
9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11) Installation: the average is one worker one day install one SQM.
12) Installation guide: dispatch engineer to guide on site.
Our Services:
If You Need: prefabricated kit home; prefab kit home. steel structure homes.steel frame house
Only Need You To Provide Us: house area, how many floors and bedrooms, luxury or normally, or low-cost configuration.
We Can Provide You: villa; bungalow; low-cost house; granny flat; apartment etc.many style house.
