Uropean Modular Home Prefabricated Tiny Homes On Wheels Ready To Ship Built By DeepBlue Smarthouse

Uropean Modular Home Prefabricated Tiny Homes On Wheels Ready To Ship Built By DeepBlue Smarthouse

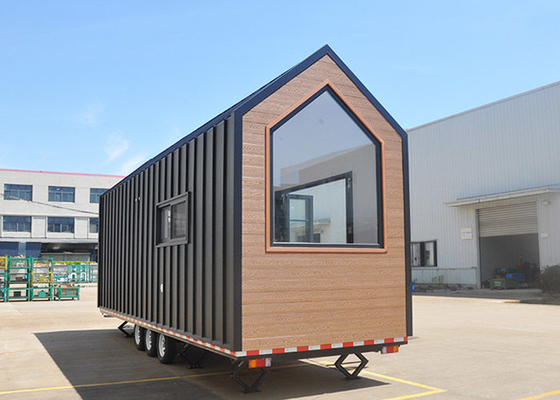

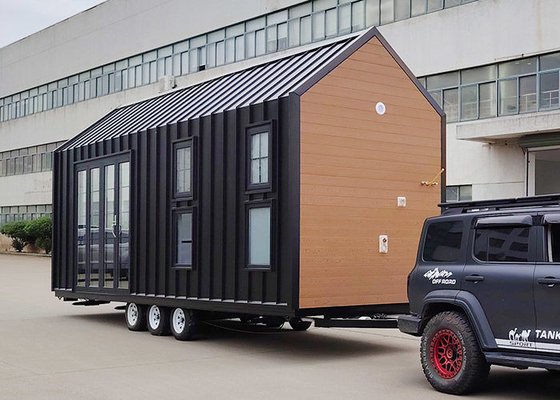

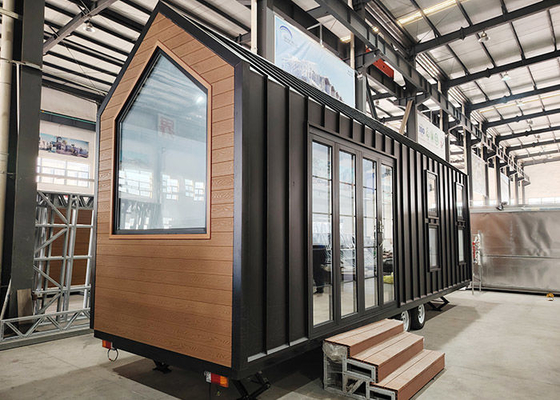

Queensland Tiny House on wheels

1 bedroom 1 bathroom 1 Kitchen 1Living  18.8m²

Measuring 2.35 by 8 meters, this Tiny House is designed to cater to outdoor enthusiasts who crave the freedom of mobile living. Its well-thought-out layout includes a kitchen, a cozy living area, a private bedroom, and a convenient bathroom, making it perfect for two occupants.

Materials:

DEEPBLUE SMARTHOUSE prides itself on using high-quality building materials to ensure durability and comfort. Here's a glimpse at some of the materials used:

Steel Frame Wall/Roof Truss: Crafted with AS1397 G550 AZ150 0.75mm steel frame, providing structural integrity and strength.
Insulation: Featuring R2.5 Glass Wool for walls and R3.5 Glass Wool for the roof, ensuring optimal thermal comfort.
Roofing System: Equipped with Al-Mg-Mn Metal Cladding and WPC cladding, combining durability with aesthetics.
Ceiling: Enhanced with 8mm Integrated Wall Panel, offering a sleek and modern finish.
External Wall System: Options include 14mm Pre-painted PU or 0.8mm Al-Mg-Mn Metal Cladding, or personalized materials based on preference.
Internal Wall System: Featuring 8mm Integrated Wall Panel and 80mm plywood skirting for dry areas.
Floor System: Utilizing 15mm CFC sheeting, 10mm MDF flooring for dry areas, and 4.5mm SPC flooring for wet areas, ensuring both comfort and durability.
Windows & External Doors: Australian standard Aluminum Double Glass Windows & Doors for security, energy efficiency, and ample natural light.
The Queensland Tiny House On Wheels embodies the spirit of freedom and adventure, offering a cozy retreat for those who embrace the great outdoors. With its thoughtful design and top-notch construction, it's the perfect companion for your outdoor travel escapades.

Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Deepblue Smarthouse is a leading Chinese company that specializes in designing and constructing prefab homes using light steel frame technology. Our comprehensive end-to-end building services cover everything from design and engineering to manufacturing,sourcing kitset of materials for whole buildings, and related services. As a one-stop solution provider, we are committed to delivering efficient, sustainable, and cost-effective building solutions for our clients, including housing developers, builders, and owner-builders.

Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.

Your first choice, Deepblue Prefabrica

Product Description:

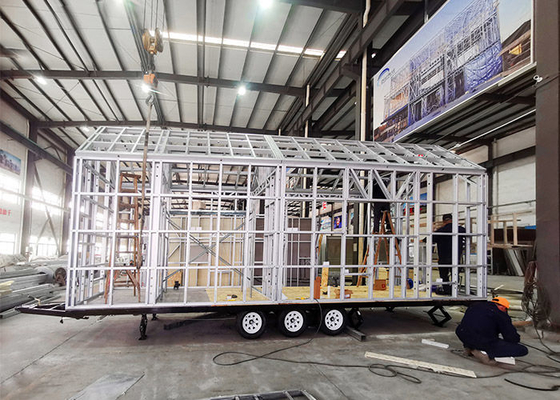

DeepBlue earthquake proof prefabricated bungalow is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers.
the materials are the following:

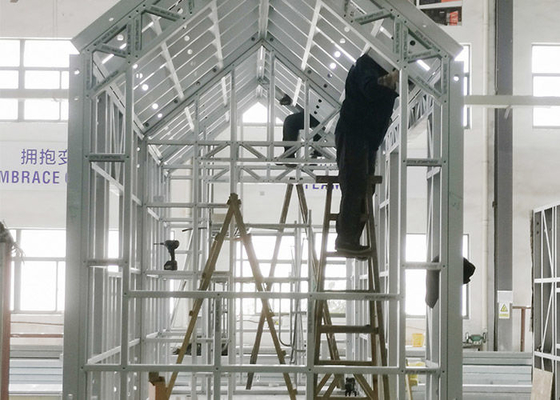

1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard.
the structure can be design to resist 50m/s wind and 9degree earthquake.
2. Roof structure: 89mm light gauge steel truss system.
3. Chassis: 89mm light gauge steel flooring chassis
4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, Pvc carpet, etc.
5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration
6. interior lining: 9m fiber cement board, water-proof, termite-proof, security and healthy
7. ceiling: 8mm Pvc ceiling panel
8. insulation: 89mm glass wool insulation with good soundproof performance.
9.windows: PVC sliding windows
10.exterior door: high-quality aluminum sliding windows
11.interior door: painted wood door
12.bathroom: shower, washbasin, toilet included
13. roofing: corrugated steel roofing with the gutter system
14. veranda deck: W.P.C veranda flooring.


Specifications:
ISO standard steel structure house .one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance. green, energy-saving. economically.



Resistant to various weather conditions, due to its light gauge steel framing system, DeepBlue Mobile Homes can resist winds up to 50m/s, 50cm snow loads as well withstand earthquakes due to its special steel structure technology.
The DeepBlue Mobile Houses manufacturing technology is truly a mature product characterized by flexibility and innovative design and solution.
