USA / AU / NZ Standard Modular Home Prefab Tiny House Kit With Trailer For Camping / Resort

USA/AU/NZ Standard Modular Home Prefab Tiny House Kit With Trailer For Camping/Resort

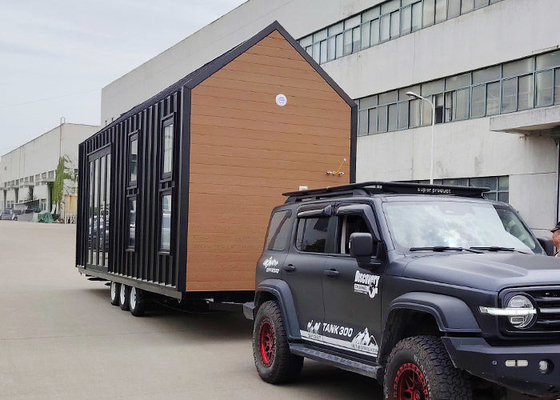

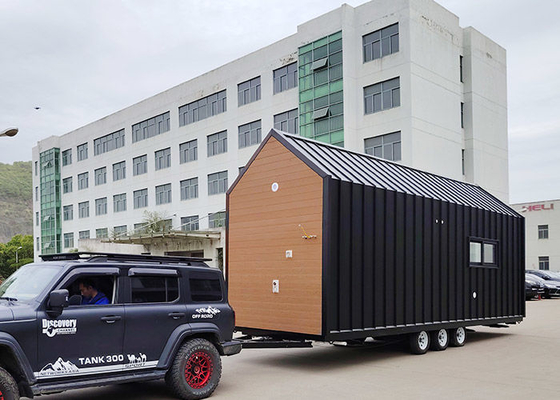

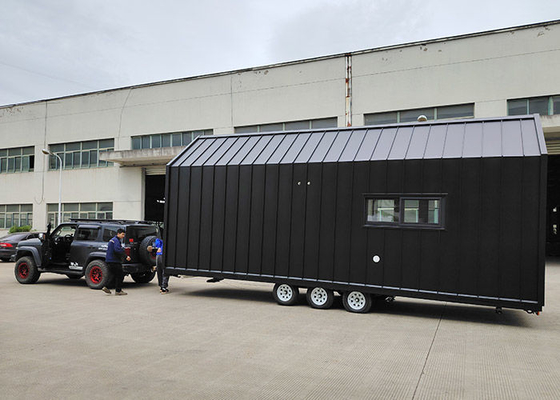

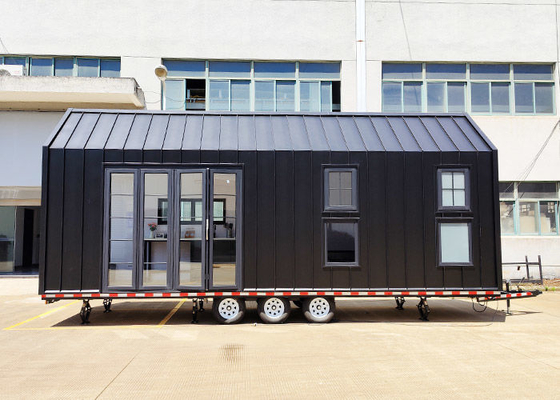

Queensland Tiny House on wheels

1 bedroom 1 bathroom 1 Kitchen 1Living  18.8m²

Measuring at 2.35 by 8 meters, this Tiny House comes equipped with everything you need for a comfortable journey. Upon delivery, the deck and other amenities seamlessly integrate with the Tiny House, creating a serene outdoor space.

The main steel structure system features AS1397 G550 AZ150 0.75mm steel frame walls and roof trusses, providing a sturdy foundation for your travels.

With insulation rated at R2.5 for walls and R3.5 for the roof, you can rest assured that your Tiny House will remain cozy in any climate.

The roofing system boasts Al-Mg-Mn metal cladding and WPC cladding, offering both durability and style. Inside, the ceiling is adorned with 8mm integrated wall panels, providing a sleek and modern finish.

The external wall system features a combination of materials, including 14mm pre-painted PU, 0.8mm Al-Mg-Mn metal cladding, or materials of your preference, tailored to your tastes.

For the internal walls, 8mm integrated wall panels and 80mm plywood skirting in dry areas ensure both functionality and aesthetics. The floor system is equally versatile, with 15mm CFC sheeting in dry areas and 10mm MDF flooring in wet areas, providing comfort and practicality wherever you roam.

Windows and external doors are Australian standard aluminum double glass, ensuring both security and energy efficiency, while allowing ample natural light to flood the interior.

Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Deepblue Smarthouse is a leading Chinese company that specializes in designing and constructing prefab homes using light steel frame technology. Our comprehensive end-to-end building services cover everything from design and engineering to manufacturing,sourcing kitset of materials for whole buildings, and related services. As a one-stop solution provider, we are committed to delivering efficient, sustainable, and cost-effective building solutions for our clients, including housing developers, builders, and owner-builders.

DEEPBLUE SMARTHOUSE boasts its own manufacturing facility, skilled technical craftsmen, and dedicated design team, ensuring top-notch product quality. Our state-of-the-art factory is equipped with advanced machinery and adheres to stringent quality control measures at every step of the production process.

Specifications:

Resistant to various weather conditions, due to its light gauge steel framing system, DeepBlue Mobile Homes can resist winds up to 50m/s, 50cm snow loads as well withstand earthquakes due to its special steel structure technology.
The DeepBlue Mobile Houses manufacturing technology is truly a mature product characterized by flexibility and innovative design and solution.
