AU / NZ Standard Light Steel Structure Tiny House With Trailer On Wheels For Camping

AU/NZ Standard Light Steel Structure Tiny House With Trailer On Wheels For Camping

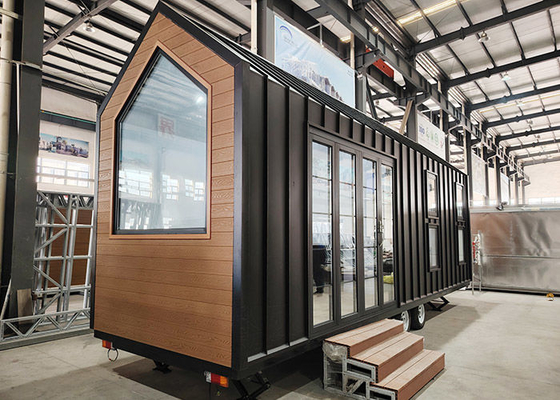

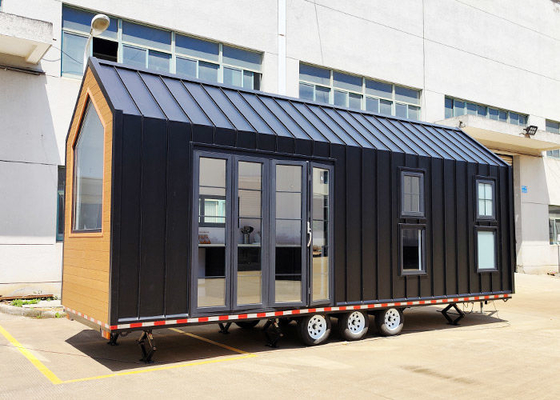

Queensland Tiny House on wheels

1 bedroom 1 bathroom 1 Kitchen 1Living  18.8m²

Measuring at 2.35 by 8 meters, this Tiny House comes equipped with everything you need for a comfortable journey. Upon delivery, the deck and other amenities seamlessly integrate with the Tiny House, creating a serene outdoor space.

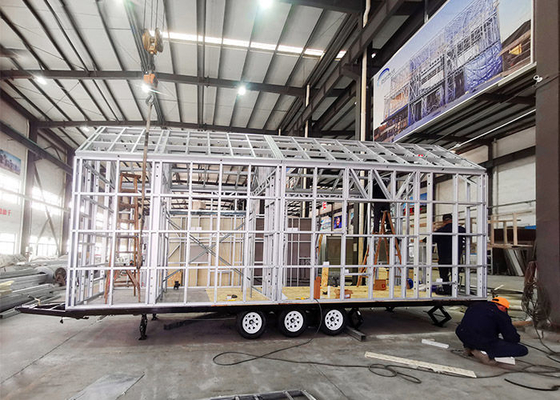

Crafted with precision and durability in mind, the main steel structure system ensures sturdiness and reliability. The steel frame wall and roof truss, featuring AS1397 G550 AZ150 0.75mm steel frame, provide a solid foundation for your travels.

Insulation is paramount, with R2.5 glass wool for walls and R3.5 glass wool for the roof, ensuring optimal temperature regulation regardless of the weather outside.

The roofing system boasts Al-Mg-Mn metal cladding and WPC cladding, offering both durability and style. Inside, the ceiling is adorned with 8mm integrated wall panels, providing a sleek and modern finish.

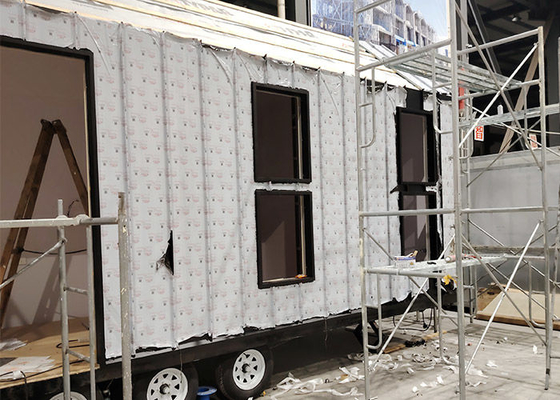

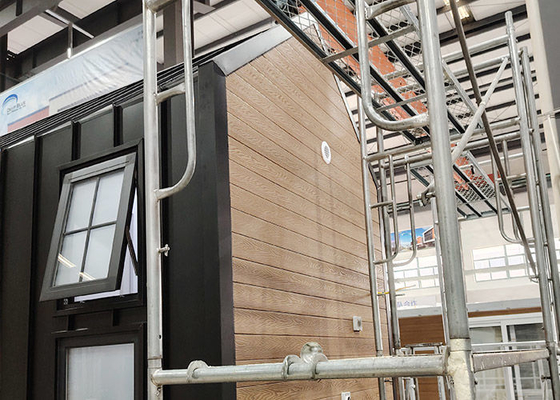

The external wall system features a combination of materials, including 14mm pre-painted PU, 0.8mm Al-Mg-Mn metal cladding, or materials of your preference, tailored to your tastes.

For the internal walls, 8mm integrated wall panels and 80mm plywood skirting in dry areas ensure both functionality and aesthetics. The floor system is equally versatile, with 15mm CFC sheeting in dry areas and 10mm MDF flooring in wet areas, providing comfort and practicality wherever you roam.

Windows and external doors are Australian standard aluminum double glass, ensuring both security and energy efficiency, while allowing ample natural light to flood the interior.

Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.

Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Deepblue Smarthouse is a leading Chinese company that specializes in designing and constructing prefab homes using light steel frame technology. Our comprehensive end-to-end building services cover everything from design and engineering to manufacturing,sourcing kitset of materials for whole buildings, and related services. As a one-stop solution provider, we are committed to delivering efficient, sustainable, and cost-effective building solutions for our clients, including housing developers, builders, and owner-builders.

Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.

Your first choice, Deepblue Prefabrica

Specifications:
ISO standard steel structure house .one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance. green, energy-saving. economically.
