Affordable Light Steel Tiny Homes On Wheels Prefab Cabins For Sale AU/NZ
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Exterior Door | Australian Standard Alum Casment Door | Floor | 15mm Fiber Cement Board |
|---|---|---|---|
| Interior Stair | Steel Frame With Finishing | Length | 7.4m |
| Show | Included | Kitchen Sink | Stainless Steel Single Sink |
| Total Area | 27.1㎡ | Usage | Holiday/resort |
| High Light | Light Steel Tiny Homes On Wheels,Tiny Prefab Cabins |
||
Product Description

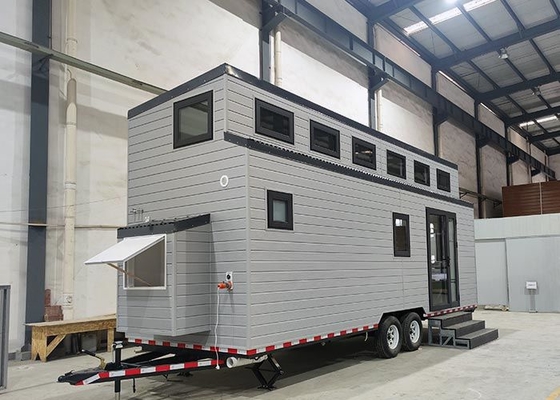

Affordable Light Steel Tiny Homes On Wheels: Prefab Cabins For Sale AU/NZ
Cider Box
2 bedroom 1 bathroom 1 Kitchen 27.58 m²

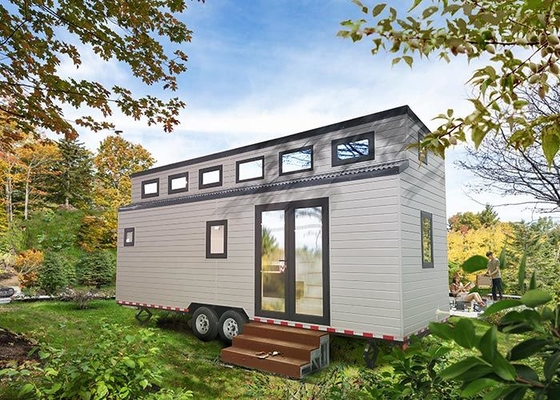

The CIDER BOX TINY HOUSE is not only a beautiful and functional living space but also eco-friendly. It is built with sustainable and durable materials, including a steel frame and metal PU sandwich panel wall. These materials not only make the tiny house more sturdy and long-lasting but also energy-efficient and eco-friendly.
| Name: | Cider Box Tiny House |
| Total area: | 27.58㎡ |
| External size: | 2.35*7.4m |
| Internal size: | 2.08*7.05m |
| Total weight: | 3.5 tons |
| Hight: |
＜4m
|
The external size of the CIDER BOX TINY HOUSE measures 2.35*7.4m. This makes it spacious enough to comfortably accommodate two separate sleeping lofts, a full kitchen, and space for laundry. Despite its generous dimensions, the CIDER BOX TINY HOUSE is designed to be easily transportable, with a total weight of 3.5 tons and a height of less than 4m.
Furthermore, the CIDER BOX TINY HOUSE is designed to be mobile and can be easily towed by a vehicle. This means that homeowners can take their home with them wherever they go and enjoy the freedom and flexibility of a mobile lifestyle. Whether it's a weekend getaway, a road trip, or a permanent home, the CIDER BOX TINY HOUSE offers a comfortable and stylish living solution for those seeking a simpler way of life.

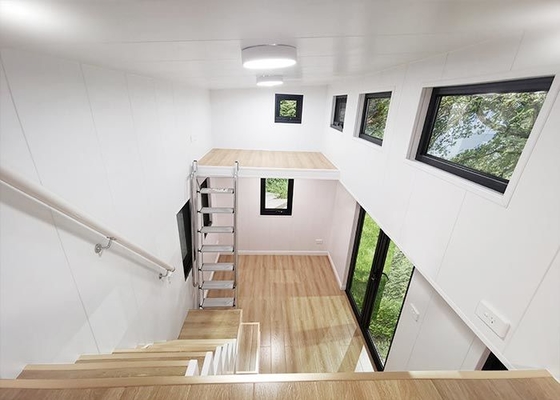

In addition to its eco-friendly and mobile features, the CIDER BOX TINY HOUSE also boasts a sleek and modern design. While the full glass doors and clerestory windows bring in plenty of natural light and provide stunning views of the surrounding landscape.
Overall, the CIDER BOX TINY HOUSE is a perfect blend of luxury, functionality, and sustainability, making it an ideal living solution for those who value a comfortable and eco-conscious lifestyle. Whether you're a couple looking for a romantic retreat or a small family seeking a cozy and stylish home, the CIDER BOX TINY HOUSE offers everything you need and more.
Basic Details:

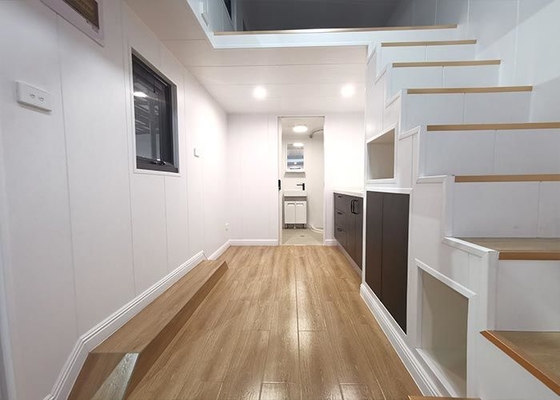

The tiny house is equipped with a living room/kitchen/bedroom/bathroom.etc
Include:
| Trailer | |
| Roofing | 0.5mm colorbond sheet |
| External wall | metal PU sandwich panel |
| Internal wall | integrated wall panel |
| Flooring | laminated flooring |
| Kitchen | standard kitchen(cabinet, stone benchtop, sink, faucet) |

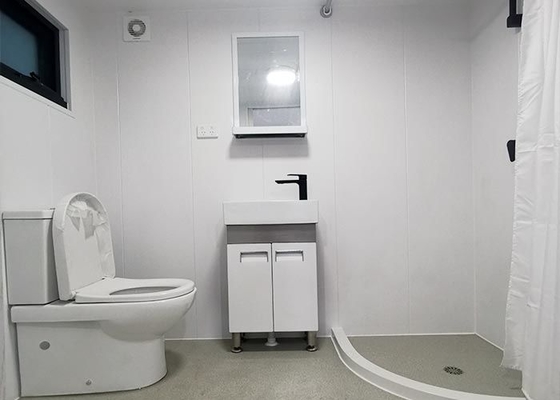

| Bathroom | show, toilet, washbasin |
| Length | 7.4m |
| Width | 2.35m |
| Highly | <4m |
| Weight | <=3.5T |
| Window and doors | glass alu. window and laminated door |
| Electrical and plumbing system |
Applications:
Hotel, House, Office, etc.
DeepBlue SmartHouse takes pride in their commitment to delivering high-quality, innovative, and sustainable housing solutions. By combining cutting-edge design with eco-friendly materials and construction techniques, they have created the Tiny House as an energy-efficient and environmentally conscious living space.
Why Choose Light Gauge Steel Structure?
1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.
Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
Deepblue Smarthouse is a leading Chinese company that specializes in designing and constructing prefab homes using light steel frame technology. Our comprehensive end-to-end building services cover everything from design and engineering to manufacturing,sourcing kitset of materials for whole buildings, and related services. As a one-stop solution provider, we are committed to delivering efficient, sustainable, and cost-effective building solutions for our clients, including housing developers, builders, and owner-builders.
Light steel frame technology is gaining popularity for its many advantages, such as faster construction times, greater energy efficiency, and better durability in extreme weather conditions. At Deepblue Smarthouse, we understand the importance of quality and sustainability in the building process, and we strive to use eco-friendly materials and processes in all our projects.
Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.
Your first choice, Deepblue Prefabrica
Product Description:
DeepBlue earthquake proof prefabricated bungalow is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers.
the materials are the following:
1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard.
the structure can be design to resist 50m/s wind and 9degree earthquake.
2. Roof structure: 89mm light gauge steel truss system.
3. Chassis: 89mm light gauge steel flooring chassis
4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, Pvc carpet, etc.
5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration
6. interior lining: 9m fiber cement board, water-proof, termite-proof, security and healthy
7. ceiling: 8mm Pvc ceiling panel
8. insulation: 89mm glass wool insulation with good soundproof performance.
9.windows: PVC sliding windows
10.exterior door: high-quality aluminum sliding windows
11.interior door: painted wood door
12.bathroom: shower, washbasin, toilet included
13. roofing: corrugated steel roofing with the gutter system
14. veranda deck: W.P.C veranda flooring.
Specifications:
ISO standard steel structure house .one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance. green, energy-saving. economically.
