Modular Prefabricated Light Steel Structure Innovative Design Tiny House On Wheels
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Light Steel Structure | AS1397 G550 Z275 0.75/0.95mm Roof Truss | Exterior Wall Cladding | 50mm ALC Panel |
|---|---|---|---|
| Interior Wall Panel | Galvanized Steel & PU Sandwich Decorated Panel | Windows | Australian Standard Double Glass Alu. Awning Windows |
| Door | Australian Standard Alum. Sliding Door | Kitchen | Cabinet,Kitchen |
| High Light | Light Steel Structure Modular Tiny Homes,Modular Tiny House On Wheels,Premade Tiny House On Wheels |
||
Product Description
Modular Prefabricated Light Steel Structure Innovative Design Tiny House On Whee
Cider Box

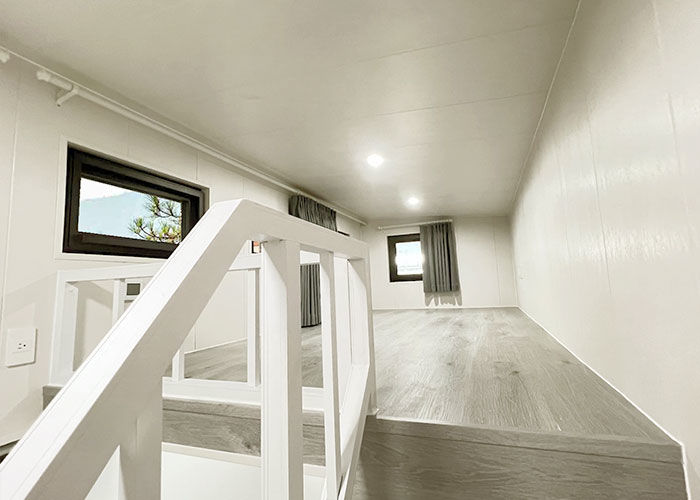

2 bedroom 1 bathroom 1 Kitchen 27.58 m²The Cider Box Tiny House is meticulously designed with couples and small families in mind, offering a well-thought-out layout that maximizes every corner of its 27.58㎡ space. One of its standout features is the incorporation of two separate sleeping lofts, ensuring privacy and comfort for its occupants. Whether seeking a restful sleep or a tranquil retreat, these lofts provide ideal sanctuaries for relaxation.
The kitchen is fully equipped to deliver delightful culinary experiences, catering to a range of needs. Whether you're crafting gourmet dishes or enjoying casual meals, this kitchen is a haven where culinary aspirations come to life.

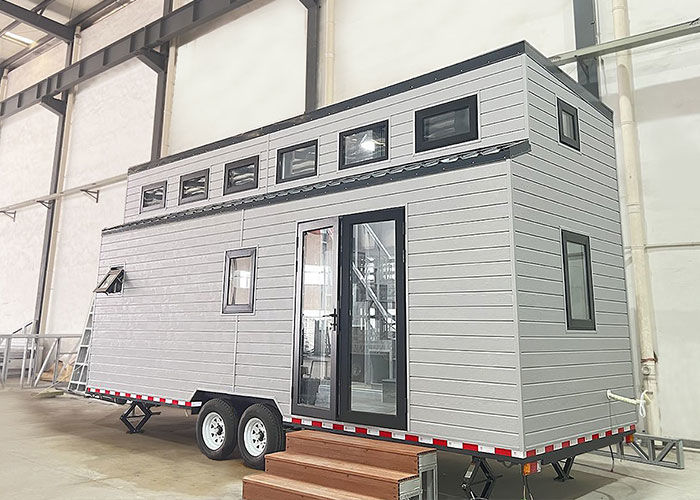

Distinguishing itself with a unique "double shed" roofline, the Cider Box Tiny House boasts an appealing exterior aesthetic. This design not only sets it apart but also allows ample natural light to flood in through strategically positioned clerestory windows and full glass doors. This interplay of light infuses the interiors with warmth and radiance, establishing a welcoming atmosphere that embraces you.
| Name: | Cider Box Tiny House |
| Total area: | 27.58㎡ |
| External size: | 2.35*7.4m |
| Internal size: | 2.08*7.05m |
| Total weight: | 3.5 tons |
| Hight: | ＜4m |
Let's explore the specifications of the Cider Box Tiny House:
Name: Cider Box Tiny House
Total area: 27.58㎡
External size: 2.35 x 7.4m
Internal size: 2.08 x 7.05m
Total weight: 3.5 tons
Height: Less than 4m

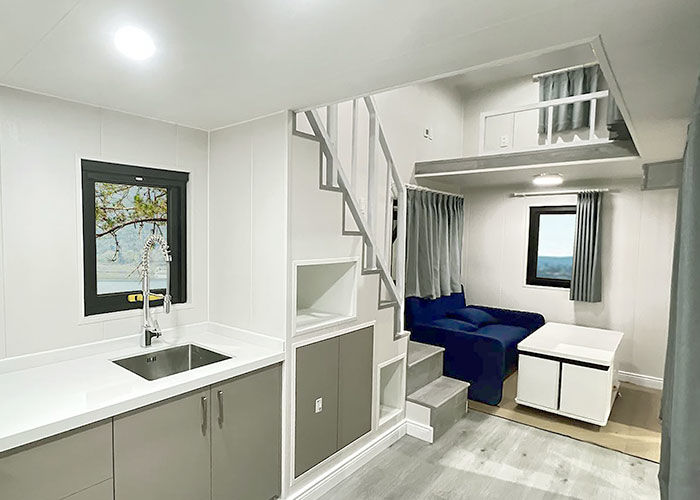

Access to the main loft is effortless thanks to cleverly designed stairs that double as storage compartments, maximizing the available space. With external dimensions measuring 2.35 x 7.4m and internal dimensions of 2.08 x 7.05m, the Cider Box Tiny House achieves an ideal balance between compactness and spaciousness, rendering it an excellent choice for various locations and lifestyles.
Weighing a mere 3.5 tons and standing at a height of under 4 meters, this tiny home is effortlessly transportable and export-friendly. DeepBlue SmartHouse, a pioneering industry supplier, ensures that the Cider Box Tiny House adheres to the highest standards of quality, safety, and aesthetics.
DeepBlue SmartHouse is dedicated to providing high-quality, innovative, and sustainable housing solutions. Their integration of cutting-edge design with eco-friendly materials and construction techniques results in the Tiny House—a dwelling that embodies energy efficiency and environmental mindfulness.
BASIC SHELL:
The tiny house is equipped with a living room/kitchen/bedroom/bathroom.etc

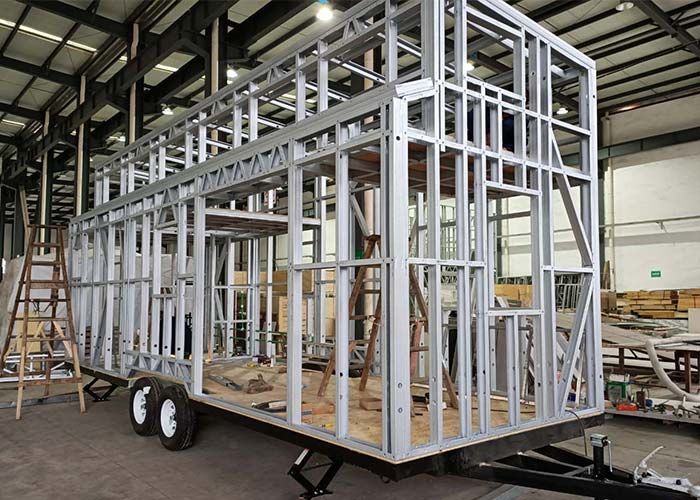

Light Gauge Steel Structure :
1) Lifetime for structure: 100 years.
2) Earthquake resistance: mix more than 8 grades.
3) Wind resistance: max 60m/s.
4) Fire resistance: all the materials used can be fire-resistant.
5) Snow resistance: max 2.9KN/m²as required
6) Heat insulation: 100 mm in thickness can match 1 m thickness of the brick wall.
7) High acoustic insulation: 60db of exterior wall 40db of interior wall
8) Insect prevention: Free from the damages by insects, such as white ants
9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11) Installation: the average is one worker one day install one SQM.
12) Installation guide: dispatch engineer to guide on site.
DeepBlue SmartHouse takes pride in their commitment to delivering high-quality, innovative, and sustainable housing solutions. By combining cutting-edge design with eco-friendly materials and construction techniques, they have created the Tiny House as an energy-efficient and environmentally conscious living space.
Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
Deepblue Smarthouse is a leading Chinese company that specializes in designing and constructing prefab homes using light steel frame technology. Our comprehensive end-to-end building services cover everything from design and engineering to manufacturing,sourcing kitset of materials for whole buildings, and related services. As a one-stop solution provider, we are committed to delivering efficient, sustainable, and cost-effective building solutions for our clients, including housing developers, builders, and owner-builders.
Light steel frame technology is gaining popularity for its many advantages, such as faster construction times, greater energy efficiency, and better durability in extreme weather conditions. At Deepblue Smarthouse, we understand the importance of quality and sustainability in the building process, and we strive to use eco-friendly materials and processes in all our projects.
Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.
About us:
We supply and design tiny houses. Whether you are after a spare bedroom for guests, a home to live in, or maybe
an office space, we can help you, our homes are sure to impress you.
Based in China, we are Deepblue smart house, specialized in prefab house with years of experience.
Your first choice, Deepblue Prefabrica
