New Zealand Standard Single Storey Light Steel Frame Prefab Villa For Family

New Zealand Standard Single Storey Light Steel Frame Prefab Villa For Family

Weka House

3 bedrooms 2 bathrooms 1 living room 218.76 m²

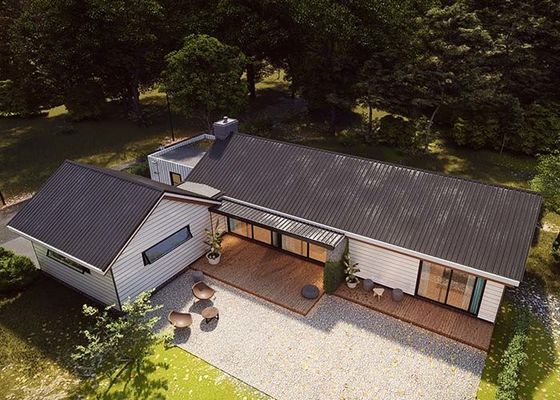

This is a single-story villa with an area of 219 ㎡ built by DEEPBLUE in a small town in New Zealand in 2021. The owner of the house stresses simplicity and utility with an overall L-shape.

In front of the door is a garage that can hold two cars. The first thing one can see when they come into the house is the living room and then the open kitchen. The rooms are distributed on both sides of the house, with their own bathrooms so that they won’t disturb each other.

Quick Detail:

Product parameters:

920# Project in New Zealand

Description:

Main structure: Light Steel

Wall material: ALC panel/fiber cement cladding+MGO board/gypsum board

Insulation material: Insulation material

Structure: Steel Frame

Ceiling material: MGO board/gypsum board

Floor/foundation material: laminate flooring/wooden/PVC carpet

Door: steel security door/WPC or plywood door

Window: aluminum alloy/PVC

Roofing: EPS sandwich panel/steel roofing/asphalt shingle

Other fittings: toilet, washbasin, shower, kitchen, etc.

Lifetime: 100 years of structure



Product Description

DeepBlue steel structural prefab villa is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers. the materials are the following: 1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard. the structure can be design to resist 50m/s wind and 9degree earthquake.

2. Roof structure: 89mm light gauge steel truss system.

3. Chassis: 89mm light gauge steel flooring chassis 4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, PVC carpet, etc. 5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration 6. interior lining: 9m fiber cement board,water-proof,termite-proof, security and healthy

7. ceiling: 8mm PVC ceiling panel

8. insulation: 89mm glass wool insulation with good soundproof performance.

9.windows: PVC sliding windows

10.exterior door: high-quality aluminum sliding windows 11.interior door: painted wood door 12.bathroom: shower, washbasin, toilet included

Company Introduction:

Since establishing the company in 2009, we have been proud of providing cost-effective custom and modular houses, apartments, and commercial buildings to people all over the world. So far, we have built more than 5,000 houses and won many design and construction awards. Today, we build, sell, finance, and lease our buildings from China to all around the world.

We specialize in the design and manufacture light steel frame house, include a light steel frame villa, modular house, apartment, resort, tiny house, etc.

We have a new large-scale processing center and modern production workshop to produce high-quality products in strict accordance with technical specifications and quality control, ensuring the accuracy of our products.
